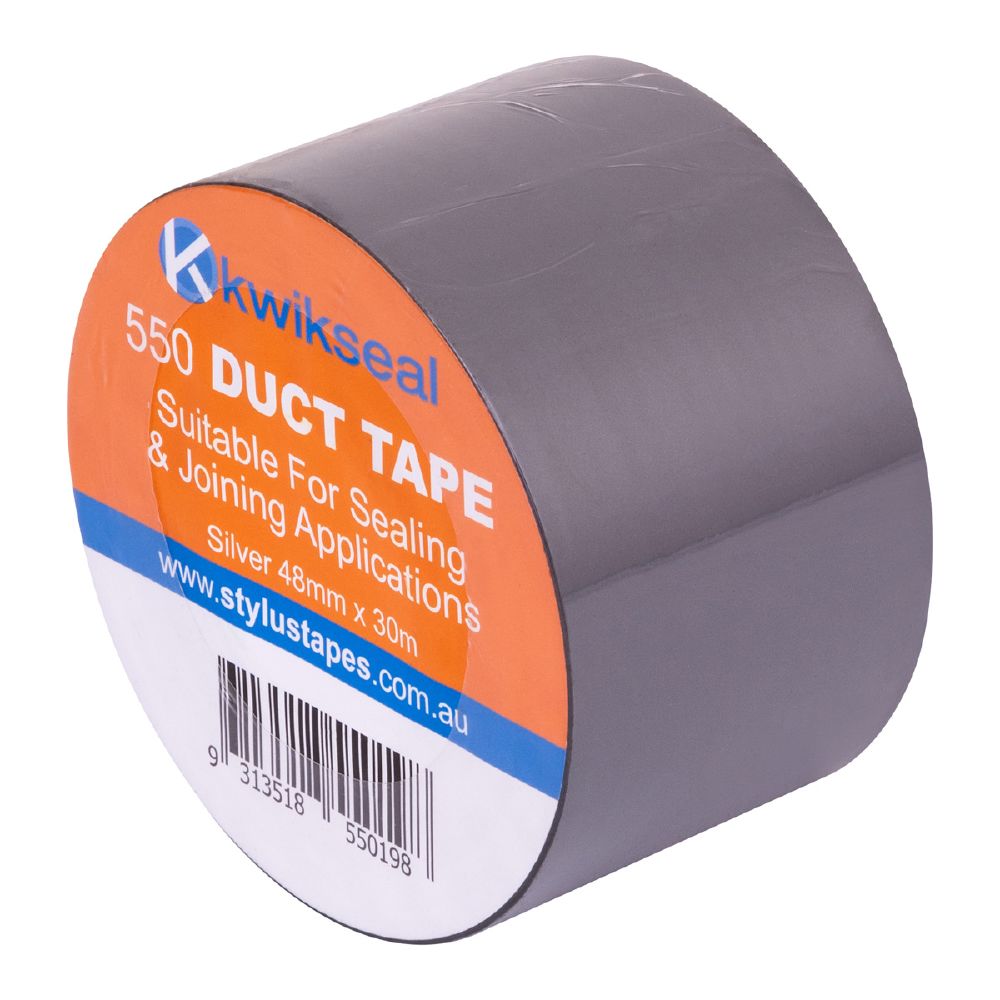

For sealing builders film, joining waffle pods, and securing abatement protection sheets on site, Kwikseal 550 PVC Duct Tape is an economy-grade soft PVC tape built for temporary wrapping, bundling, and patching. It is formulated with a hotmelt adhesive that provides immediate grab on polyethylenes and films under temperate working conditions.
How it works
The tape utilizes a soft PVC backing combined with a hotmelt adhesive. This combination offers high conformability, allowing the tape to stretch over irregular joins in reinforcement mesh films or contoured waffle pods without lifting. Engineered with an easy unwind mechanism, the tape releases smoothly from the roll to prevent over-stretching, which can cause film scrunching and subsequent seal failure. It can be torn by hand for quick application on site, and each roll is individually wrapped to prevent dust and concrete powder contamination before use.
Where to use it
- Sealing and joining of PE films, including heavy-duty builders film
- Short-term joining of waffle pods, abatement protection, and reinforcement mesh films
- Universal bundling, tie-downs, and light-duty wrapping for builders, contractors, and plumbers
- Temporary patching and repairs on non-porous surfaces
Numbers that matter
- 18°C to 40°C temperature resistance: The service window where the hotmelt adhesive remains stable. It is suitable for temporary applications above 18°C.
- 3 to 5 days outdoor rating: The maximum external exposure window before UV degradation affects the backing and adhesive.
- >100% elongation: High elasticity that allows the backing to stretch and conform around profiles without snapping immediately.
- >37.50 N/25mm tensile strength: The mechanical resistance of the soft PVC backing under pulling tension.
- 0.13 ± 0.025 mm total thickness: A thin, light-duty profile suitable for utility sealing and wrapping.
Limitations
- Do not use for permanent installations or applications requiring more than 3 to 5 days of direct outdoor weathering.
- Not suitable for use in service temperatures below 18°C or above 40°C.
- Porous substrates, including wood, concrete, and brick, must be smooth and sealed with an appropriate sealer before application to ensure a reliable bond.
- Do not apply to surfaces contaminated with moisture, chemical residue, dust, concrete powders, sand, soil, grease, wax, or release agents.
Application steps
All surfaces must be clean, dry, and free of contaminants. Prepare non-porous surfaces immediately prior to application using Isopropanol (IPA) with a clean, lint-free cloth. Ensure any painted or sealed surfaces are completely cured before tape application.
Apply the tape when the surface temperature is above 10°C (external heat from a hair dryer or fan heater may be used to warm cold substrates). Avoid finger contact with the adhesive face, as skin oils will reduce bond strength; ensure the portion of tape held by fingers overlaps the target area and is trimmed off. Apply sufficient rub-down pressure across the entire surface of the tape to ensure 100% contact. Full adhesive bond strength develops over a period of a few hours up to 2 to 3 days depending on climatic conditions.
Frequently asked questions
Can Kwikseal 550 be used outdoors long-term?
No, Kwikseal 550 is rated for short-term outdoor use, typically 3 to 5 days. For permanent outdoor applications requiring UV stability, a dedicated UV-stabilised product is necessary.
What surfaces does Kwikseal 550 adhere to best?
Kwikseal 550 performs best on clean, dry, non-porous surfaces such as PE film, PVC, painted metal, and foil insulation. Using an IPA wipe to remove contaminants before application ensures optimal bond strength.
Does the adhesive strength increase after application?
Yes, the hotmelt adhesive develops full bond strength over 2 to 3 days as it cures into the substrate. While initial tack is high, the final adhesion improves gradually with time and ambient temperature.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Joining plastic sheeting and builder's film | High-tack hotmelt adhesive bonds quickly to PE and PVC for secure seals. | Builders, Waterproofers |
| Pipe lagging and insulation wrap sealing | Flexible 0.13 mm soft PVC conforms to curves, maintaining a tight seal around pipes and ducts. | Plumbers, HVAC Installers |
| Temporary outdoor bundling or patching | Provides 3-5 days of UV/weather resistance for short-term external site requirements. | Site Managers, General Contractors |
| Concrete waffle pod reinforcement | Conforms to edge profiles and resists splitting, protecting polystyrene forms during pours. | Concreters, Formwork Crews |
| General-purpose site repairs and sealing | Tears cleanly by hand, speeding up minor repairs without needing cutting tools. | All Trades |
Applying Kwikseal 550 PVC Duct Tape: Enhanced Protocols & Best Practices
-
Surface Preparation
All bonding surfaces must be clean, dry, and free from dust, oil, and loose materials.
Method 1: Isopropyl Alcohol (IPA) Wipe
Wipe surface thoroughly with IPA on a clean cloth. Let dry completely before applying tape.
Method 2: Warm Surface (if needed)
If ambient temperature is low, gently heat the surface (using a heat gun or hairdryer) to improve adhesion performance.
Timing: Apply within 5 minutes of surface cleaning for best results.Pro Tip: Apply firm pressure across the entire tape surface using a roller or gloved hand to eliminate air pockets and maximise bond strength.
Product limitations
- Not for: Long-term outdoor exposure. Kwikseal 550 offers 3 to 5 days of temporary UV/weather resistance. For permanent exterior applications, a UV-stabilised tape is required.
- Not for: Dusty, oily, or wet surfaces without prior cleaning. Adhesion will be compromised, leading to premature bond failure.
Safety and handling
Personal protective equipment
Wear gloves when handling to avoid adhesive contact. No other special PPE is typically required for tape application under normal conditions.
Ventilation
Use in well-ventilated areas, particularly if using solvents like IPA for surface preparation.
First aid
- Eyes: Flush with clean water for several minutes. Seek medical advice if irritation persists.
- Skin: Wash with soap and water. Remove any adhesive residue with a suitable hand cleaner.
- Inhaled: Not applicable under normal use. Avoid inhaling vapours from cleaning solvents.
- Swallowed: Do not induce vomiting. Seek medical attention immediately.
Storage and disposal
Store in a cool, dry area between 18-22°C, away from direct sunlight and heat sources. Keep away from open flames. Dispose of in accordance with local regulations.
Substrate guide
Proper surface preparation is crucial for Kwikseal 550 to achieve its documented adhesion strength. This guide covers key surfaces.
PE film / Plastic sheeting
Surface prep: Ensure the surface is dry, clean, and free of dust or mould release agents. Wipe down thoroughly with isopropyl alcohol (IPA) to remove surface contamination.
Primer: Not required. Focus on thorough cleaning with IPA for reliable adhesion.
Foil-faced insulation wrap
Surface prep: Remove all dust and condensation to prevent bond compromise. Wipe with IPA and allow the surface to dry completely. For improved initial tack in cold conditions, slightly warm the surface with a heat gun.
Primer: Not required. Cleanliness and dryness are the main factors affecting adhesion on this surface.
Kwikseal 550 PVC Duct Tape Physical Properties
| Property | Value |
|---|---|
| Adhesive Type | Hotmelt |
| Backing Material | Soft PVC |
| Colours | Silver |
| Dimensions | 48 mm x 30 m |
| Total Thickness | 0.13 mm ± 0.025 mm |
| Tensile Strength | > 37.5 N / 25 mm |
| Elongation at Break | > 100% |
| Adhesion to Steel | > 2.0 N / 25 mm |
| Temperature Resistance | 18°C to 40°C (ambient use) |
| Outdoor Rating | 3–5 days temporary exposure |
| Storage Conditions | 18–22°C, dry, no direct sunlight |
| Application Conditions | Surfaces above 10°C; clean, dry, grease-free |
