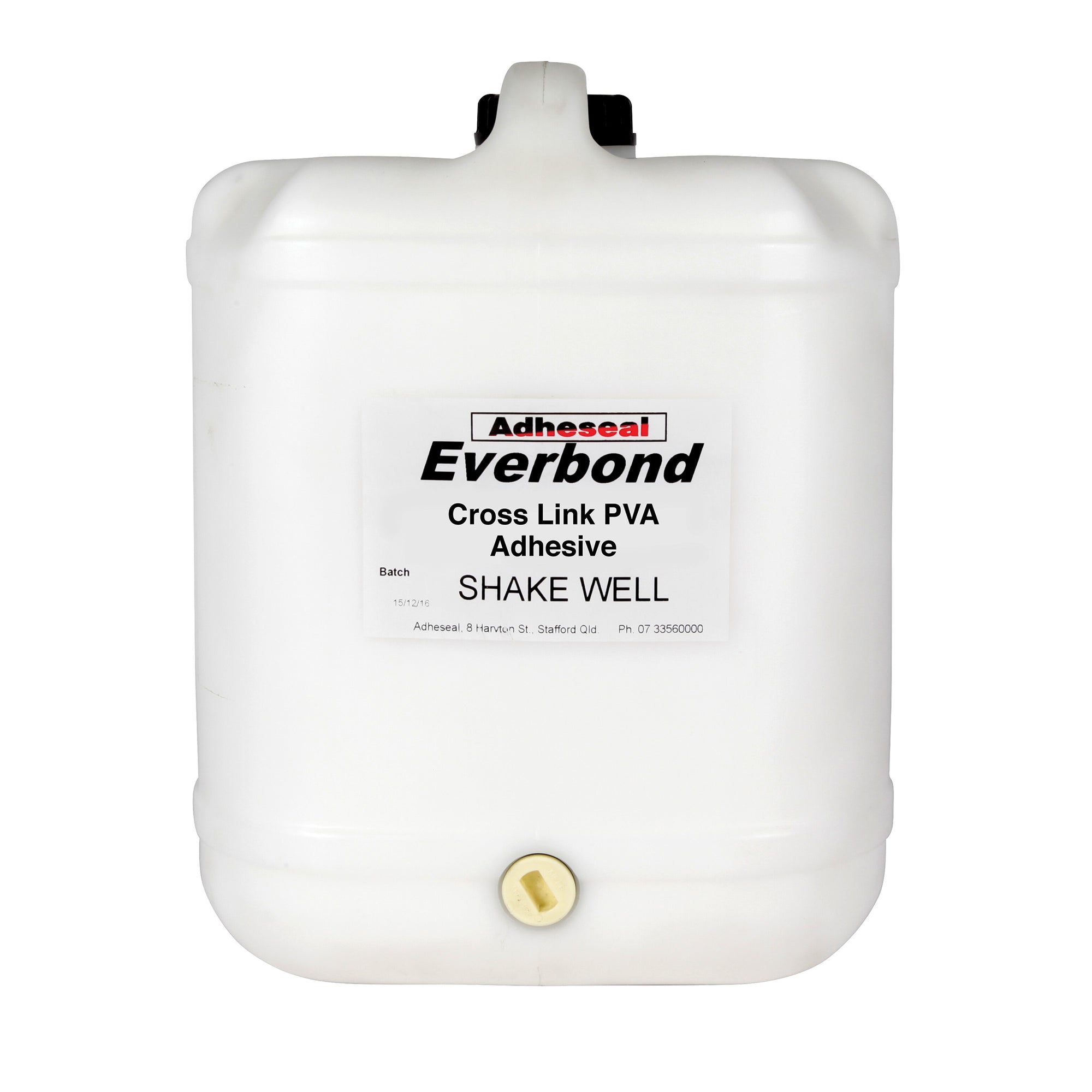

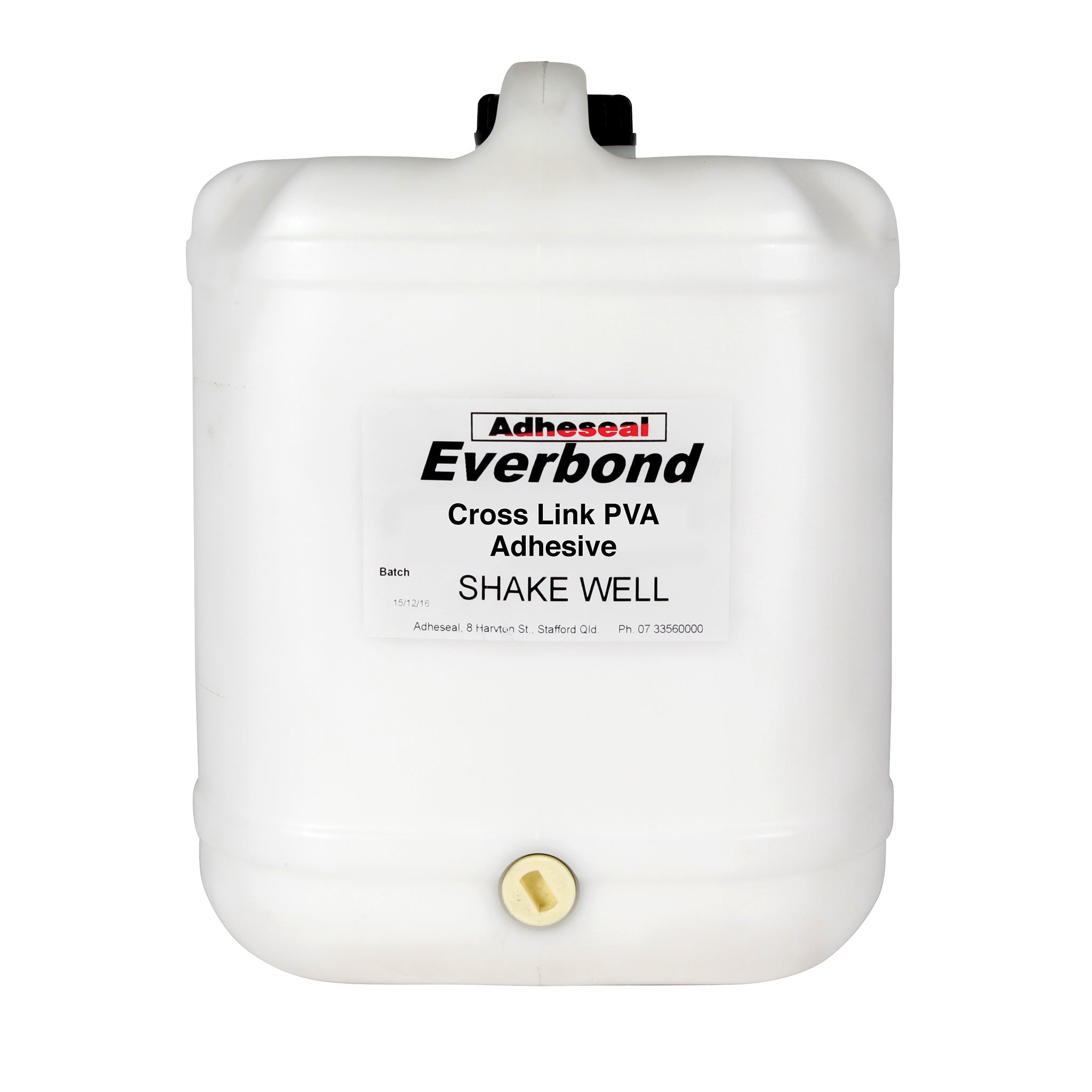

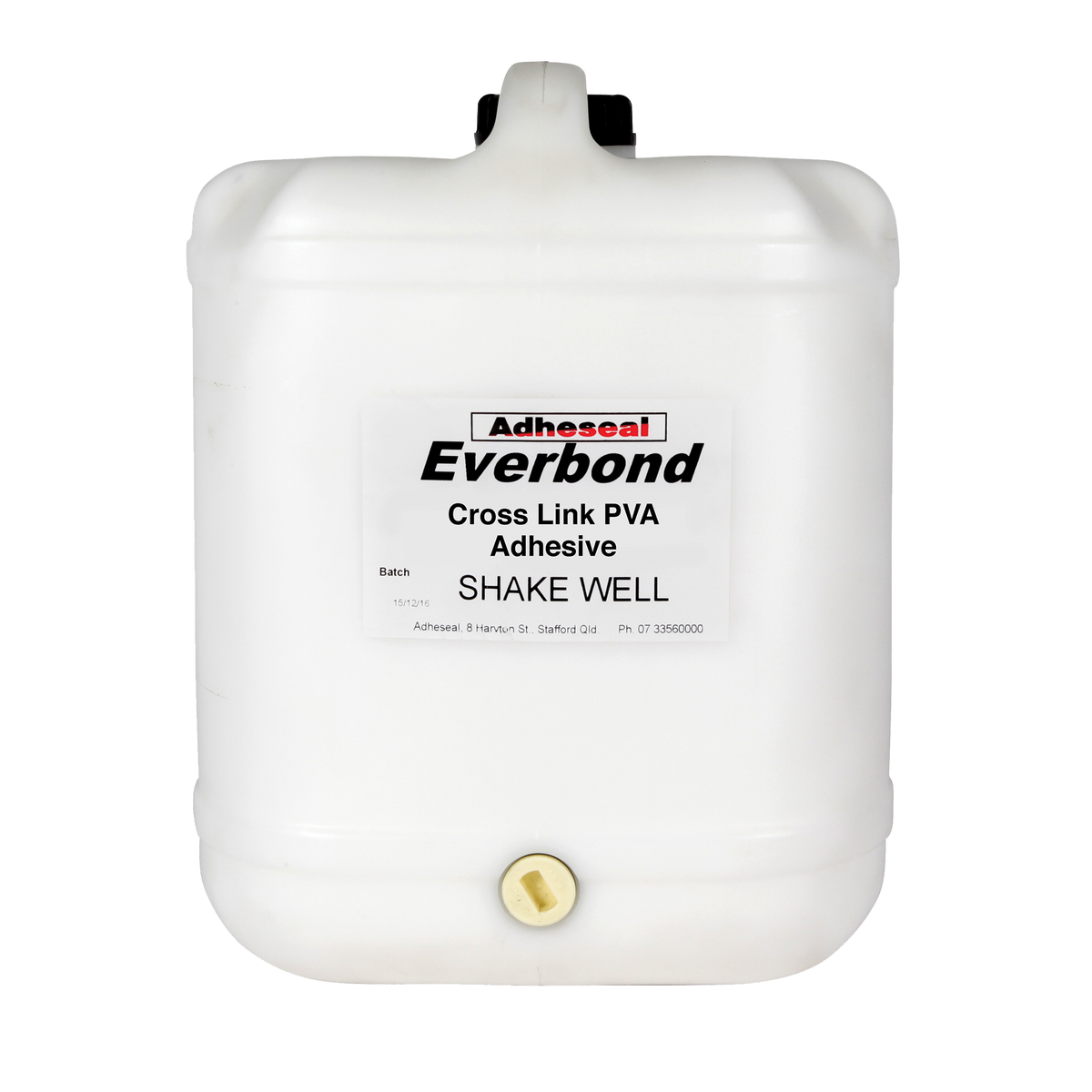

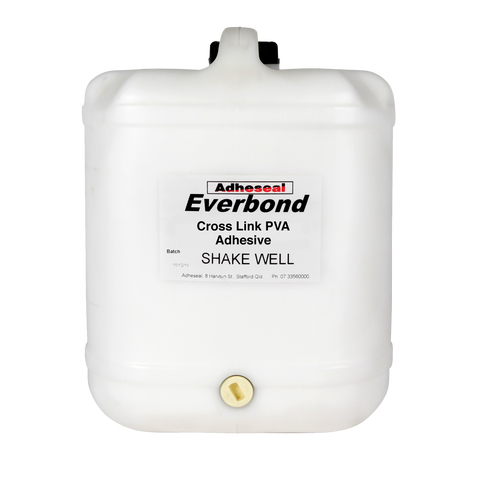

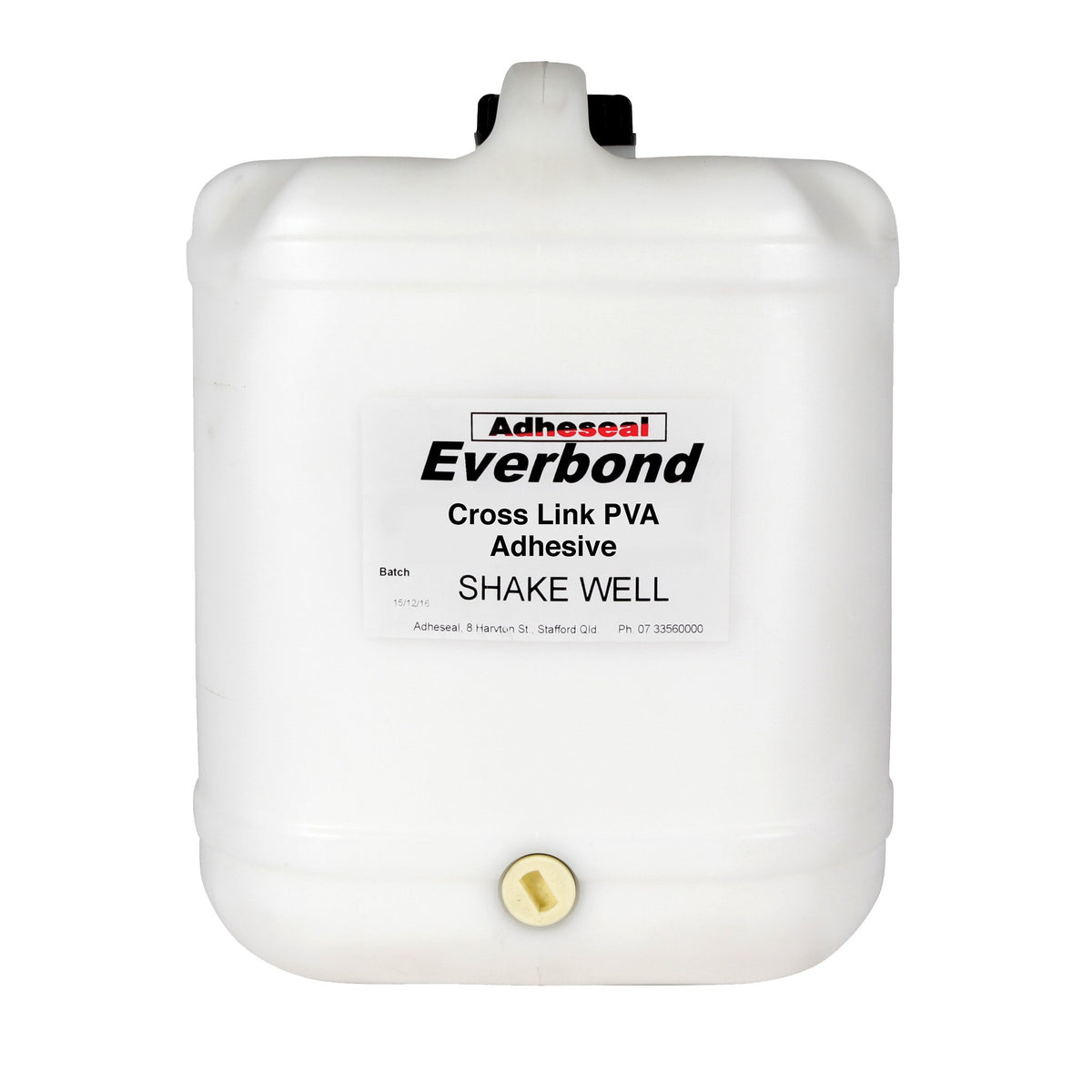

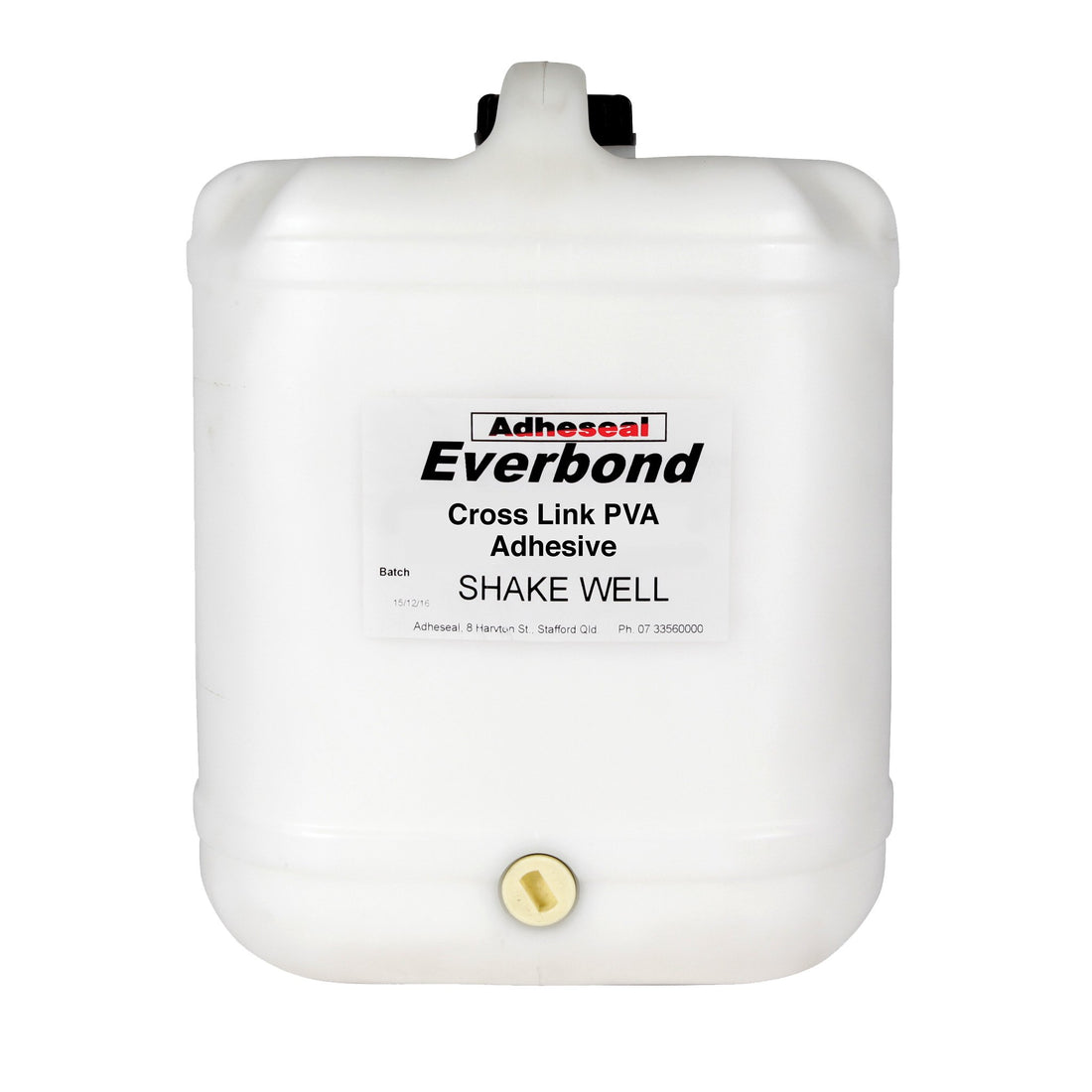

For woodworking, cabinetry, shopfitting, and joinery applications requiring a water-resistant bond, Everbond PVA Xlink 3 is a single-component, self-crosslinking adhesive that conforms to AS 2754.2 1991 and EN204. It bonds all types of timber without staining, and cures under ambient or hot press conditions without requiring mixing.
Everbond PVA Xlink 3 is a synthetic resin adhesive that cures through water dissipation and crosslinking. Under ambient conditions, it cures to a firm, highly water-resistant bond. Full cure is optimised when the adhesive interphase reaches moisture equilibrium, which typically takes seven days depending on timber density, substrate and adhesive mass, moisture content, and ambient conditions.
For high-volume production, curing can be accelerated by hot pressing. Water resistance can be further increased by thermocuring after mixing Catalyst Number 1 at a rate of 1% w/w.
This adhesive is suitable for assembly bonding, dowelling, laminating, and board joint or block bonding. Compatible substrates and materials include:
Minimum pressing times vary by application method and temperature:
For veneering 1mm to 2mm timber veneer to solid timber or particle board (with timber moisture at 8% to 12%), the recommended thermocuring cycle is 30 seconds at 80°C followed by 30 seconds at 130°C. This requires an adhesive spread rate of 150 to 200 g/m² and a pressure of 4 to 5 kp/cm².
Yes, it is rated water-resistant to AS 2754.2 and EN204, making it suitable for internal applications subject to incidental moisture. This provides reliability for cabinetry and shopfitting.
For optimal performance, especially with thermocuring, timber should have a moisture content between 8-12%. Consistent timber moisture helps achieve the strongest, most durable bond.
Everbond PVA Xlink 3 provides a very water-resistant bond suitable for internal joinery, not continuous outdoor exposure or situations requiring full waterproofing. It is designed for applications with incidental moisture exposure.
Pressing times vary from 10 seconds for decorative papers to 45 minutes for board joints under ambient conditions. Thermocuring significantly accelerates the process, achieving full strength in as little as 30 seconds for veneers.
| Application | Key benefit | Primary trades |
|---|---|---|
| Cabinetry and Shopfitting | Provides a very water-resistant bond to AS 2754.2 and EN204, preventing failures from incidental moisture in kitchens or commercial fit-outs. | Cabinet makers, Shopfitters |
| General Joinery and Dowelling | High-strength adhesion for all types of timber, ensuring durable, non-staining joints that resist separation. | Joiners, Furniture makers |
| Laminating timber veneer to panels | Offers fast bonding with thermocuring options for accelerated production cycles and enhanced water resistance in manufactured goods. | Laminators, Furniture manufacturers |
| Bonding Decorative Papers and HPL | Quick pressing times (from 10 seconds for papers, 60 seconds for HPL) reduce clamping time and increase throughput in production environments. | Laminators, Manufacturers |
The Engineering Challenge: Efficient adhesion of HPL sheets without telegraphing or bubbling under short press cycles.
The System-Based Solution with Everbond PVA Xlink 3: Achieves full bond strength in 60 seconds under 70°C press conditions, ensuring flat, defect-free finishes.
Best Practice Note: Pre-condition laminates and panels to same temperature and humidity prior to pressing.
The Engineering Challenge: Slow clamp cycles with traditional adhesives reduce throughput.
The System-Based Solution with Everbond PVA Xlink 3: Sets in as little as 30 minutes at room temp, allowing removal of clamps and increased throughput.
Best Practice Note: Ensure adhesive wetting on both substrates and maintain even clamp pressure throughout joint.
Warning. This material is a Scheduled Poison (Schedule 5).
Wear protective gloves (nitrile rubber recommended), apron, safety glasses, and a suitable organic vapour/particulate respirator if inhalation risk exists. Always wash hands before eating, drinking, or smoking.
Adequate natural ventilation should be sufficient under normal use. Ensure sufficient ventilation to avoid inhalation of vapours.
Store in a cool, dry, well-ventilated place, away from direct sunlight, foodstuffs, and incompatible materials. Keep containers closed and upright. This product is a Scheduled Poison (Schedule 5) and must be stored and used according to regulations. Dispose of according to local waste regulations; do not allow to enter groundwater or sewage systems.
Correct substrate preparation is crucial for achieving the specified water-resistant bond. Ensure timber is conditioned correctly before application.
Surface prep: Surfaces must be clean, dry, and free from dust, oil, or loose material. Ensure the adhesive is homogenous before use.
Conditioning: For optimal bond strength and water resistance, especially with thermocuring, timber moisture content should be maintained between 8% and 12%.
Primer: Not required for timber bonding.
| Property | Value |
|---|---|
| Type of Product | Synthetic Resin |
| Curing System | Water Dissipation |
| Density (Specific Gravity) | 1.05-1.15 |
| Consistency | White liquid |
| Viscosity (#5/10rpm/20°c) | 9300-13500 cP |
| Minimum Application Temperature | 8°c |
| Storage Temperature | 10°c-30°c |
| Glue Spread: Surface Bonding | 80-140 g/m2 |
| Glue Spread: Assembly Bonding | 160-180 g/m2 |
| Shelf Life | 6 Months in original packaging |
| Clean Up | Water |
| Test Certificates | AS2754.2 1991, EN204 |
| pH | 8-9 |
Here are some common examples on where Everbond PVA Xlink 3 used by our customers.
