Buzon DPH-5 is an adjustable pedestal for raised paver floors from 100 mm to 175 mm. Use it on terraces, balconies, and roofs. It leaves a drainage void below the finish.
DPH-5 has an integrated slope corrector for 0% to 5% falls. It is for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
Does Buzon DPH-5 include slope correction?
Yes. The current DPH-5-PH5 combines a 100–175 mm height range with integrated 0–5% slope correction in 0.5% increments.

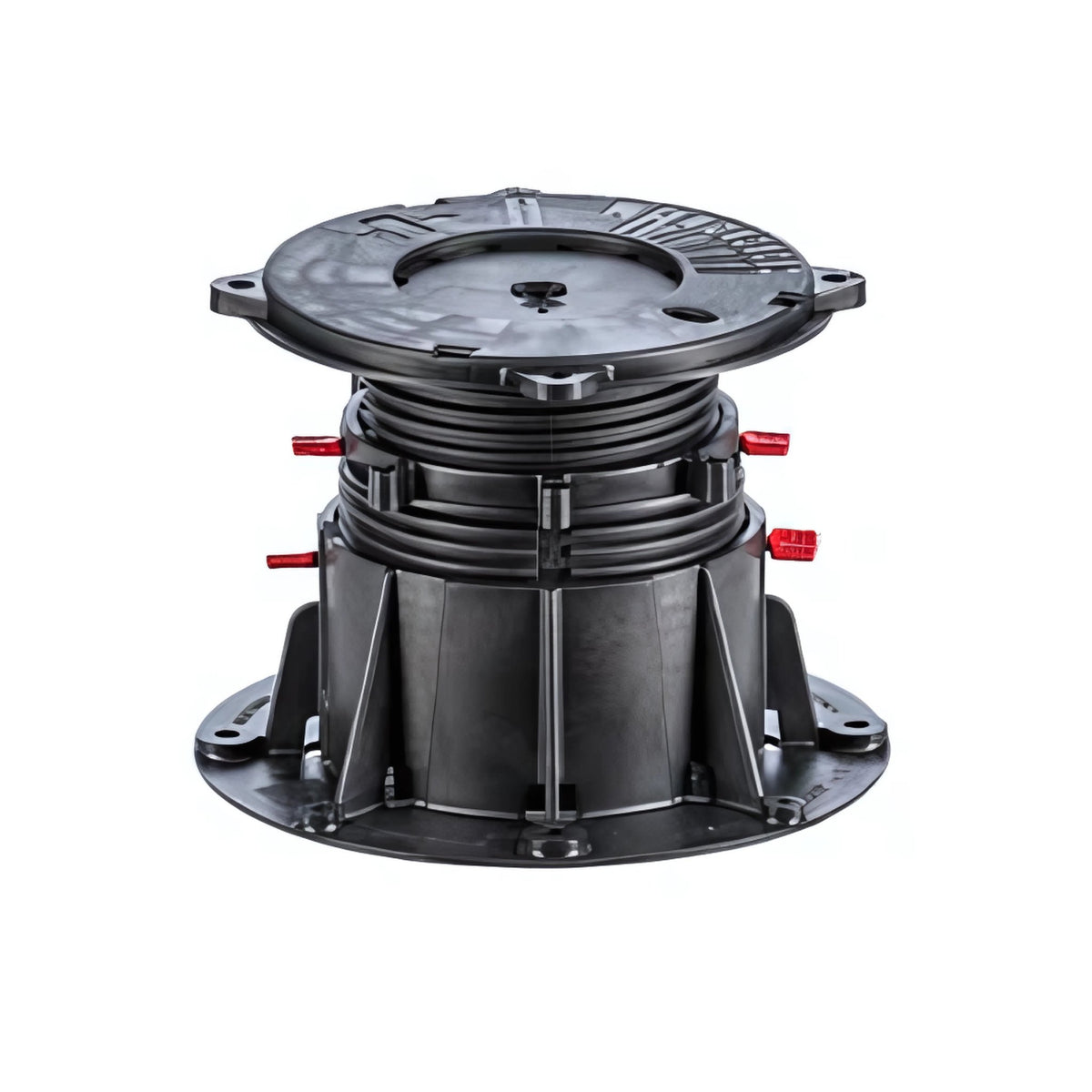

Buzon DPH-5-PH5 adjustable pedestal for raised external paver, tile, decking or grating systems.
Height range: 100–175 mm.
The integrated PH5 head corrects slope from 0% to 5% in 0.5% increments.
Place the pedestal on a solid, stable support surface at the spacing required by the raised-floor design.
Adjust the pedestal height between 100 mm and 175 mm, then set the integrated PH5 slope correction from 0% to 5% as required.
Fit the compatible support accessory and check level before placing the finished surface.
Use only within the published 100–175 mm height range.
Pedestal spacing, finish type, supporting surface and project load requirements must be designed for the installation; do not treat component test loads as the safe finished-floor capacity.
Use only compatible Buzon DPH accessories and support heads for the selected finish.
Buzon DPH-5 Adjustable Pedestal (100-175mm) Physical Properties
| Property | Value |
|---|---|
| Components | Slope corrector, DPH-5 PH5 pedestal, 4 locking keys |
| dimensions | {"topDiameter"=>"155 mm", "baseDiameter"=>"200 mm", "adjustableHeight"=>"100-175 mm", "slopeCorrection"=>"0-5% in 0.5% intervals"} |
| material | Copolymer polypropylene (CPP) |
| Recycled Content | 80% recycled PPC, 20% talc + black masterbatch |
| Service Temperature | -30°C to +80°C |
| Load Capacity | {"fullSurfaceYieldStrength"=>"16.4 kN", "halfSurfaceYieldStrength"=>"11.5 kN", "quarterSurfaceYieldStrength"=>"6.9 kN"} |
| Compliance | Made from minimum 50% recycled content, SIRRIS certified |
| Adjustment Range | 100-175 mm |
| Slope Correction | 0-5% |
| Substrate Compatibility | Raised paver floors |
