Buzon DPH-4 is an adjustable pedestal for raised paver floors from 77 mm to 108 mm. Use it on terraces, balconies, and roofs. It leaves a drainage void below the finish.
DPH-4 has an integrated slope corrector for 0% to 5% falls. It is for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
Does Buzon DPH-4 include slope correction?
Yes. The current DPH-4-PH5 combines a 77–108 mm height range with integrated 0–5% slope correction in 0.5% increments.

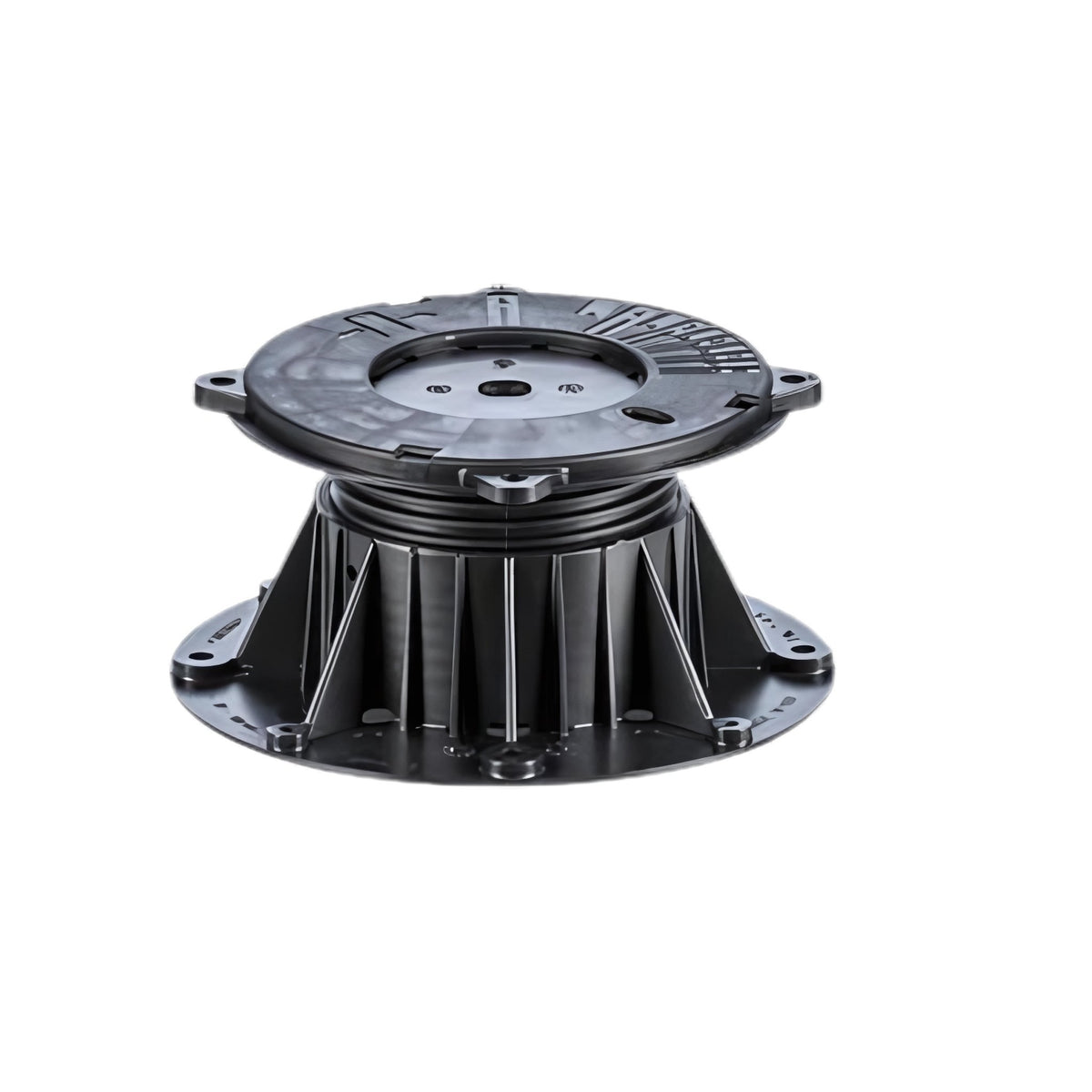

Buzon DPH-4-PH5 adjustable pedestal for raised external paver, tile, decking or grating systems.
Height range: 77–108 mm.
The integrated PH5 head corrects slope from 0% to 5% in 0.5% increments.
Place the pedestal on a solid, stable support surface at the spacing required by the raised-floor design.
Adjust the pedestal height between 77 mm and 108 mm, then set the integrated PH5 slope correction from 0% to 5% as required.
Fit the compatible support accessory and check level before placing the finished surface.
Use only within the published 77–108 mm height range.
Pedestal spacing, finish type, supporting surface and project load requirements must be designed for the installation; do not treat component test loads as the safe finished-floor capacity.
Use only compatible Buzon DPH accessories and support heads for the selected finish.
Buzon DPH-4 Adjustable Pedestal (77-108mm) Physical Properties
| Property | Value |
|---|---|
| Material | Copolymer Polypropylene (CPP) |
| Colour | Black |
| Top Diameter | 155 mm |
| Base Diameter | 200 mm |
| Adjustment Range | 77 to 108 mm |
| Slope Correction | 0-5% |
| Service Temperature | -30°C to +80°C |
| Load Capacity at Yield (Full Surface) | 19.2 kN |
| Load Capacity at Yield (Half Surface) | 12.3 kN |
| Load Capacity at Yield (Quarter Surface) | 6.9 kN |
| Packaging | 24 pieces per carton, 720 pieces per pallet |
| Substrate Compatibility | Raised paver floors |
