Buzon DPH-2 is an adjustable pedestal for raised paver floors from 35 mm to 53 mm. Use it on terraces, balconies, and roofs. It leaves a drainage void below the finish.
DPH-2 is part of the DPH raised-floor system for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
What is the adjustment range of the Buzon DPH-2?
DPH-2 adjusts from 35 mm to 53 mm. The current 2025 TDS records a 1,514 kg full-head breaking load at 53 mm, which must not be treated as the safe project design load.

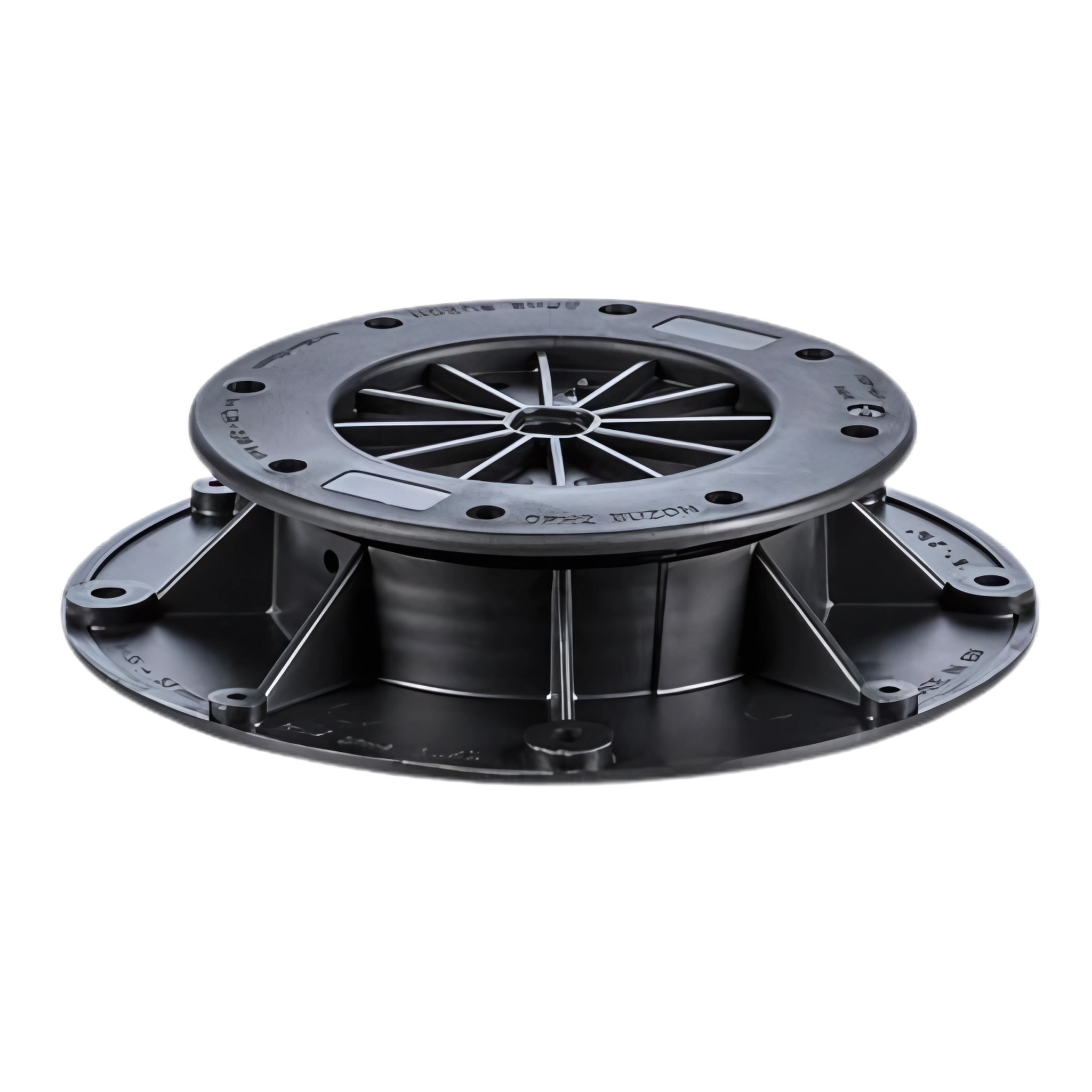

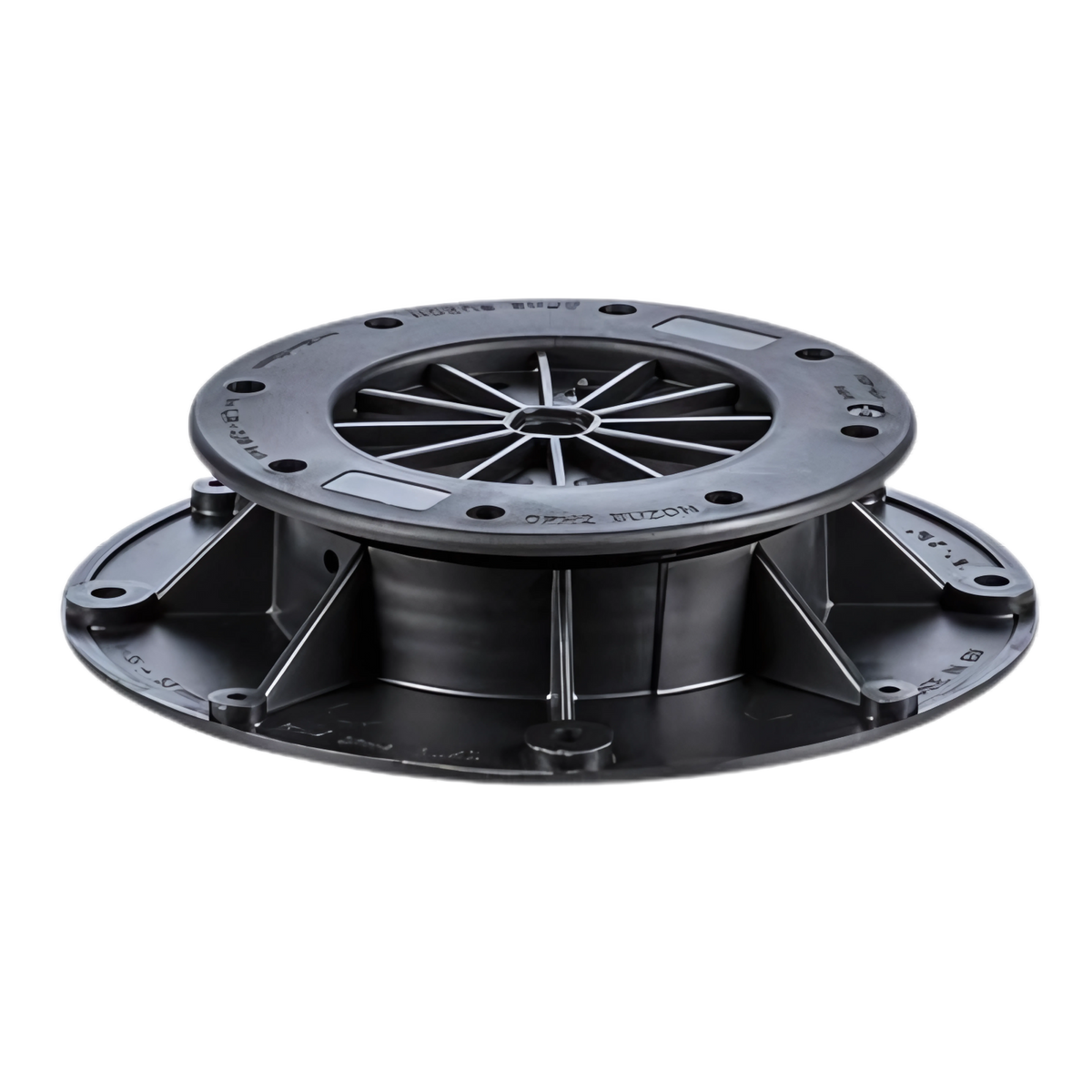

Adjustable Buzon DPH pedestal for raised external floors from 35 mm to 53 mm.
Current Buzon data specifies a 150 mm top, 200 mm base and 278 g pedestal weight.
The 2025 DPH-2 TDS records a 1,514 kg full-head breaking load at 53 mm.
Place the pedestal on a solid, stable support surface at the spacing required by the raised-floor design.
Rotate the adjustable body to set the finished support height between 35 mm and 53 mm, then fit the Buzon head accessory required for the selected paver, tile, grating or joist system.
Confirm level, support and accessory engagement before loading the finished floor.
Adjustment range is 35–53 mm.
The published 1,514 kg figure is a laboratory breaking load on the full head at maximum height, not a safe project load; Buzon's stated safety factors and the project design still apply.
Buzon specifies DPH pedestals for external raised floors with pedestrian traffic and excludes moving or vibrating machinery and vehicles.
Buzon DPH-2 Adjustable Pedestal (35-53mm) Physical Properties
| Property | Value |
|---|---|
| Adjustment Range | 35-53mm |
| top_diameter | 150mm |
| top_surface_area | 177cm² |
| base_diameter | 200mm |
| base_surface_area | 314cm² |
| Composition | 80% recycled CCP, 20% Talc + UV Masterbatch black |
| Thickness | 2-5mm |
| Service Temperature | -30°C to +80°C |
| Recyclability | Yes |
| Substrate Compatibility | Raised paver floors |
