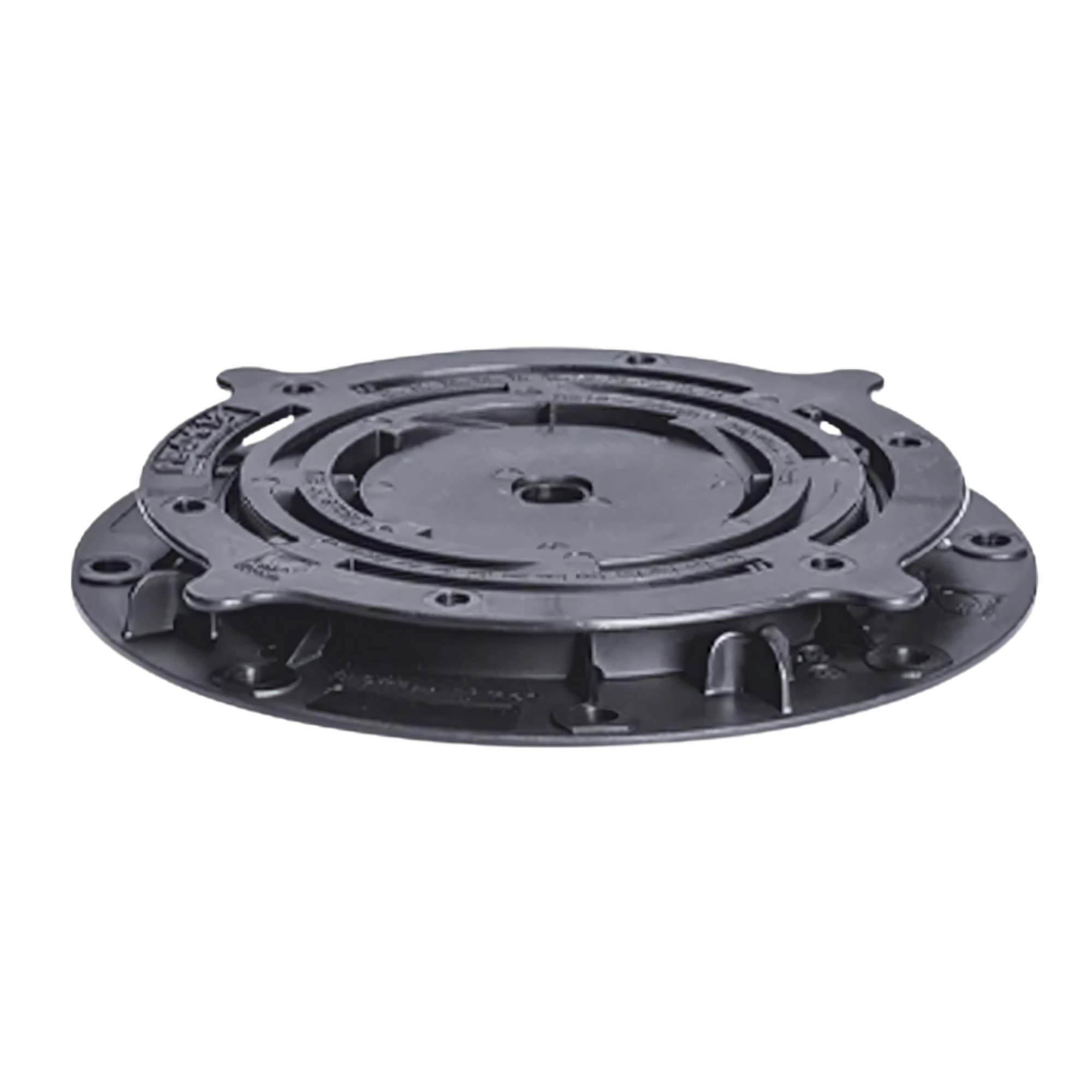

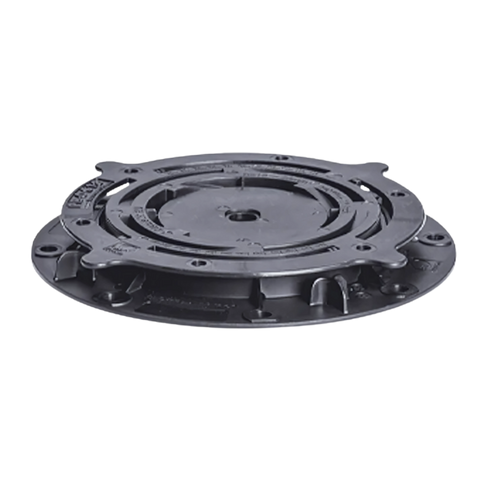

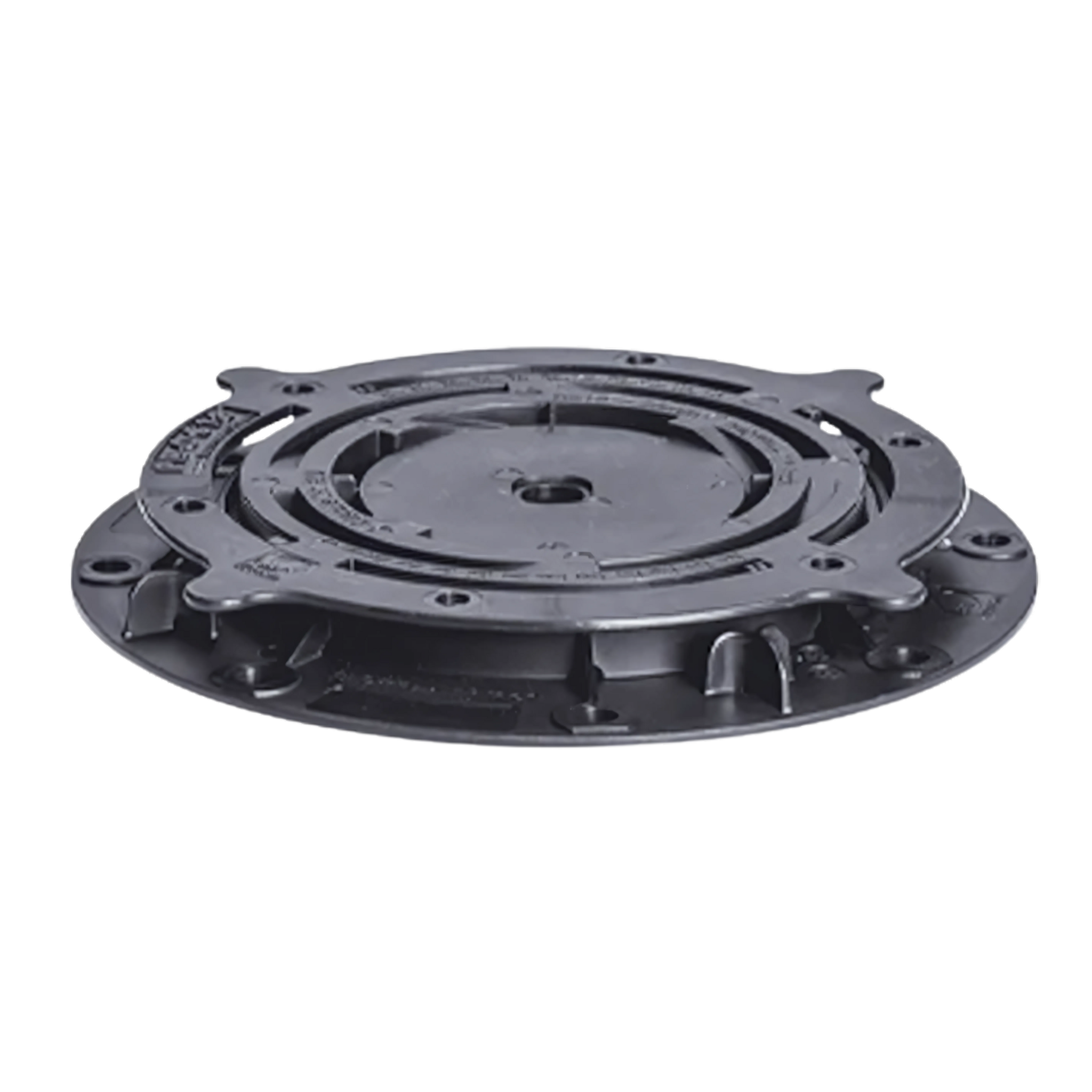

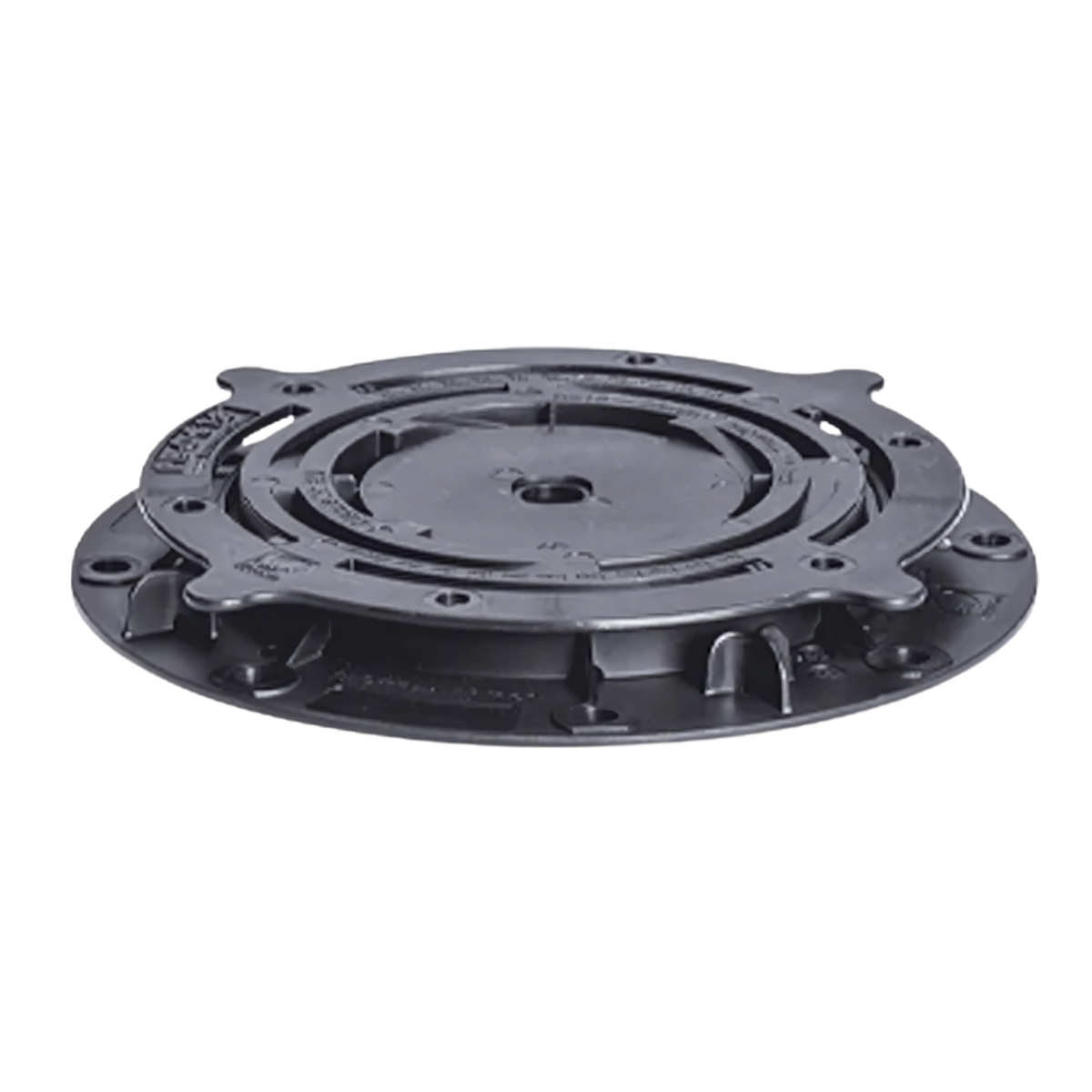

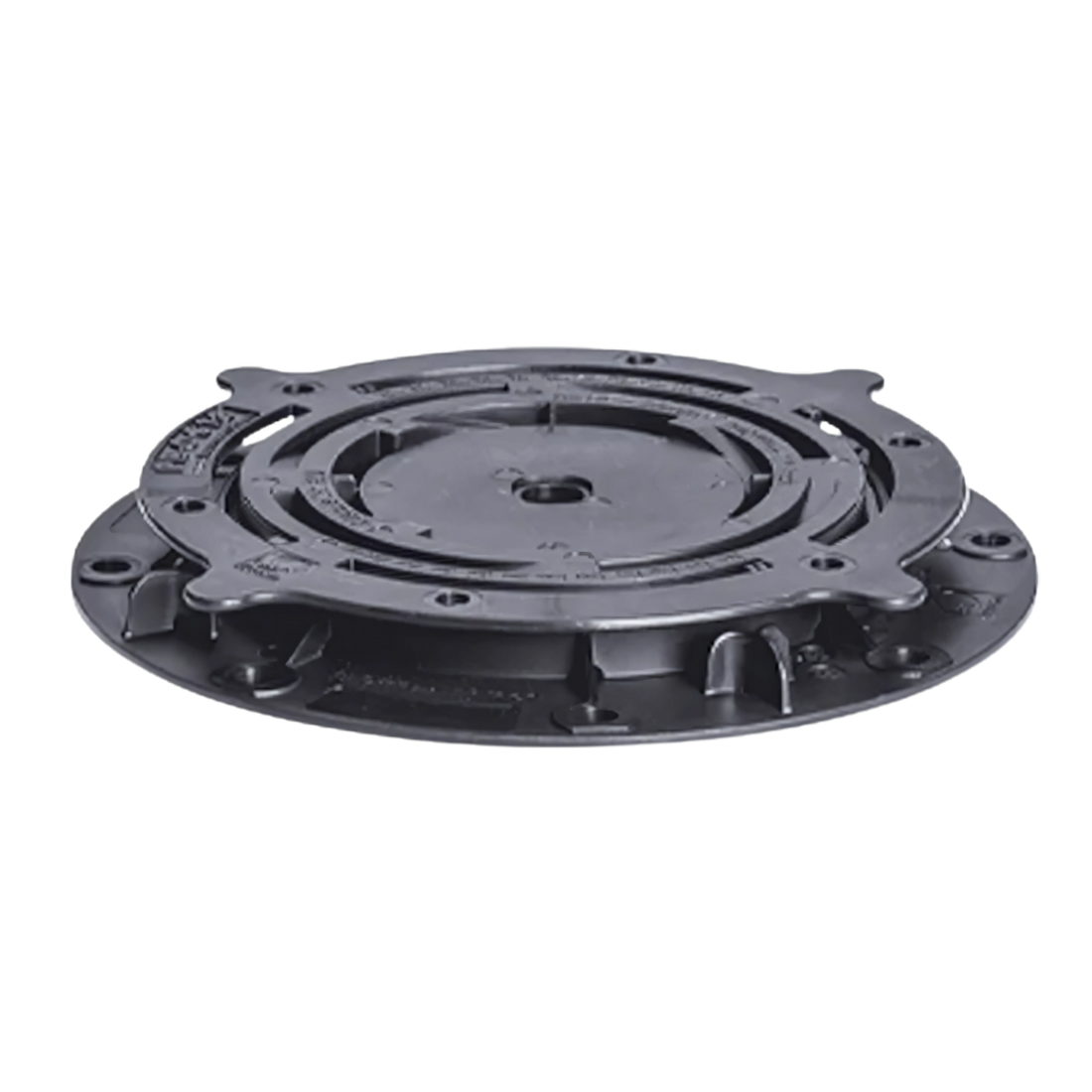

Buzon DPH-1 (18-28mm) is an adjustable raised floor pedestal designed for rooftop decking and paving applications where vertical clearance is limited. Engineered from Copolymer Polypropylene (CPP) with UV masterbatch additives, it provides a chemically inert, rot-proof support system that maintains structural integrity between -30°C and +80°C.
The system integrates with the PH5 slope corrector to achieve a level finish over 0-5% falls, ensuring precise drainage and stability on concrete slabs or waterproof membranes while meeting ISO472:2013 standards.
Frequently asked questions
Can DPH-1 be used for low-clearance rooftop terraces?
Yes, the Buzon DPH-1 is designed for ultra-low profile applications like rooftop terraces and balconies. Its 18-28mm height range handles tight clearances, providing stable support for pavers and decking.
Is the DPH-1 suitable for heavy vehicle traffic?
No, the DPH-1 pedestal is designed for pedestrian traffic only. Do not use it under moving or vibrating machinery, or in areas with vehicular access.
What material is the DPH-1 made from, and is it durable outdoors?
The DPH-1 is made from Copolymer Polypropylene (CPP), which provides high resistance to UV, environmental factors, and chemicals. It performs reliably in outdoor conditions from -30°C to +80°C, tested to ISO472:2013.
How does the DPH-1 handle slope correction?
The DPH-1 allows for 0-5% slope correction to create a level finish on sloped substrates. This adjustment capability provides precision for professional-grade installations.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Rooftop terraces and balconies | Ultra-low profile 18-28mm height adjustment for tight clearances. Ensures stable, level surfaces. | Tilers, landscapers, builders |
| Pool decks and surrounds | Resistant to UV, environmental factors, and chemicals. Provides stable support for various outdoor finishes. | Tilers, landscapers |
| Outdoor water features | UV and chemical resistance ensures longevity in moist environments. Allows for hidden pipework and drainage. | Landscapers, builders |
| Areas requiring fall or slope correction | Integrated 0-5% slope correction to achieve a level finished surface on sloped substrates. | Tilers, builders |
Application Guide
- Prepare a stable and solid substrate such as a concrete slab or insulation panel.
- Adjust the pedestal height to match the project requirements.
- Use the U-PH5 slope corrector if slope adjustments are required.
- Secure the desired outdoor finish (e.g., tiles, pavers) onto the pedestal using appropriate accessories.
Product limitations
- Not for: Supporting moving or vibrating machinery.
- Not for: Areas subject to vehicular traffic. This product is designed for pedestrian traffic only.
Compatible substrates
The Buzon DPH-1 pedestal is designed for direct placement on stable, load-bearing surfaces.
Concrete slabs and cement screeds
Surface condition: Ensure the surface is solid, level, and free from loose material or contaminants. Adequate drainage for the paved surface must be considered.
Waterproof membranes
Surface protection: Place the DPH-1 directly on robust, compatible waterproof membranes. Consider using a protection mat under the pedestal base to prevent damage to the membrane, especially on softer systems.
Buzon DPH-1 (18-28mm) Physical Properties
| Property | Value |
|---|---|
| Product Name | DPH-1 Adjustable Pedestal |
| Height Adjustment Range | 18-28 mm (up to 42 mm with PH5 slope corrector) |
| Slope Correction Range | 0-5% |
| Top Diameter | 145 mm |
| Top Surface Area | 165 cm² |
| Base Diameter | 170 mm |
| Base Surface Area | 227 cm² |
| Material | Copolymer Polypropylene (CPP) |
| Material Thickness | 2-5 mm |
| Composition | +/-80% first grade pre-selected recycled CPP and +/-20% Talc + UV Masterbatch black |
| Weight | 0.196 kg |
| Temperature Resistance | -30°C to +80°C |
| Compliance | Made from 80% recycled European materials |
| Testing Standards | ISO472:2013 |
