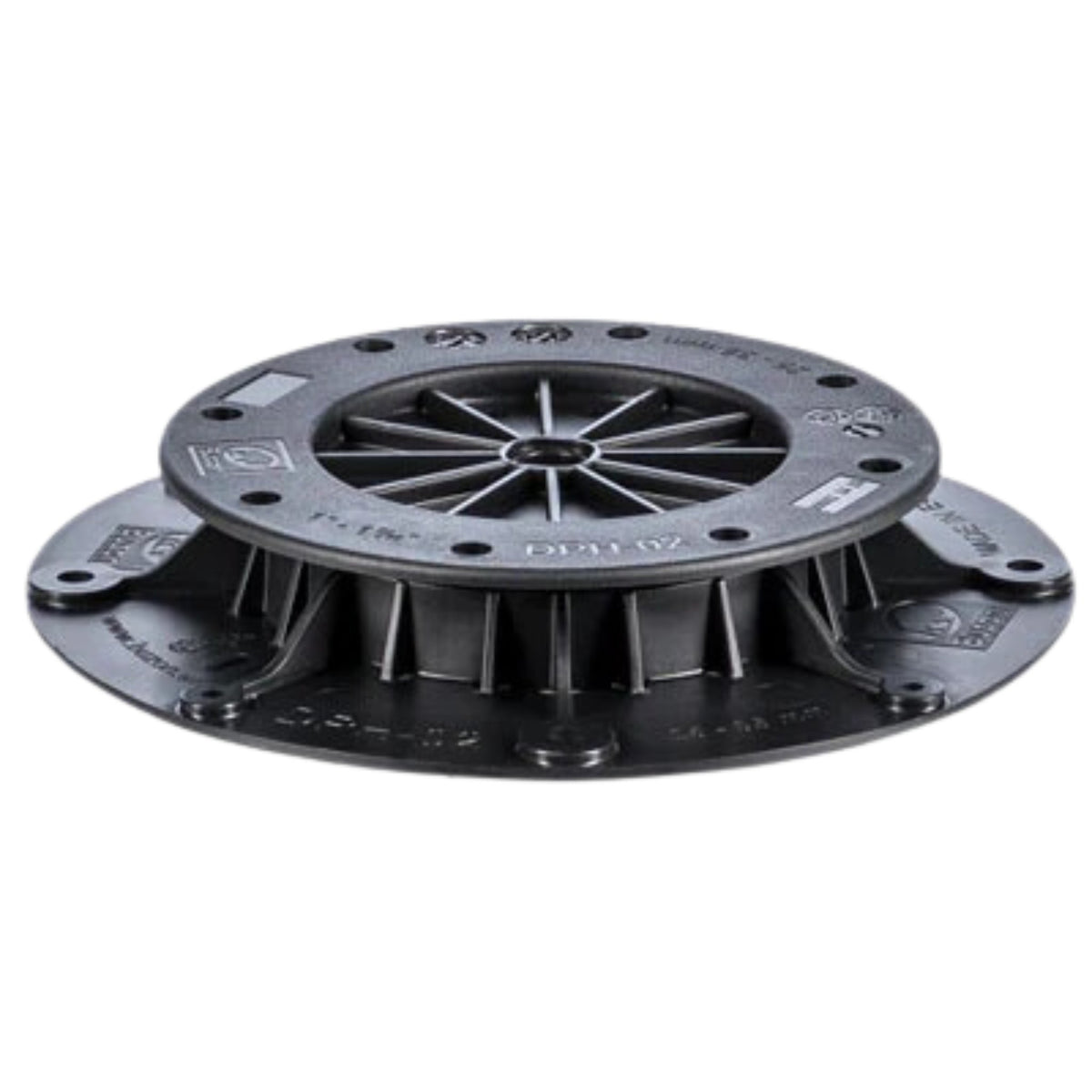

Buzon DPH-02 is an adjustable pedestal for raised paver floors from 25 mm to 36 mm. Use it on terraces, balconies, and roofs where the available height is limited. It leaves a drainage void below the finish.
DPH-02 is part of the DPH raised-floor system for external pedestrian areas. Do not use it for vehicles or vibrating machinery.
What height range does the Buzon DPH-02 cover?
DPH-02 adjusts from 25 to 36 mm. Select another DPH model if the required finished support height falls outside this range.
Buzon DPH-02 adjustable pedestal for raised external paver, tile, decking or grating systems.
Height range: 25–36 mm.
Part of the DPH raised-floor system for terraces, balconies, rooftops and other external pedestrian areas.
Place the pedestal on a solid, stable support surface at the spacing required by the raised-floor design.
Adjust the screw mechanism to the required height within 25–36 mm, fit the compatible DPH spacer or support accessory and check level before placing the finished paver, tile, grating or joist system.
Where slope correction is required, use the Buzon accessory specified for the DPH system.
Use only within the published 25–36 mm height range.
Pedestal spacing, finish type, supporting surface and project load requirements must be designed for the installation; do not treat component test loads as the safe finished-floor capacity.
Use only compatible Buzon DPH accessories and support heads for the selected finish.
Buzon DPH-02 (25-36mm Screwjack Pedestal) Physical Properties
| Property | Value |
|---|---|
| Product Name | DPH-02 Adjustable Pedestal |
| Adjustment Range | 25-36mm |
| Top_Diameter | 150mm |
| Base_Diameter | 200mm |
| Material | Copolymer polypropylene |
| Composition | 80% recycled CCP, 20% Talc + UV Masterbatch black |
| Temperature_Resistance | -30°C to +80°C |
| Recyclability | 100% |
| Substrate Compatibility | Raised paver floors |
