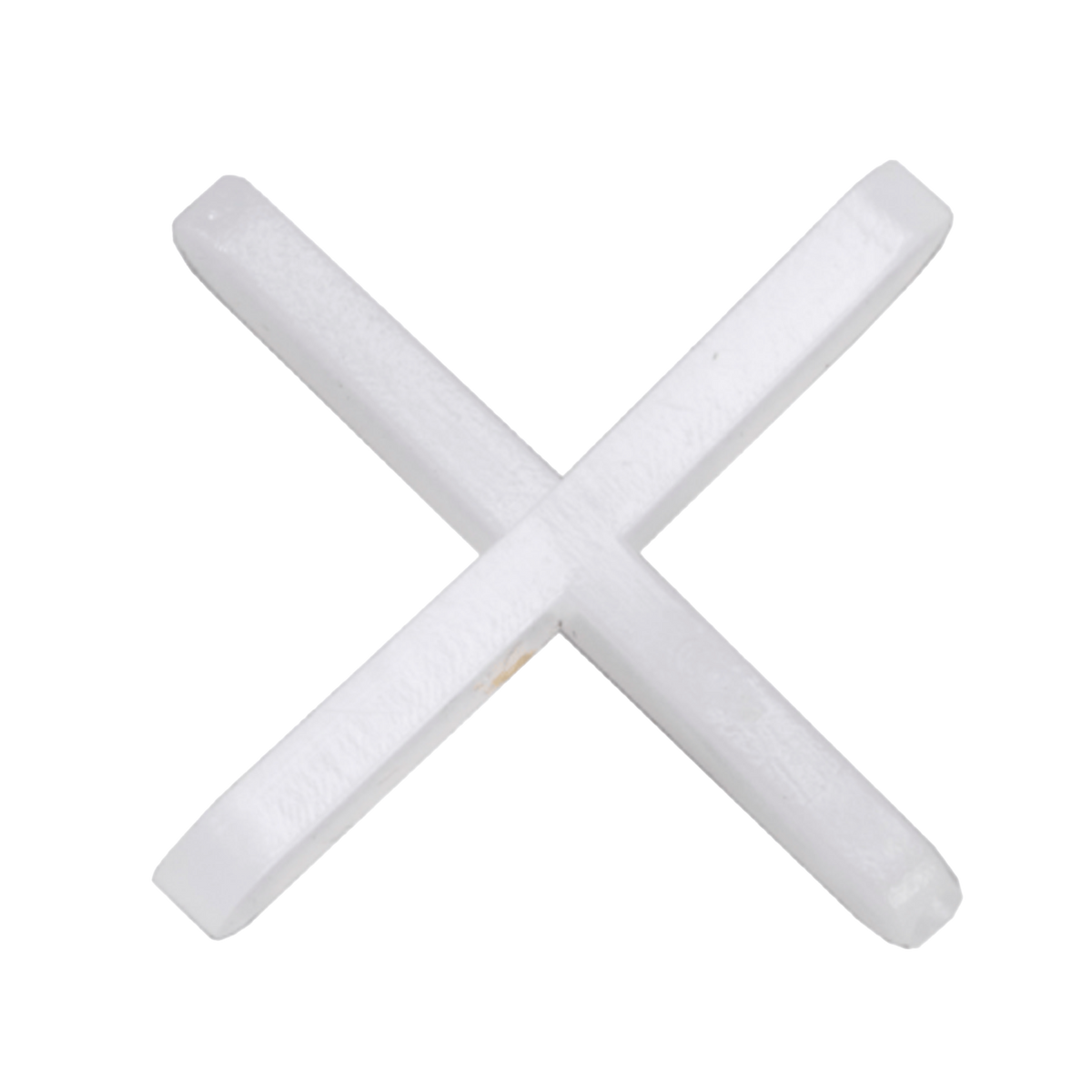

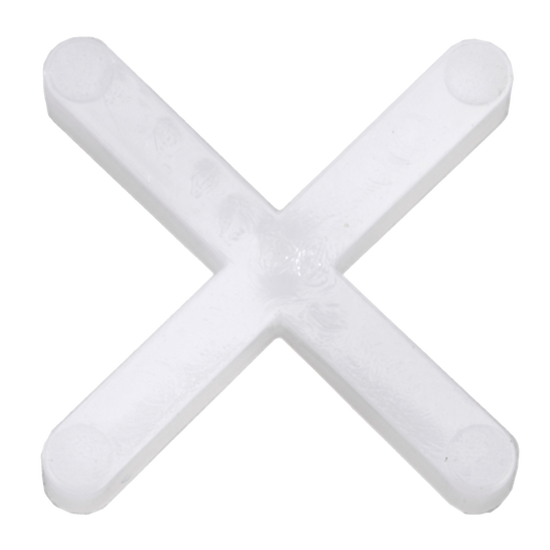

BAT Trims Tile Crosses are mechanical tile alignment tools engineered for consistent grout width control in high-volume commercial wall installations and residential splashbacks. Manufactured from high-strength polypropylene, these spacers resist deformation under the cumulative weight of stacked tiles to prevent vertical alignment drift and visual defects in large-format porcelain or ceramic layouts.
This ISO 9001:2015 certified solution ensures Australian Building Code compliance across multiple substrates and is designed for easy removal before grouting to prevent joint failure or cracking.
Frequently Asked Questions About BAT Trims Tile Crosses
Q: Can I reuse BAT Trims Tile Crosses?
A: Yes, in many cases the crosses can be reused, especially if they are removed before the adhesive fully cures. Clean thoroughly before reuse to avoid adhesive build-up.
Q: Are these spacers suitable for floor tiling?
A: These spacers are optimised for wall tiling. For floor tiling or heavy tiles, a heavier-duty spacer or levelling system may be more appropriate.
Q: Do I need a specific tile adhesive to use with these?
A: No. BAT Trims Tile Crosses are compatible with all common tile adhesives and do not chemically interact with them.
Q: How many tile crosses will I need per square metre?
A: That depends on tile size and layout. On average, you'll need 25–35 spacers per m² for standard wall tiles laid in a straight pattern.
Q: Can I use these for diagonal tile layouts?
A: Absolutely. BAT Trims Tile Crosses are designed for both straight and diagonal tile patterns and offer consistent spacing across angles.
Use BAT Trims Tile Crosses for:
- Maintaining consistent grout lines in bathroom and kitchen tiling.
- Ensuring even spacing for feature walls and splashbacks.
- Achieving professional results in large-scale commercial tiling projects.
Why Use BAT Trims Tile Crosses for:
- Achieving a flawless and professional tile finish.
- Reducing errors and material waste in tiling projects.
- Increasing efficiency and speed in tile installations.
How to apply BAT Trims Tile Crosses:
- Spread tile adhesive on the wall using a notched trowel suitable for your tile size.
- Place your first tile and insert BAT Trims Tile Crosses at each corner or along edges depending on tile size.
- Continue placing tiles and crosses in alignment, checking with a spirit level as you go.
- For diagonal layouts, place spacers at 45° orientation and adjust for overlap if required.
- Remove crosses before grout is applied, ideally once adhesive has set but before full cure.
BAT Trims Tile Crosses limitations:
- Not suitable for irregular stone or tiles with natural edge variation – consider wedge spacers in these cases
- Limited use in floor tiling unless combined with tile levelling clips
- Not a substitute for levelling systems when flatness is a concern across large-format tiles
Safety precautions when using BAT Trims Tile Crosses:
- Personal Protective Equipment: Gloves recommended for prolonged use during adhesive application
- Ventilation: Ensure good ventilation when working with tile adhesives and grout – spacers themselves are inert
- Handling: Store away from heat sources or direct sunlight to preserve plastic strength
- First Aid: No hazardous components – in case of adhesive skin contact during use, rinse with water and consult the tile adhesive SDS
BAT Trims Tile Crosses can be used on the following substrates:
- ceramic – maintains even grout lines across factory-cut edges
- porcelain – withstands rigid surfaces without compression
- stone – useful for calibrated stone wall tiles with minimal variation
- wall tiles – ideal for indoor tiling applications including wet areas
