Use 316 Stainless Steel Square Tile Insert with Megaflex – 50mm / 80mm / 100mm Outlet for: Durable, corrosion-resistant floor waste installations in tiled wet areas including bathrooms, laundries, and commercial spaces

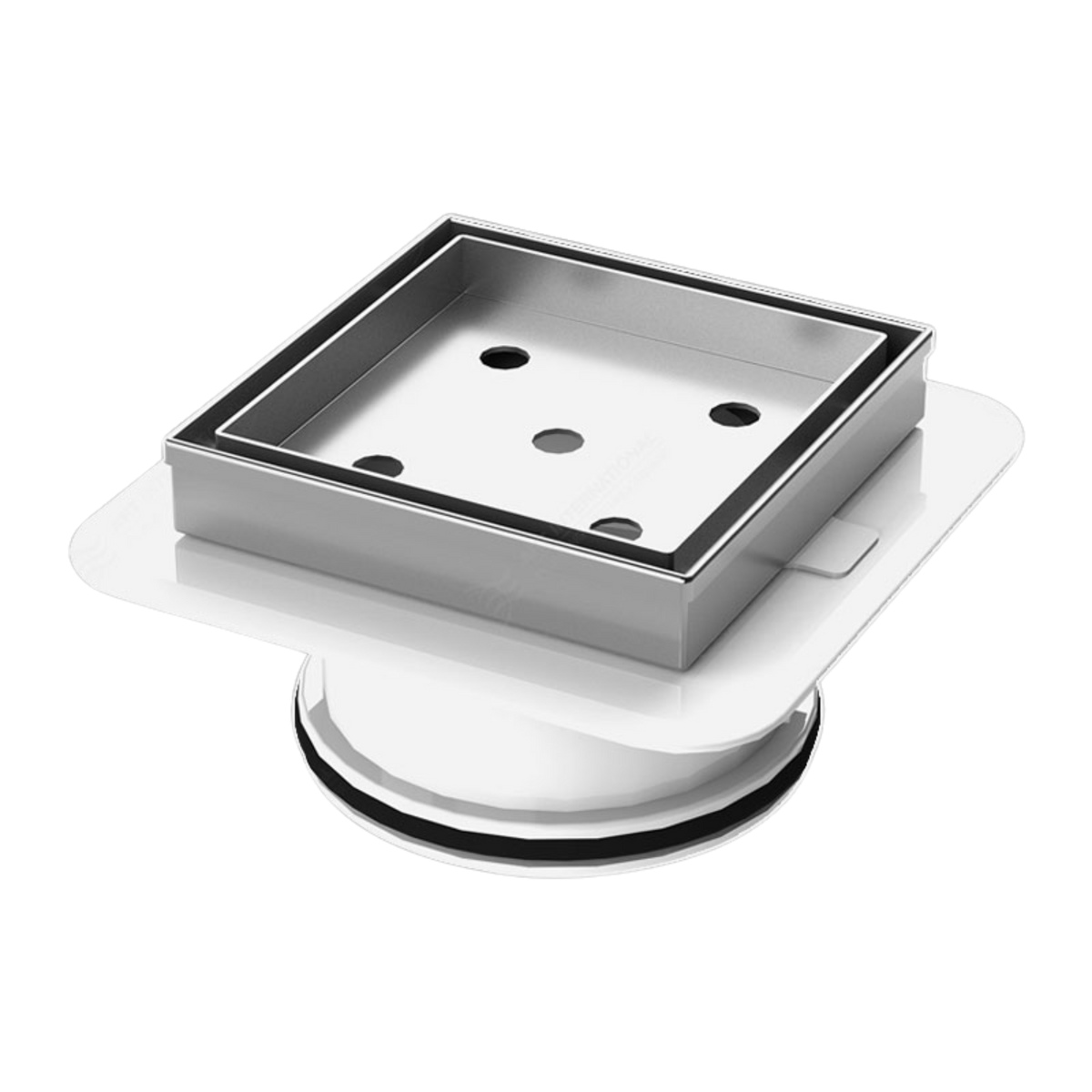

The 316 Stainless Steel Square Tile Insert with Megaflex is a versatile and premium solution for floor waste management. Available in 50mm, 80mm, and 100mm outlet sizes, each unit features a marine-grade 316 stainless steel insert with a polished finish and an innovative Megaflex ABS base. Designed for Australian trade professionals, this floor waste insert offers superior corrosion resistance, easy installation, and a watertight seal, making it ideal for wet area applications including residential and commercial environments.
Key Features of 316 Stainless Steel Square Tile Insert with Megaflex
- 316 marine-grade stainless steel for maximum corrosion resistance
- Polished finish for a sleek, modern appearance
- Megaflex™ ABS base allows flexible, watertight installation
- Available in 50mm, 80mm, and 100mm standard outlet sizes
Technical Overview
- Material: 316 Marine Grade Stainless Steel (Insert), ABS (Base)
- Outlet Sizes: 50mm, 80mm, 100mm
- Finish: Polished Stainless Steel
- Dimensions: 108.4mm x 108.4mm (outer frame)
Trade Professional Information
- Required Tools: Standard plumbing tools, silicone sealant, level
- Trade-Specific Tips: Align insert with tile pattern for seamless look and optimal drainage
- Common Issues and Solutions: Ensure Megaflex base is properly seated to prevent leaks
Storage and Shelf Life
- Storage Requirements: Store in dry indoor environment, avoid contact with moisture pre-installation
- Shelf Life Information: Indefinite when stored properly
- Temperature Considerations: Store between 5°C and 35°C
Certifications
- AS 3500 Plumbing and Drainage Standards Compliant
- ISO 9001:2015 Quality Management Certified
- Corrosion Resistant to AS 2831 Standard
Frequently Asked Questions About ART International Tile Insert Floor Waste
Q: What thickness of tile can be inserted into this floor waste?
A: The tile insert tray has a recess depth of approximately 12.8mm. This is designed to accommodate most standard ceramic, porcelain, or stone floor tiles, typically ranging from 8mm to 10mm, plus the adhesive bed (around 2-3mm). Always dry-fit your chosen tile with adhesive thickness in mind to ensure a flush finish.
Q: Is the 316 Marine Grade Stainless Steel truly necessary for an indoor bathroom?
A: While 304 grade stainless steel is common, 316 Marine Grade [cite: 1, 6, 11] offers superior long-term protection against corrosion, especially from moisture, cleaning products, and even residual salts or minerals in water. It ensures your floor waste remains pristine and functional for much longer, making it a worthwhile investment for a quality, durable bathroom. It's particularly beneficial in coastal Australian homes.
Q: What does the Megaflex™ base actually do?
A: While the specific technical details of "Megaflex™" are proprietary to ART International, this term typically implies that the A.B.S. base [cite: 1, 6, 11] has an element of built-in flexibility. This can assist plumbers in achieving a secure connection to the waste pipe, especially in renovation situations where existing pipework might not be perfectly aligned, potentially simplifying installation.
Q: How do I clean and maintain the tile insert floor waste?
A: Maintenance is simple. Regularly lift out the tile insert tray. Remove any accumulated hair or debris from the drain body beneath. The tile in the insert can be cleaned as per your normal floor tile cleaning routine. The 316 stainless steel frame [cite: 1, 6, 11] can be wiped with a soft damp cloth and mild, non-abrasive detergent. Avoid harsh chemicals or abrasive scourers to protect the polished finish.
Q: Is this floor waste suitable for outdoor tiled areas like balconies?
A: Yes, being made from 316 Marine Grade Stainless Steel [cite: 1, 6, 11] and A.B.S.[cite: 1, 6, 11], this floor waste is suitable for appropriately waterproofed outdoor tiled areas such as balconies or patios, provided the drainage and waterproofing are designed and installed to Australian Standards (e.g., AS 4654.2). Its corrosion resistance is a key advantage for outdoor use.
Q: Where can I purchase this ART International floor waste?
A: ART International products are typically available through plumbing suppliers and bathroomware retailers. You can contact ART International directly using the details on the product specification sheet [cite: 4, 5, 9, 10, 14, 15] (sales@artinternational.com.au or P: 02 9896 7760) to find a stockist near you in Australia or New Zealand.
Use 316 Stainless Steel Square Tile Insert with Megaflex™ for:
- Residential bathroom and laundry floor drainage
- Commercial kitchens and wet areas requiring high durability
- Outdoor tiled areas exposed to moisture
Why Use 316 Stainless Steel Square Tile Insert with Megaflex™:
- Provides corrosion resistance in harsh, wet environments
- Simple, reliable installation with flexible Megaflex™ base
- Sleek, modern appearance complements tiled finishes
Step-by-Step Installation Overview for ART International Tile Insert Floor Waste:
Note: Installation must be performed by a licensed plumber and tiler in accordance with AS/NZS 3500, AS 3740, and local building codes. This is a general guide only.
-
Plumber - Preparation & Body Installation:
- Determine correct floor waste location and ensure subfloor is prepared.
- Connect the Megaflex™ A.B.S. waste body [cite: 1, 6, 11] to the appropriate sized (50mm, 80mm, or 100mm [cite: 2, 7, 12]) DWV pipe using approved plumbing methods.
- Set the height of the waste body carefully, accounting for screed depth (if any), waterproofing membrane thickness, tile adhesive bed, and the tile thickness itself. The aim is for the top of the tile insert tray, once installed, to sit perfectly flush with the surrounding finished floor tiles.
- Ensure the waste body is level and securely fixed.
-
Waterproofer/Tiler - Waterproofing & Screed:
- Integrate the floor waste flange with the waterproofing membrane system according to AS 3740 and waterproofing manufacturer’s specifications. This is a critical step.
- Install screed (if required) ensuring correct falls are achieved towards the floor waste for effective drainage.
-
Tiler - Tiling & Tile Insert Installation:
- Tile the main floor area, working towards the floor waste. Leave an appropriate opening for the waste.
- Precisely cut a piece of your chosen floor tile to fit into the stainless steel tile insert tray (internal dimensions approx. 94mm x 94mm). The tile should be no thicker than approx. 12.8mm.
- Using a suitable wet area tile adhesive, fix the cut tile into the insert tray, ensuring it is level and flush with the top edges of the tray. Remove any excess adhesive immediately.
- Once the adhesive in the tray is set, place the completed tile insert into the floor waste body.
- Grout the surrounding floor tiles as per normal practice.
-
Final Checks:
- Ensure the tile insert is easily removable for cleaning access.
- Check for correct drainage once all plumbing fixtures are commissioned.
- Protect the finished waste during any remaining construction activity.
Important Considerations & Safety for ART International Tile Insert Floor Waste:
Product Limitations:
- Tile Thickness: The tile insert tray is designed for tiles up to approximately 12.8mm thick. Using thicker tiles may result in the insert sitting proud of the surrounding floor.
- Cleaning Agents: While the 316 stainless steel [cite: 1, 6, 11] is highly resistant, avoid using overly harsh, abrasive, or acidic cleaners directly on the polished stainless steel frame, as these could potentially dull or scratch the finish over time. Always rinse with clean water after cleaning.
- Grout Haze: During grouting, ensure any grout haze is thoroughly cleaned from the stainless steel components promptly to prevent tenacious residue.
- Load Bearing: This floor waste is designed for standard pedestrian traffic in wet areas. It is not intended for high-load or vehicular traffic areas.
Safety & Installation Best Practices:
- Professional Installation Required: All plumbing and tiling work must be carried out by licensed professionals in accordance with relevant Australian Standards (AS/NZS 3500, AS 3740) and the National Construction Code (NCC).
- Waterproofing Integrity: The correct integration of the floor waste flange with the waterproofing membrane is critical to prevent leaks. This must be done meticulously by a qualified waterproofer.
- Handling Care: Protect the polished stainless steel finish [cite: 3, 8, 13] from scratches or damage during storage, handling, and installation. Keep protective films on as long as practical.
- Sharp Edges (Tile): When cutting the tile for the insert, care should be taken as cut tile edges can be sharp. It's good practice to slightly smooth any sharp edges before fixing into the tray.
Material Composition & Compatible Finishes:
- Tile Insert Tray & Visible Frame: 316 Marine Grade Stainless Steel, Polished Finish. [cite: 1, 3, 6, 8, 11, 13] This ensures excellent resistance to corrosion and staining in wet environments, maintaining a premium look.
- Megaflex™ Base: A.B.S. (Acrylonitrile Butadiene Styrene) plastic. [cite: 1, 6, 11] A durable and robust thermoplastic commonly used in plumbing applications for its strength and stability.
-
Compatible Floor Tiles: Suitable for inserting most types of floor tiles, including:
- Ceramic Tiles
- Porcelain Tiles
- Natural Stone Tiles (e.g., marble, granite, travertine - ensure stone is sealed if porous)
- Mosaic Tiles (if appropriately bedded within the tray)
