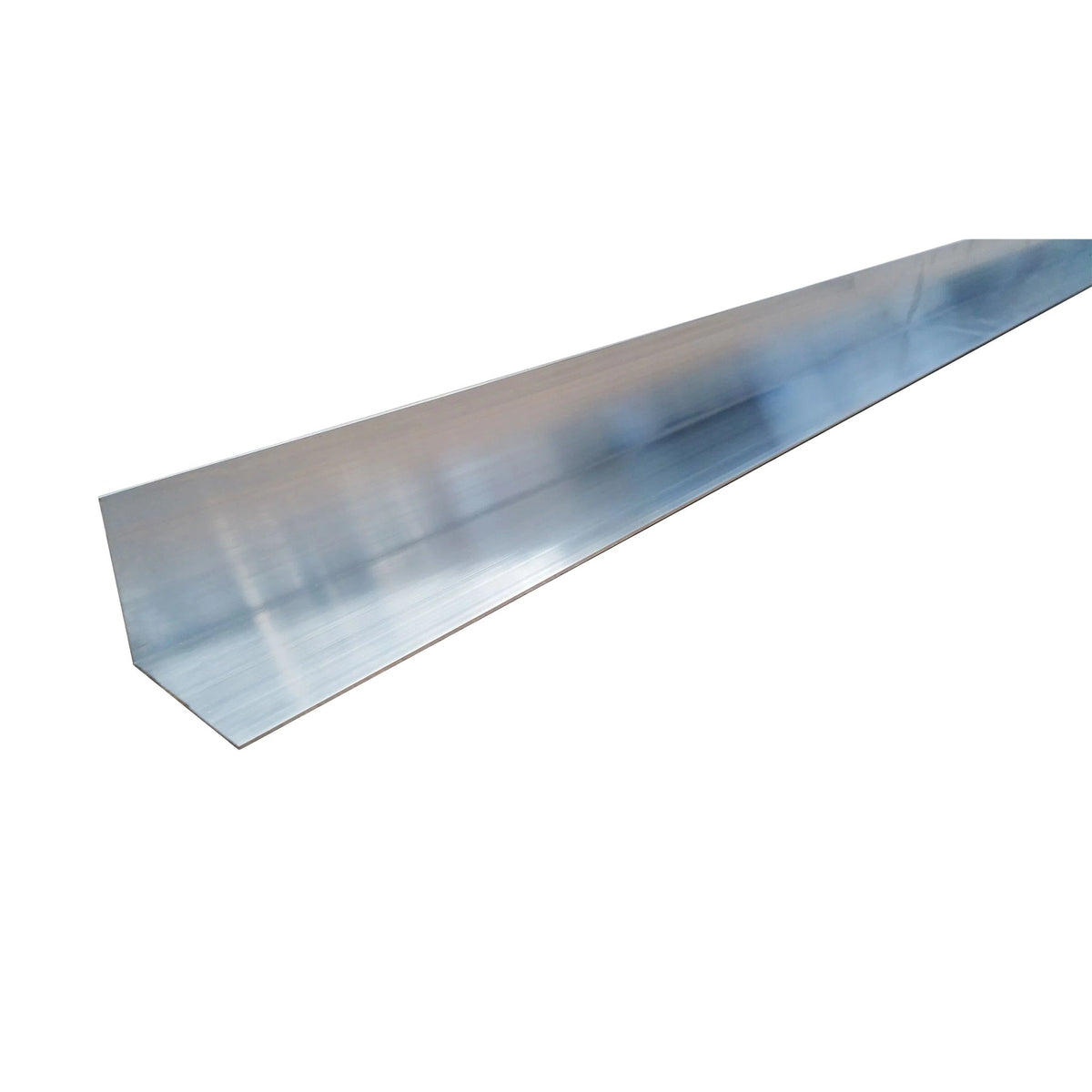

Aluminium Angle Unequal 100 × 50 combines an extra-wide 100mm face with a shorter 50mm return. This 6060-T5 mill-finish L-section is useful for wide edge-cover and panel-fabrication details where one side needs much more coverage than the other.
Choose the 100 × 50mm shape rather than an equal angle when the installation has a clear primary face and a narrower fixing or return side. It can help form a consistent edge line on suitable cladding, shopfitting and vehicle-body assemblies, subject to the designed fixing arrangement.
| Leg dimensions | 100 × 50 mm |
|---|---|
| Geometry | Unequal angle |
| Alloy / temper | 6060 T5 |
| Finish | Mill finish |
| Current stock | 3.0 mm × 2165 mm or 3.0 mm × 6500 mm |
Current stock: 3.0mm thick in either 2165mm or 6500mm length. Both lengths have the same listed wall thickness; the long option may reduce joins on extended runs but requires appropriate transport and handling.
Position the 100mm and 50mm legs correctly, allow fastener edge clearances and deburr cut edges. Mill finish requires suitable preparation for additional coatings. This extrusion is not assigned a structural load rating or a waterproofing function.
What stock options are available in 100 × 50 mm aluminium angle?
Current Adheseal stock is 3.0 mm × 2165 mm or 3.0 mm × 6500 mm, supplied in 6060 T5 mill finish.
Aluminium Angle Unequal 100x50 Physical Properties
| Property | Value |
|---|---|
| Alloy | 6060 |
| Temper | T5 |
| Finish | Mill Finish |
| Form | Angle Extrusion |
| Strength to Weight Ratio | High |
| Corrosion Resistance | Excellent |
| Weldability | Excellent |
| Machinability | Good |
| Lengths Available | Varies by size |
| Processing Capabilities | Cutting, drilling, welding, anodising, powder coating, painting |
| Typical Applications | Vehicle body building, caravans, aerospace, shopfitting, frames, architectural frameworks |
