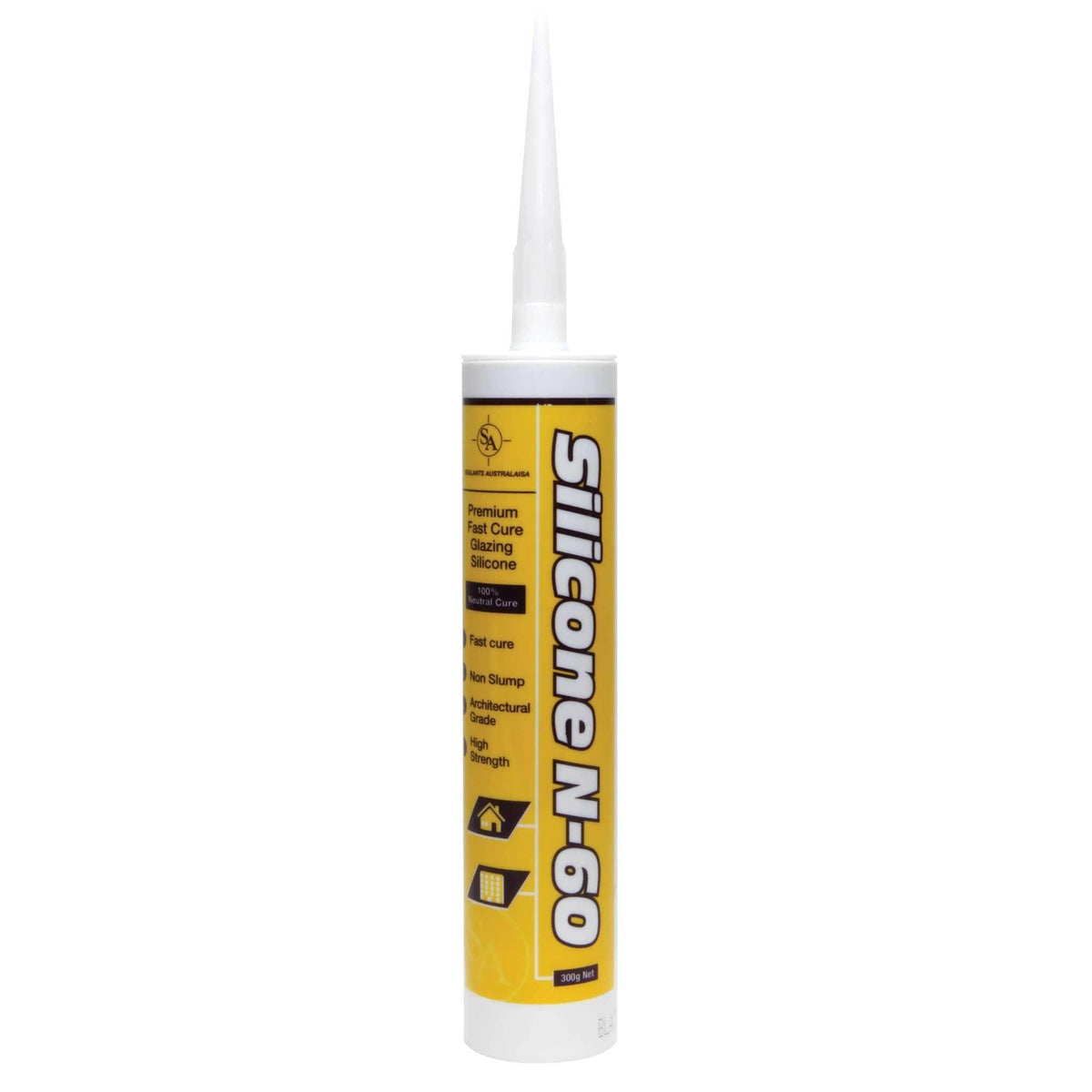

SA Silicone N60

Name: SA Silicone N60
Brand: Sealants Australasia
SKU: SILSN60BK/CTG
Price: 11.28 AUD
Availability: InStock

A neutral-cure structural glazing silicone that bonds glass to metal frames in fin and structural glazing. Compatible with reflective and laminated glass, safe on painted and anodised aluminium.

Vendor: Sealants Australasia

SKU: SILSN60TRN/CTG

Availability: In Stock

$11.28; $11.28
Unit price: per

Prices do not include GST

Product variants

Quantity:

Guaranteed safe checkout

Secure SSL encrypted checkout
Fast, tracked shipping
Easy returns & support

Adheseal tool

Sealant Calculator

Not sure on how much sealant you'll need? Use our calculator to find out.

Shipping & Delivery

Flat-rate shipping $17.95 + GST (metro and standard zones). Excludes remote/regional/high-cost postcodes and certain items (DG, oversized, long-length, or bagged products 15 kg+). If your order includes any of these, we will contact you to arrange additional freight charges. Online purchases only.

Download TDS Download SDS

Description

SA Silicone N60 bonds glass to metal frames in structural and fin glazing applications. It cures into a durable, flexible seal that holds against environmental stress. This neutral cure formulation is compatible with reflective and laminated glass, painted aluminium, and anodised finishes.

Where to use it

Two sided structural glazing. (Colours only on to aluminum substrate).
Fin Glazing. (all N60 colours including trans).
Sealing of Laminated and reflective glass.
General glazing applications.
Sealing of mirrors and splash backs (not vinyl backed).
Toughened Glass Assemblies.
Weather Sealing in curtain walls and building facades.
Weather Sealing of composite metal panels.

Benefits

Superior adhesion to painted and anodized aluminum & glass.
Thixotropic nature ensures that it will not slump in typical construction joints.
Excellent U.V. Stability.
Long life reliability.
Excellent natural aging stability.
Will maintain its elastomeric joint sealant properties permanently, even under harsh conditions and temperature extremes.

Compatible substrates

painted aluminum.
anodized aluminum.
glass.
Laminated glass.
reflective glass.
mirrors (not vinyl backed).
splash backs (not vinyl backed).
composite metal panels.

Where not to use it

As the sealant requires atmospheric humidity to cure, it will not cure in totally confined spaces where it does not have access to atmospheric humidity.
Aquariums.
Under Water Applications on concrete, some plastic materials etc. (including swimming pools).
Some stones.
Below Grade Applications.
Horizontal walkways.
Do not clean or treat the sealant with materials, cleaning agents or solvents, that my affect or discolour the sealant, particularly during product curing.
Polycarbonate sheeting.
Sealant may discolour copper and brass.
This product is neither tested nor can be used for medical or pharmaceutical use.
Where building materials may bleed oil, plasticizes or solvents, some vulcanized rubbers and tapes.
Surfaces subject to corrosion / oxidisation -eg. mill aluminum.
This silicone is not paintable.

Common Questions

Can N60 be used for structural glazing?
Yes. It is intended for two-sided structural glazing and meets ASTM C 1184, but it must be used within a properly designed glazing system.

How much movement can N60 accommodate?
It is rated for ±35% dynamic joint movement.

Is N60 suitable for potable water contact?
Translucent and grey colours are approved to AS/NZS 4020-2005. Confirm the selected colour before specifying.

Can N60 be painted?
No. Cured silicone is not paintable.

Uses & Benefits

Neutral-cure architectural silicone for two-sided structural glazing, fin glazing, general glazing and facade weather sealing. Suitable for laminated and reflective glass, painted aluminium and anodised finishes. Accommodates ±35% dynamic joint movement. Meets ASTM C 1184 for structural sealants. Translucent and grey colours are approved to AS/NZS 4020-2005 for potable water contact, subject to colour selection.

How To Apply

Use on clean, dry surfaces free from wax, grease, cutting oils and loose material. For painted or anodised aluminium, glass and composite metal panels, use an appropriate two-wipe cleaning process and confirm adhesion. Use backing rod to control joint depth and prevent three-sided adhesion. Apply the sealant continuously and tool before skin formation. For structural glazing, use only within a properly designed and validated glazing system. For mirror and splashback applications, use only on non-vinyl-backed products and confirm compatibility before full installation.

Limitations and Safety Info

Do not use in totally confined spaces. Do not use in aquariums or underwater applications including swimming pools. Do not use on some natural stones without compatibility and stain testing. Do not use below grade, on horizontal walkways or on polycarbonate. Copper and brass may discolour. Avoid surfaces that may bleed oils, plasticisers or solvents, including some vulcanised rubbers and tapes. Do not paint cured N60. Not intended for medical or pharmaceutical applications.

Suitable Substrates

Glass, including laminated and reflective glazing.
Painted and anodised aluminium.
Composite metal panels.
Non-vinyl-backed mirrors and splashbacks.
Structural and fin glazing assemblies designed for N60.

SA Silicone N60 Physical Properties
Property	Value
Tack Free Time	30 minutes
Skin Time	8 minutes
Tooling Time	8 minutes
Sag / Slump	Nil
Shore A Hardness	22
Modulus	0.5 MPa
Tensile Strength	1.5 MPa
Elongation	500%
Peel Strength	89 N/25mm
Movement Capability	±35%
Application Temperature	-10°C to 40°C
Service Temperature	-50°C to 200°C (transient)
Full Cure	14-21 days
Cure Rate	2-3mm in 24 hours, 7mm in 7 days
VOC Content	47 g/L (SCAQMD)
Shelf Life	12 months (below 23°C, 50% RH)
Specific Gravity	1.0 - 1.03
Coverage	Approximately 16 lineal metres per 300ml cartridge based on an average joint size of 6mm depth and 3mm width
UV Resistance	ASTM C792

Glazing

Two-Sided Structural Glazing

When installing glass facades or panels requiring high structural performance and durable glass-to-frame bonding.

This high-modulus silicone provides superior adhesion, dynamic movement capacity, and UV stability for critical structural glazing applications.

AS-1288:2006 compliant
ASTM C1184, Type S, Use G
±35% dynamic movement
89N/25mm peel strength glass

Civil Construction

Weather Sealing Building Facades

When sealing exterior curtain walls, composite panels, or building facades exposed to significant weather and joint movement.

Its high movement capability and excellent UV stability ensure long-lasting weather protection and durability for building envelopes.

ASTM C920 Class 35
±35% dynamic movement
Nil slump
UV stable to ASTM C792

Waterproofing

Potable Water Tank Sealing

When manufacturing or repairing tanks intended for the storage of drinking water.

Approved for drinking water contact, this neutral cure silicone provides a safe, durable, and elastomeric seal crucial for health and compliance.

AS/NZS4020 approved
Drinking water use (Translucent, Grey)
Neutral cure chemistry
-50°C to 200°C service
