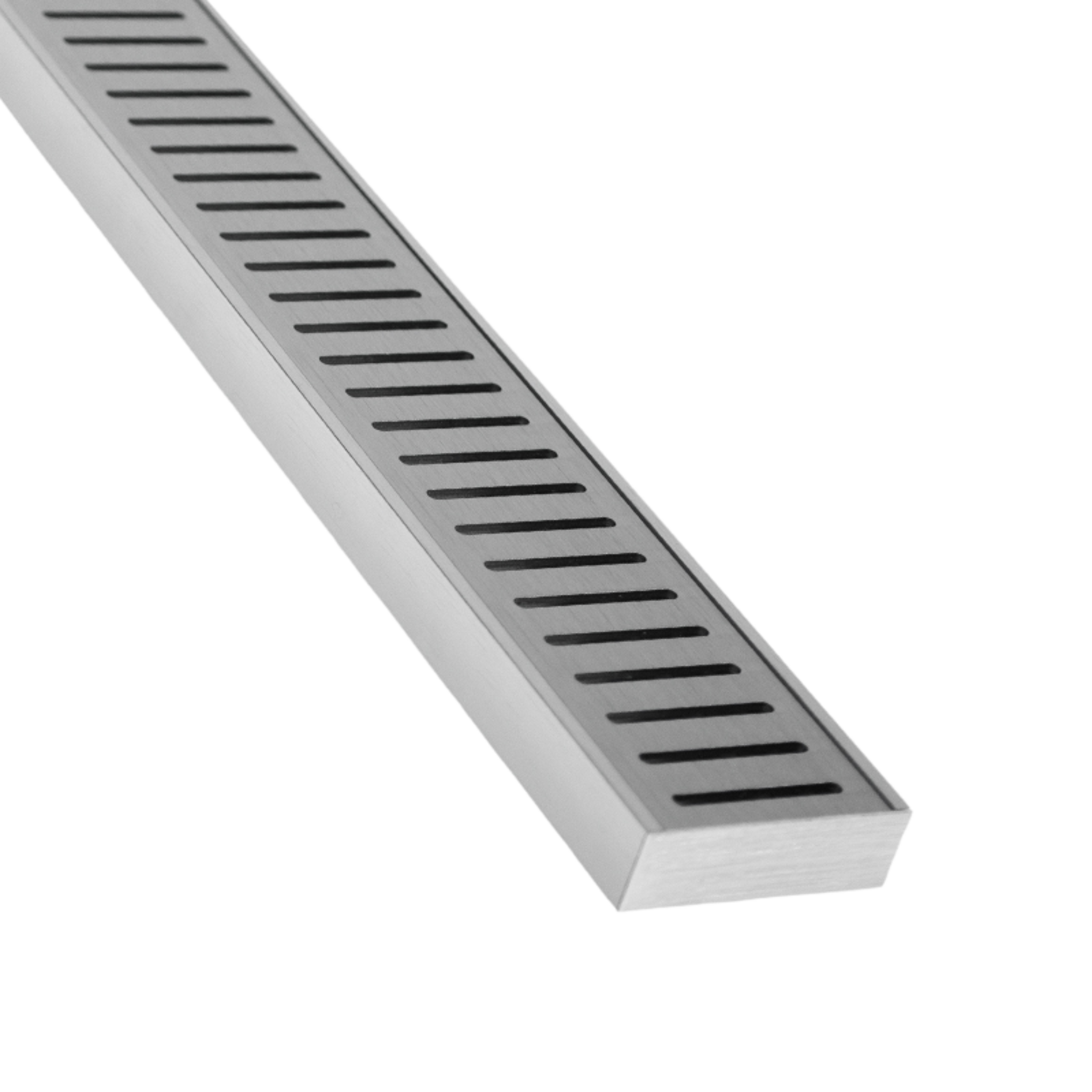

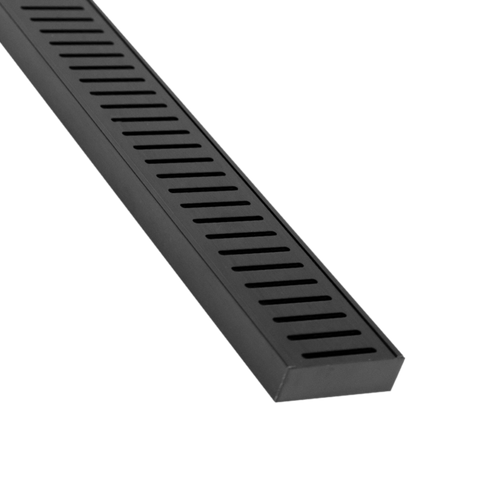

Lauxes Grates Standard Floor Grate is an anodised aluminium drainage system engineered for high-traffic residential and commercial wet zones. This 23mm deep profile features a Class B load rating of 10.2 tons and 100% UV stability, ensuring structural integrity in exposed coastal or outdoor environments.
The system eliminates subfloor plumbing modifications by allowing the waste outlet to be positioned anywhere along the tray, while its onsite trimmable design and seamless joiners accommodate continuous runs. When planning installations, account for 200mm of anodising wastage on 3m and 5.6m lengths and avoid acidic tile washes to prevent finish failure.
Frequently Asked Questions About Lauxes Grates Standard Floor Grate
Q: Can I cut the Lauxes Grates Standard Floor Grate to size onsite?
A: Yes, the SFG is designed to be cut easily onsite using a standard aluminium cutting saw, making it highly adaptable to custom lengths and last-minute changes on the job.
Q: Does the SFG require any special plumbing for installation?
A: No. One of the standout features of this grate is that no major plumbing is required. The waste outlet can be positioned anywhere along the base tray for ultimate flexibility.
Q: Is it suitable for outdoor applications like balconies or pool areas?
A: Absolutely. The grate is 100% UV stabilised and comes with a Lifetime Rustproof Warranty, making it ideal for exposed areas and harsh Australian conditions.
Q: How do I clean the Lauxes Grates Standard Floor Grate?
A: The top grate is easily removable, allowing fast and simple cleaning of both the grate and the waste channel beneath using standard household tools or a pressure hose.
Q: Can I join multiple grates together?
A: Yes, the system is designed to be seamlessly extended beyond 5.6 metres using Lauxes joiners, allowing full customisation without compromising on aesthetics or performance.
Use Lauxes Grates Standard Floor Grate for:
- Balcony drainage with no visible rust or water staining
- Shower and bathroom floors requiring sleek and functional drainage
- Commercial wet areas where cleanliness and durability are priorities
- Outdoor kitchens and entertainment areas exposed to the elements
Why Use Lauxes Grates Standard Floor Grate:
- Lifetime rustproof warranty ensures it lasts in coastal and humid areas
- Fast, flexible installation saves on labour and plumbing costs
- Stylish appearance suits modern builds and designer finishes
- UV-stabilised for colour retention and long-term outdoor use
How to apply Lauxes Grates Standard Floor Grate:
- Measure the area and cut the grate to size using a mitre saw or aluminium blade.
- Dry-fit the grate into the recess or trench to ensure accurate placement and outlet alignment.
- Position the waste outlet along the base tray where needed and secure it to drainage pipework.
- Seal ends with silicone if required, and ensure a slight fall for effective water flow.
- Snap the top grate into place after verifying drainage performance and alignment.
Lauxes Grates Standard Floor Grate limitations:
- Not designed for heavy vehicle traffic – use reinforced steel grates for driveways or industrial zones.
- May require bedding mortar for uneven surfaces – levelling is essential for optimal performance.
Safety precautions when using Lauxes Grates Standard Floor Grate:
- Personal Protective Equipment: Use gloves and safety glasses when cutting aluminium on site.
- Ventilation: No ventilation requirements – no chemicals or adhesives are involved.
- Handling: Store flat and handle with care to prevent denting or edge damage.
- First Aid: For cuts or abrasions during cutting, follow standard wound care as per Safe Work Australia.
Lauxes Grates Standard Floor Grate can be used on the following substrates:
- Concrete – ideal for slab floors and outdoor installations
- Tile – suits bathroom and balcony tiled surfaces
- Vinyl – compatible with vinyl flooring using edge trims
- Stone – perfect for stone finishes in wet rooms and luxury spaces
Download Lauxes Grates Standard Floor Grate Documents
| Document | Type | Download |
|---|---|---|
| Lauxes Grates Standard Floor Grate Technical Data Sheet | TDS |
