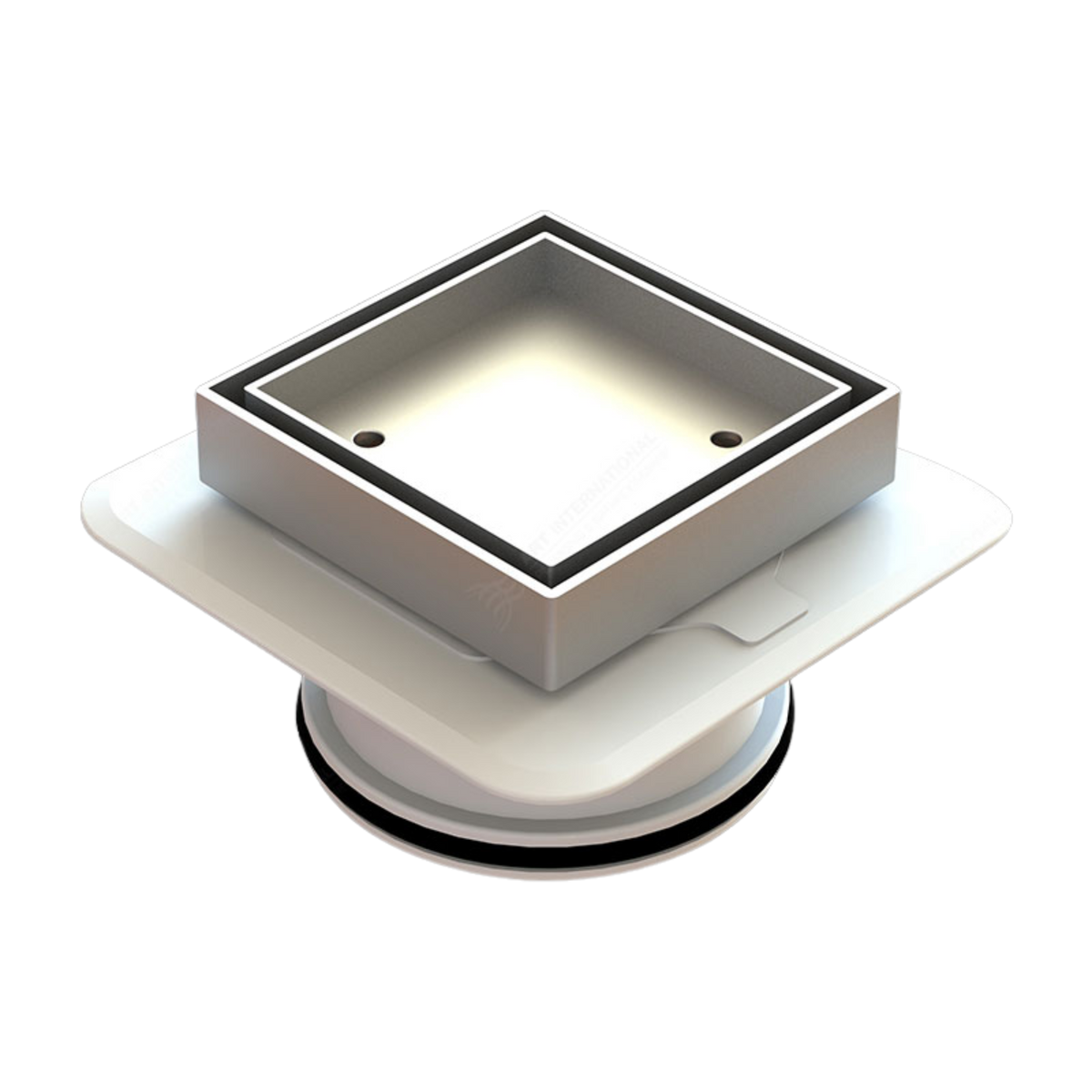

Square Bermuda Lowline Megaflex™ Floor Waste – 100x100mm is a professional-grade drainage solution engineered for internal tiled wet areas where minimal screed depth is critical. This solid brass unit incorporates an ABS Megaflex™ base that provides a ±10mm lateral tolerance, allowing installers to compensate for misaligned pipe risers without stressing hydraulic connections or re-coring slabs.
To maintain watertight integrity and prevent delamination, the low-profile flange supports consistent membrane adhesion and penetration sealing, while the solvent-weld compatible base ensures a permanent chemical bond to the drainage system.
Frequently Asked Questions
Can I install the Square Bermuda Lowline Megaflex™ directly into a screeded floor?
Yes. The Megaflex™ ABS base is designed for screeded floors and slab installations. It allows minor adjustment to accommodate misalignment, making it ideal for retrofits or new builds with limited slab depth. Always ensure the waste is securely embedded before tiling.
What finishes are available for the Square Bermuda Lowline Floor Waste?
The grate is available in Chrome, Matt Black, Brushed Gold, Brushed Nickel, and Polished Brass (Raw/Living Finish). These finishes are chosen to coordinate with modern tapware and bathroom accessories for a cohesive design outcome.
What size outlet should I choose for my project?
The Square Bermuda Lowline is offered with 50mm, 80mm, or 100mm outlets. For residential bathrooms, 50mm or 80mm is typically sufficient. For high-flow commercial or disabled-access wet areas, the 100mm outlet provides added capacity.
Is the Megaflex™ base compatible with solvent cement?
Yes. The Megaflex™ base is made from ABS plastic, which is solvent-weld compatible. Use an approved ABS solvent cement when bonding to pipework. Avoid twisting the base during installation to preserve internal seals.
How do I protect the raw brass finish during install?
The Polished Brass (Raw/Living Finish) will naturally oxidise and patina over time. To preserve its appearance, use a soft cloth and mild soap during cleaning. Avoid harsh abrasives or acidic cleaners. Protect the grate during tiling and grouting to maintain surface integrity.
Applications & Benefits
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Residential bathroom floor drainage | Low-profile design suits limited screed depth and matches tile lines perfectly | Plumbers, Builders |
| Architecturally designed wet areas | Multiple premium finishes support seamless bathroom design aesthetics | Designers, Specifiers |
| Multi-residential unit installations | Standard 100x100mm footprint and flexible Megaflex™ base reduce install time | Commercial Builders, Plumbers |
| Aged care and accessible bathrooms | Wide outlet options (including 100mm) allow higher capacity for compliance | Hydraulic Consultants, Builders |
| Designer renovations with living finishes | Raw polished brass patinas naturally for a high-end, evolving look | Interior Designers, Renovation Builders |
Applying Square Bermuda Lowline Megaflex™ Floor Waste – Enhanced Protocols & Best Practices
-
Prepare Floor Substrate
Ensure the floor substrate is structurally sound, clean, and dry. Confirm fall is formed correctly toward the waste location before applying membranes or adhesives.
Concrete Slab
Grind surface clean of laitance. Confirm no pooling occurs at the intended floor waste location.
Timber Subfloor with Screed
Use compressed fibre cement sheeting and form screed to required fall. Waterproof as per AS 3740.
Timing: Allow screed or slab to fully cure (min. 24–48 hours) before fitting Megaflex™ base.Pro Tip: Mark exact centre of pipe riser to pre-align base position before pouring screed. -
Install Megaflex™ Base
Fit the Megaflex™ base to the pipework using approved ABS solvent cement. Press base firmly into position while aligning vertical tolerance.
Solvent Cement Method
Apply ABS-grade solvent evenly to both the pipe and base socket. Insert and hold for 10 seconds to set.
Dry Fit (Inspection Stage Only)
Temporarily place base for height check, then remove and re-apply solvent cement for final fix.
Timing: Cure time for ABS solvent cement: 30 minutes minimum before further works.Pro Tip: Do not overtighten or twist the Megaflex™ body; use vertical pressure only. -
Apply Waterproofing Membrane
Install membrane in compliance with AS 3740. Ensure full coverage around the waste and integrate membrane into the flange where applicable.
Liquid Membrane
Brush membrane into the Megaflex™ base rim, allowing overlap onto the floor for continuity.
Sheet Membrane
Embed fabric around waste with adhesive primer, ensuring tight bond with flange edge.
Timing: Allow full cure of waterproofing before tiling – typically 24–48 hours depending on product used.Pro Tip: Inspect membrane adhesion around the base before tiling to prevent leak paths. -
Fit Brass Grate and Final Finishing
Once tiling is completed and grouted, insert the brass floor waste grate into the Megaflex™ base. Ensure alignment with tiles and test drainage flow.
Push-Fit Grate Method
Align the square grate to tile lines and press downward until seated flush.
Silicone Locking (Optional)
Apply a small bead of neutral cure silicone around the inner lip if required for secure fit in high-traffic zones.
Timing: Allow grout to cure 24 hours minimum before wet testing the installation.Pro Tip: Clean brass finishes using soft cloth and pH-neutral cleaner prior to handover.
Limitations & Safety
Product Limitations
Not suitable for vinyl flooring installations due to grate thickness.
Use low-profile vinyl floor-specific wastes instead.
Raw Polished Brass finish is a living surface and will patina over time — not recommended for clients expecting a permanent high-gloss look.
Do not use acidic cleaners or abrasives on any plated finishes — can permanently damage surface.
Megaflex™ base is only compatible with solvent weld ABS piping — not suitable for push-fit or PVC pressure pipe.
Safety & Handling Requirements
Personal Protective Equipment
Wear cut-resistant gloves when handling brass components. Use eye protection if cutting screed or tile during fitting.
Ventilation Requirements
When using ABS solvent cement, ensure adequate ventilation. Use in open areas or provide exhaust extraction in confined spaces.
Fire & Handling Precautions
ABS cement is flammable — keep away from ignition sources. Store in a cool, dry place out of direct sunlight and away from flame or spark-producing tools.
Emergency First Aid
Eyes:
Flush immediately with clean water for at least 15 minutes. Seek medical attention.
Skin:
Wash thoroughly with soap and water. Remove contaminated clothing.
Inhaled:
Move to fresh air. If symptoms persist, consult a physician.
Swallowed:
Do NOT induce vomiting. Rinse mouth and seek urgent medical assistance.
Seek medical attention immediately in all cases of serious exposure.
Bermuda Lowline Megaflex™ Application Guide
Tile Bed / Screed
Surface Preparation
Ensure all screed areas are fully cured and dimensionally stable. Clean surfaces to remove laitance, dust, and debris. Maintain a flat surface to allow the drain flange to sit flush.
Primer Requirements
No primer typically required
For cementitious screeds in good condition, direct embedment is acceptable. Apply waterproofing as per system requirement before tile application.
PVC or ABS Drainage Systems
Surface Preparation
Cut and clean pipework to ensure a square fit. Use a suitable plastic primer or cleaner to remove manufacturing oils and ensure solvent weld bonding is secure.
Primer Requirements
Primer required for critical applications
Use an approved PVC/ABS primer prior to solvent welding. Ensure full cure time before backfilling or applying mechanical loads.
Vinidex™ PVC PrimerWaterproof Membrane Interface
Surface Preparation
Waterproof membranes must be fully cured and free from contaminants. Ensure the flange of the Bermuda Lowline Megaflex™ integrates securely into the membrane system with no pinholing or bridging.
Primer Requirements
Primer recommended for optimal adhesion
For improved bonding with liquid membranes, prime brass flange with manufacturer-approved primers before membrane application.
Ardex P9 PrimerTimber Subfloors (with tile underlay)
Surface Preparation
Timber must be structurally sound and reinforced with fibre-cement underlay. Fasten securely to prevent movement and seal joints with approved tapes or waterproofing compounds.
Primer Requirements
Primer required for critical applications
Use a moisture barrier primer on timber substrates before waterproofing membrane or flange installation.
Mapei Eco Prim GripDownload Square Bermuda Lowline Megaflex™ Floor Waste – 100x100mm Documents
| Document | Type | Download |
|---|---|---|
| Square Bermuda Lowline Megaflex™ Floor Waste – 100x100mm Technical Data Sheet | TDS |
