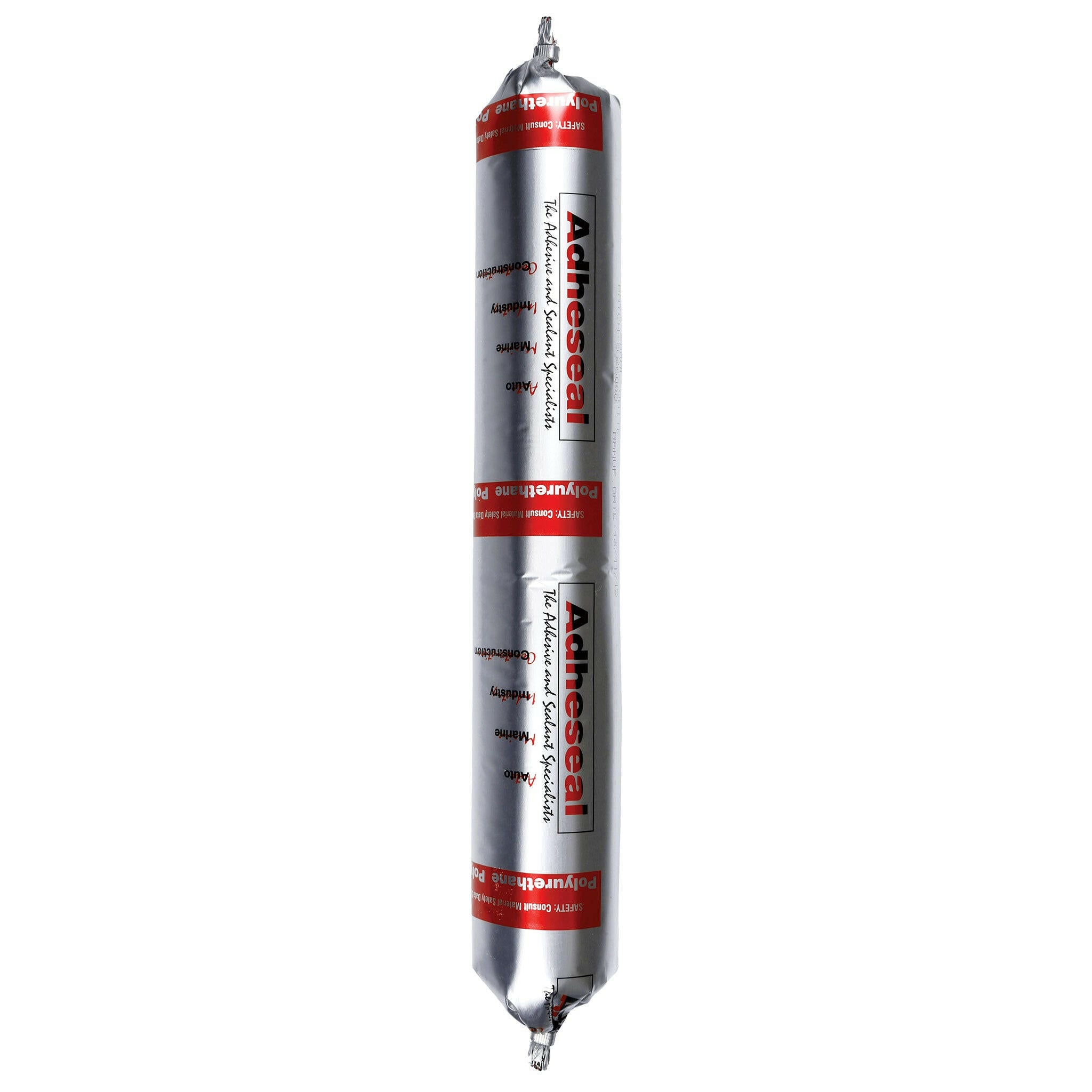

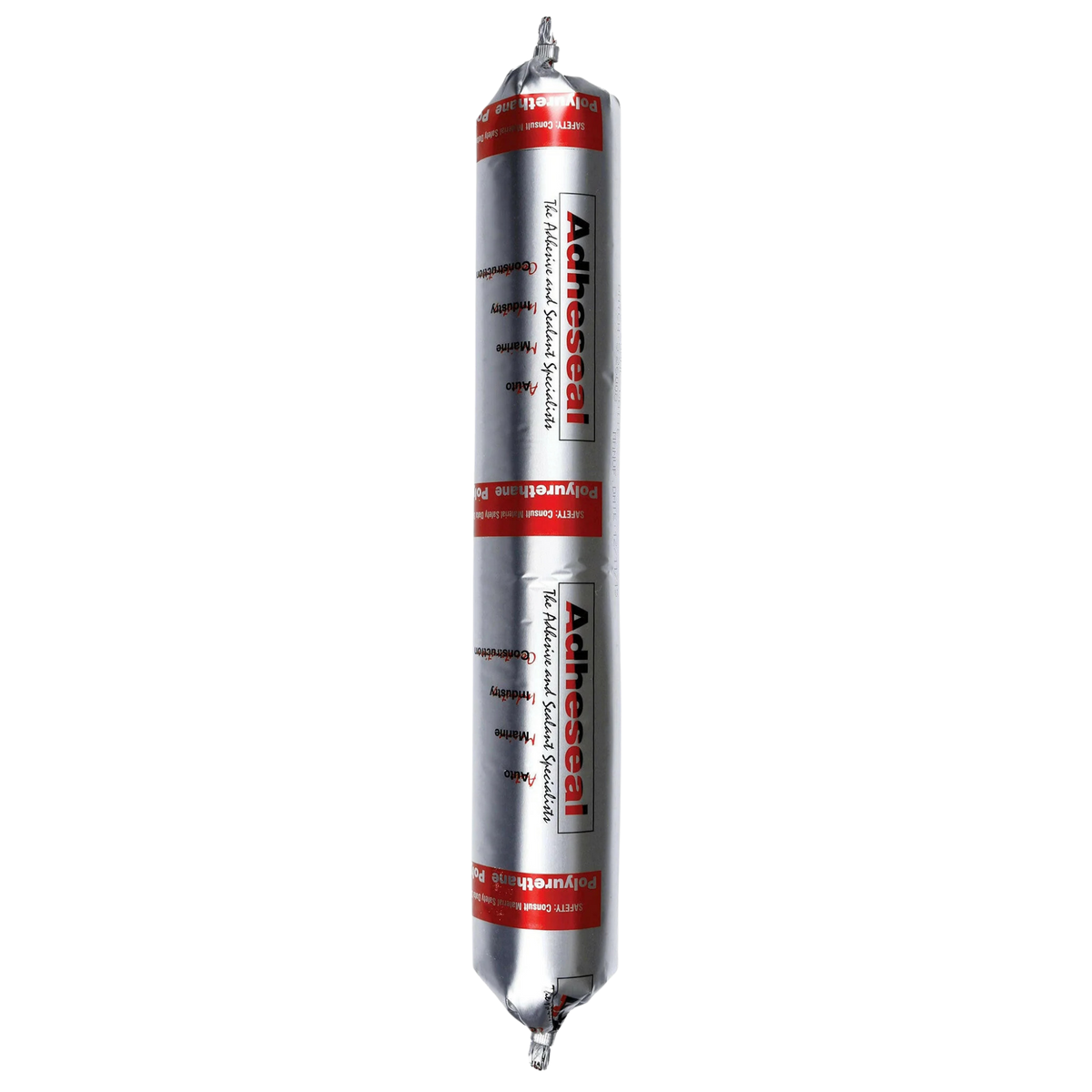

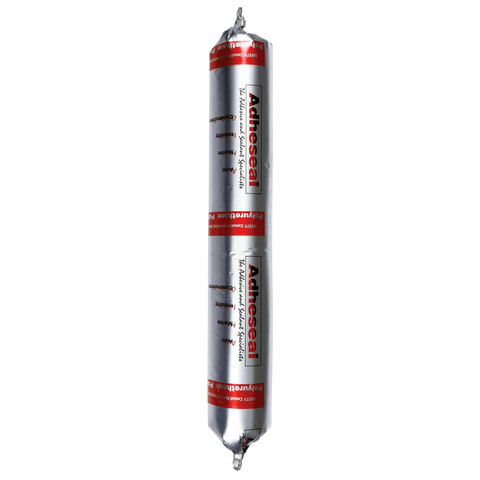

Megaprene 40GG: A Technical Overview
Megaprene 40GG is a single-component, gun-grade polyurethane sealant designed for construction joints requiring flexibility, water resistance, and long-term durability. With ±25% joint movement capability and >400% elongation at break, this moisture-curing sealant provides excellent adhesion to most substrates including concrete, metal, timber, and fibreglass. It’s potable water safe (AS/NZS 4020), non-toxic, paintable, and resistant to fuels, chemicals, UV, and mildew. Once cured, it forms a permanently elastic joint suitable for both indoor and external use in commercial, civil, and transport applications.
>400%
Elongation at Break
Core Features & Specifications
- Elongation at break >400% (ISO 8339)
- Joint movement capability ±25% (ASTM C719)
- Potable water safe — AS/NZS 4020 certified
- Excellent chemical resistance to diluted acids, alkalis, petrol, oil (short-term)
- UV resistant, low ignitability (AS1530.3 rating: 0-1)
- Tear strength: 6.5 N/mm
- Non-toxic, low VOC <1.5g/L (Green Star eligible)
- Shore A hardness: 25
- Service temperature: -40°C to +80°C
- Skin time: ~60 min @ 23°C / Cure: 3mm per 24 hrs
The Megaprene 40GG Advantage
- AS/NZS 4020 potable water compliant — safe for contact with drinking water systems
- Ideal for structural joints exposed to mechanical stress, temperature and UV
- Forms watertight, flexible seal even in chemically aggressive or fuel-prone areas
- Compatible with powder-coated metal, concrete, aluminium, timber, fibreglass, and more
- Single-pack gun-grade format simplifies application — no mixing required
Best Practices: Do's & Don'ts
Do
- Apply between +5°C and +35°C in clean, dry conditions
- Use open-cell backing rod (Adhefoam) or bond breaker tape for joints >10mm deep
- Prime porous substrates with Supaprime for high-performance adhesion
- Tool off with moistened spatula before skin forms (~5–10 min)
- Use masking tape for clean joint edges and remove before sealant skins
Don't
- Do not use in fully confined spaces without atmospheric moisture
- Not suitable for swimming pools or aquariums
- Avoid contact with high-chlorine environments (>5 ppm)
- Do not apply on copper, EPDM, bitumen, or oily/rubber-leaching substrates
- Avoid application on wet, damp, or uncured concrete
Applications in Practice: Trade Scenarios
For Builders & Civil Contractors: Concrete & Pavement Joint Sealing
The Engineering Challenge
Expansion joints in driveways, car parks and precast structures require flexibility, water resistance, and fuel tolerance while exposed to heavy traffic and UV.
The System-Based Solution with Megaprene 40GG
Megaprene 40GG resists water, fuels, and movement. Apply into cleaned and primed joints using backer rod, ensuring full depth fill and avoiding 3-point adhesion.
Best Practice Note
Ensure concrete has cured 28+ days before application. Use polyethylene tape on flat joints to prevent 3-point adhesion.
For Fabricators & Fitout Teams: Acoustic & Cladding Integration
The Engineering Challenge
Architectural wall systems require sealing between dissimilar substrates like powder-coated panels, acoustic tiles, fibreglass, and timber — without shrinkage or bleed.
The System-Based Solution with Megaprene 40GG
Use Megaprene 40GG for a durable, non-staining joint. Prime powder coat and timber where needed, and apply in a smooth continuous bead using a triangular profile.
Best Practice Note
Pre-test on plastics, PVC, and powder-coat. Use a fine abrasive pad and Adheseal 50A for surface prep where required.
Performance Benchmark: Megaprene 40GG vs. Standard Polyurethane
| Metric | Megaprene 40GG | Typical PU Sealant | Advantage |
|---|---|---|---|
| Elongation at Break | >400% High Flex | 250–300% | Wider movement accommodation |
| Tear Strength | 6.5 N/mm Reinforced Seal | 3–4 N/mm | Greater mechanical resistance |
| Potable Water Certification | AS/NZS 4020 Safe Contact | Often not certified | Allows use in water-sensitive zones |
Frequently Asked Questions
What is Megaprene 40GG used for?
Megaprene 40GG is a polyurethane construction sealant for movement joints, perimeter sealing and general bonding work. It is commonly used on windows, curtain walls, precast and tilt-up joints, pavement joints, metal cladding laps, skirting, seam sealing and fabrication work. That broad application range gives trades one reliable product for mixed-material jobs and helps reduce no costly callbacks.
Is Megaprene 40GG compliant with potable water and movement joint standards?
Megaprene 40GG is suitable for contact with potable water and is classified for high-movement sealing work. It is tested to AS/NZS 4020 for potable water contact, meets ASTM C-920, and is classified to ISO 11600 Type F Class 25 LM. That compliance profile gives specifiers and installers stronger performance proof where documentation matters.
Can you use Megaprene 40GG on concrete, metal and powder-coated surfaces?
Megaprene 40GG can be used on concrete, timber, many metals, painted surfaces, fibreglass and powder coat when the surface is prepared correctly. For critical work, adhesion testing is always recommended, and primers or surface prep should be used where specified. That extra step removes doubt and helps you get predictable performance on difficult substrates.
How long does Megaprene 40GG take to skin and cure?
Megaprene 40GG skins in about 10 minutes in application guidance and cures at roughly 3mm per 24 hours under normal conditions. The physical properties table also lists a working time of 25 minutes and skinning time of 60 minutes at 23°C and 50% RH, so site conditions and test method matter. The practical takeaway is simple: tool it promptly and allow cure time to build before loading the joint.
Can Megaprene 40GG be used in swimming pools, aquariums or on stone?
Megaprene 40GG is not recommended for aquariums, internal swimming pool applications or direct use on all stone without stain testing. It is also not suitable for structural glazing, mirror bonding, confined spaces without humidity access, bituminous surfaces, EPDM rubber, or materials that may leach oils or solvents. Respecting those limits is what keeps the job first-time-right.
Applications & Benefits
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Perimeter sealing of windows | Flexible weatherproof seal that handles movement and supports a clean handover | Builders, glaziers, window installers |
| Curtain wall sealing | Durable external jointing with UV-tested performance and reduced crack-out risk | Glaziers, façade contractors, builders |
| Expansion joints in precast / tilt-up panels | Accommodates movement up to ±25%, helping avoid structural joint failure and callbacks | Builders, precast installers, remedial contractors |
| Metal cladding and bolted lap joints | Strong adhesion to common metals and powder coat with waterproof sealing performance | Sheet metal workers, fabricators, builders |
| Pavement joints, car parks and driveways | Flexible jointing with intermittent fuel spill resistance for tougher service areas | Civil crews, builders, maintenance contractors |
| Floor mouldings and skirting boards | Sealant and adhesive versatility simplifies installation and reduces product changes | Carpenters, fitout teams, builders |
| Acoustic ceiling tiles and seam sealing | Easy gunning and tooling help maintain neat lines and faster completion | Fitout contractors, builders, fabricators |
| Vehicular and marine manufacturing | Elastic seal with fibreglass and mixed-substrate compatibility for dependable bonded joints | Marine fabricators, vehicle body builders, manufacturers |
Applying Megaprene 40GG: Enhanced Protocols & Best Practices
-
Surface Preparation
Start with a clean, dry, structurally sound surface. Remove dust, grease, curing compounds, release agents and any contamination that can compromise adhesion.
Porous substrates
Allow concrete to cure for at least 28 days. Prime critical porous surfaces with Everflex Supaprime where required.
Non-porous substrates
Use a fine abrasive pad where suitable, then clean using the two-wipe process and prepare with Adheseal 50A Surface Prep for critical applications.
Timing: After priming, allow not less than 30 minutes and not more than 2 hours before applying sealant.Pro Tip: Mask the joint edges before gunning if presentation matters. It saves cleanup time and helps leave a sharp, professional line. -
Set the Joint Correctly
Correct joint geometry is what lets the sealant move properly and stay bonded under load.
Joint design
Aim for a 2:1 width-to-depth ratio where possible. Internal joints should be minimum 5mm wide and deep, and external joints minimum 12mm.
Depth control
For joints deeper than 10mm, use open cell backing rod about 25% larger than the joint width. Where backer rod cannot fit, use bond breaker tape to stop three-sided adhesion.
Timing: Apply only when substrate and ambient conditions are between 5°C and 40°C.Pro Tip: If you let the bead bond to three faces, movement stress has nowhere to go. Fix the joint design first and the seal will last longer. -
Apply as a Sealant
For sealing work, cut the nozzle at a 45-degree angle to suit the bead size, load the sausage and gun the sealant by pushing it ahead of the nozzle.
Bead control
Keep the nozzle in contact with both sides of the joint and maintain a steady continuous bead so the sealant is pressed firmly into place.
Air entrapment prevention
Fill the joint completely and avoid trapping air, as entrapped air can form bubbles in the cured sealant.
Timing: Tool off before the skin forms, approximately 5 minutes after application guidance conditions.Pro Tip: Push the bead, do not drag it. That helps wet both sides of the joint properly and improves adhesion where it counts. -
Apply as an Adhesive and Finish Cleanly
For adhesive use, cut the nozzle to form a triangular bead and compress the joined surfaces evenly.
Adhesive bead
Cut the nozzle at 90 degrees to bead width, then cut a wedge twice the bead height. Apply a steady triangular bead and compress surfaces to no less than 2mm.
Cleanup and finish
Tool with a moistened spatula for a smooth finish. Clean wet excess with Xylene. If cured residue remains, soften with solvent and scrape carefully.
Timing: Approximate cure rate is 3mm per 24 hours, depending on atmospheric conditions and substrate porosity.Pro Tip: Remove masking tape while the sealant is still wet. You get a neater line and spend less time fixing the finish.
Limitations & Safety
Product Limitations
Not suitable for totally confined spaces because the sealant needs atmospheric humidity to cure.
Not suitable for aquariums or internal swimming pool applications. Avoid high chlorine exposure above 5ppm.
Not recommended for structural glazing.
N-80 or N-60 glazing silicone
Not recommended for adhering mirrors.
Hi-Power/MS609
Do not use on all stone without stain testing. Copper and brass may discolour on contact.
Do not use on bituminous surfaces, natural rubber, EPDM rubber, or anywhere oils, plasticisers, solvents or aggressive cleaners may leach into the sealant.
Avoid application where moisture vapour transmission is emerging from the substrate or where air entrapment may cause bubbling.
Safety & Handling Requirements
Personal Protective Equipment
Wear gloves, apron, safety glasses and suitable protective clothing. Available information suggests nitrile rubber gloves are suitable for intermittent contact. Wash hands before eating, drinking or smoking, and clean contaminated clothing before reuse.
Ventilation Requirements
Use with adequate ventilation. Where inhalation risk exists, wear an organic vapour and particulate respirator meeting AS/NZS 1715 and AS/NZS 1716 requirements.
Fire & Handling Precautions
Handle in suitable and safe working conditions. Keep work areas controlled and avoid unsafe exposure. Read all relevant technical and safety data before use.
Emergency First Aid
Eyes:
Rinse opened eye for several minutes under running water, then seek medical advice.
Skin:
Wash immediately with water and soap and rinse thoroughly.
Inhaled:
Move the person to fresh air, keep warm, provide artificial respiration if required, and seek medical advice if symptoms persist.
Swallowed:
If swallowed, do not induce vomiting. Seek medical advice immediately.
Seek medical attention immediately in all cases of serious exposure.
Megaprene 40GG Application Guide
Concrete, masonry, brick and cement-based renders
Surface Preparation
Surfaces must be sound, dry, clean and free from dust, oils, curing compounds and loose material. Concrete should cure for at least 28 days before sealing. Keep the substrate free from surface water and continual dampness to avoid bubbling and adhesion loss.
Primer Requirements
Primer recommended for optimal adhesion on porous substrates and critical work
For critical high-performance joints, prime porous substrates by brush and allow not less than 30 minutes and not more than 2 hours before applying the sealant.
Everflex SupaprimeAluminium, stainless steel, galvanised steel, powder coat, glazed tiles and waterproof membranes
Surface Preparation
Lightly roughen the surface with a fine abrasive pad where suitable. Clean with the two-wipe method using clean cloths and change cloths regularly. Remove all contamination before sealing.
Primer Requirements
Surface prep recommended for critical applications
Pre-treat non-porous substrates and allow a minimum of 30 minutes and maximum of 2 hours before application. Adhesion testing is advised on plastics and specialty metals such as copper, brass and titanium-zinc.
Adheseal 50A Surface PrepTimber, painted surfaces, rubber and fibreglass
Surface Preparation
Ensure the substrate is stable, dry and clean. Remove loose coatings, oils and dust. Carry out preliminary adhesion testing before full application, especially on coated or specialty surfaces.
Primer Requirements
Primer often not required, but testing is strongly recommended
Because field conditions vary, use adhesion testing to confirm the system before production work. This is the smart move when appearance and long-term hold both matter.
Download Adheseal Megaprene 40GG Documents
| Document | Type | Download |
|---|---|---|
| Adheseal Megaprene 40GG Technical Data Sheet | TDS | |
| Adheseal Megaprene 40GG Safety Data Sheet | SDS | |
| Adheseal Megaprene 40GG Supporting Document | Support |
