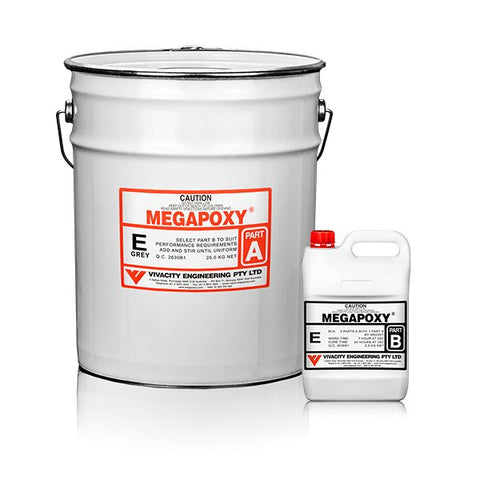

Megapoxy E Epoxy (2 Part Kit)
Megapoxy E is a high-impact epoxy resin designed for electrical castings, providing excellent mechanical strength and superior electrical properties for temperatures up to 150°C.
Attention: This product is classified as a dangerous good. Shipping costs will be adjusted accordingly.
- $479.25
- $479.25
- Unit price
- per
Prices do not include GST
Physical Properties
Mixing ratio by weight:
Resin: 5:10, hardener: 1:1
Mixing ratio by volume:
Resin: 3:6, hardener: 1:1
Density mixed:
1.55 g/cm³ (hardener e), 1.6 g/cm³ (hardener 155)
Working time at 25°c:
60 minutes (hardener e), 30 minutes (hardener 155)
Minimum curing time at 25°c:
24 hours
Ultimate compressive strength:
80 mpa (hardener e), 100 mpa (hardener 155)
Martens heat distortion temperature:
65°c (hardener e), 127°c (hardener 155)
Dielectric strength 50hz, 25°c:
18kv/mm (hardener e), 19kv/mm (hardener 155)
Availability:
25 kg packs for resin component part a, 5 kg packs for hardener part b, 2.5 kg packs for hardener 155
Couldn't load pickup availability
Shipping & Delivery
**$15.95 + GST for Australia-wide shipping, excluding DG, oversized or long-length items, and bagged items weighing 15kg or above. If your order includes any of these, you will be contacted to arrange additional freight fees
Megapoxy E is a high-impact epoxy designed for electrical castings for room or elevated temperature service applications. It is recommended for encapsulating instrument transformers, lighting transformers, small power transformers, and coils in the electrical and electronic industries. Megapoxy E is suitable for casting electrical switchgear components and for mechanical and chemical resistant applications, offering excellent static and dynamic mechanical properties as well as superior electrical and dielectric properties.
Key Features
- High-impact epoxy resin with superior mechanical properties
- Exceptional electrical and dielectric properties
- Suitable for room or elevated temperature service up to 150°C
- Versatile mixing ratios for different applications
- Available in various packaging sizes for ease of use
Suitable Substrates
- Electrical components
- Transformers and coils
- Switchgear components
Uses
- Encapsulation of instrument transformers, lighting transformers, and small power transformers
- Electrical and electronic components casting
- Electrical switchgear components manufacturing
- Mechanical and chemical-resistant applications
Benefits
- Provides high impact resistance, ensuring longevity and durability of cast components
- Maintains structural integrity under high temperatures, up to 150°C with appropriate hardener
- Offers excellent electrical insulation, ideal for critical electrical applications
- Adaptable for various applications with different hardener options
Application Guide
- Mix Megapoxy E Part A with Hardener E for applications up to 80°C or with Hardener 155 for applications up to 150°C.
- Follow the mixing ratio by weight (Resin: 5:10, Hardener: 1:1) or by volume (Resin: 3:6, Hardener: 1:1).
- Ensure thorough mixing for uniformity and effectiveness.
- Apply the mixed epoxy to the desired components, allowing a minimum curing time of 24 hours at 25°C.
- If using Hardener 155, post-cure by slowly raising the temperature to 150°C.
Limitations
- Not suitable for use at temperatures exceeding 150°C
- Requires controlled curing conditions for optimal performance
