Use NeXT Generation 26 (NXT26) for: Premium linear drainage in bathrooms, balconies, poolside, or alfresco areas—indoors or outdoors—where water tracking, rust, or UV damage are concerns.
Engineered from anodised aluminium with UV-stable finishes, the NeXT Generation 26 (NXT26) redefines linear drainage solutions across residential, commercial, and civil applications. At 26mm deep and 100mm wide, it’s ideal for flush floor installations including tiled showers, balconies, or outdoor patios. Its anti-tracking design prevents water migration beneath tiles, a common issue in high-traffic and wet zones.
Primer Information: As a mechanical grate system, the NXT26 does not require chemical primers. However, it is compatible with waterproofing membranes and bonding adhesives if sealing is required around the base tray.
Cure Time: N/A — Mechanical installation only. Any bonding adhesives or waterproofing membranes used in conjunction should be cured per manufacturer specs (typically 12–24 hours).
Coverage Rate: Supplied in standard 1 metre and 5.6 metre lengths. For longer runs, sections can be seamlessly joined using Lauxes joiners. We also offer custom-cut lengths to suit your project specifications—just contact us before ordering. Alternatively, units can be easily cut onsite to fit exact dimensions with minimal wastage.
Application Temperature Range: Functional across -20°C to 80°C (-4°F to 176°F). Ideal for both cold southern climates and harsh tropical or arid zones in Australia.
Chemical Properties: Constructed from corrosion-resistant anodised aluminium with UV-stabilised colour finishes to protect against oxidisation and salt-air degradation. Fully recyclable and non-reactive with most sealants, adhesives, and waterproofing products.
Key Features of NeXT Generation 26 (NXT26)
- 26mm low-profile depth ideal for retrofits or new builds
- Customisable outlet positioning for flexible plumbing configurations
- Anti-tracking technology prevents under-tile water migration

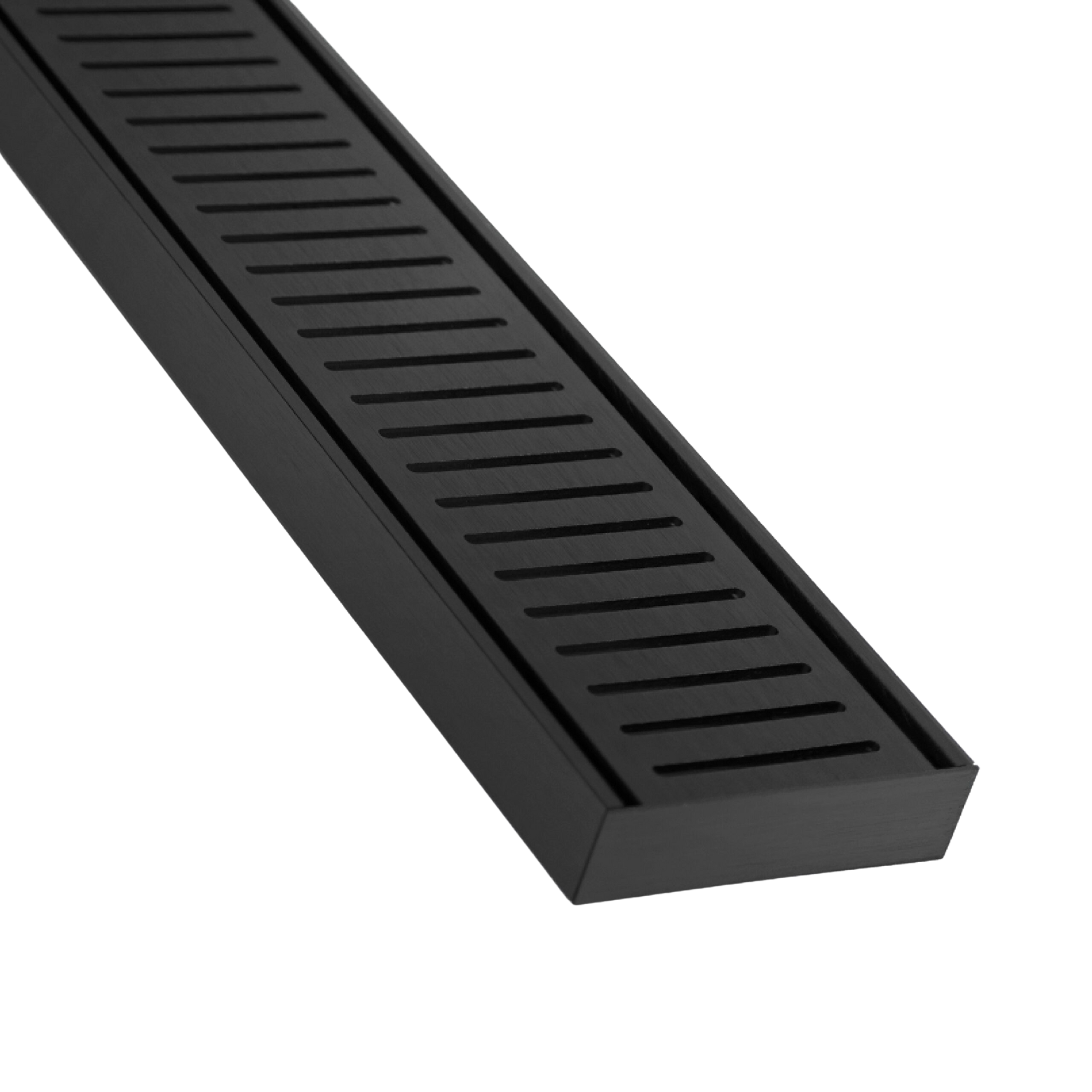

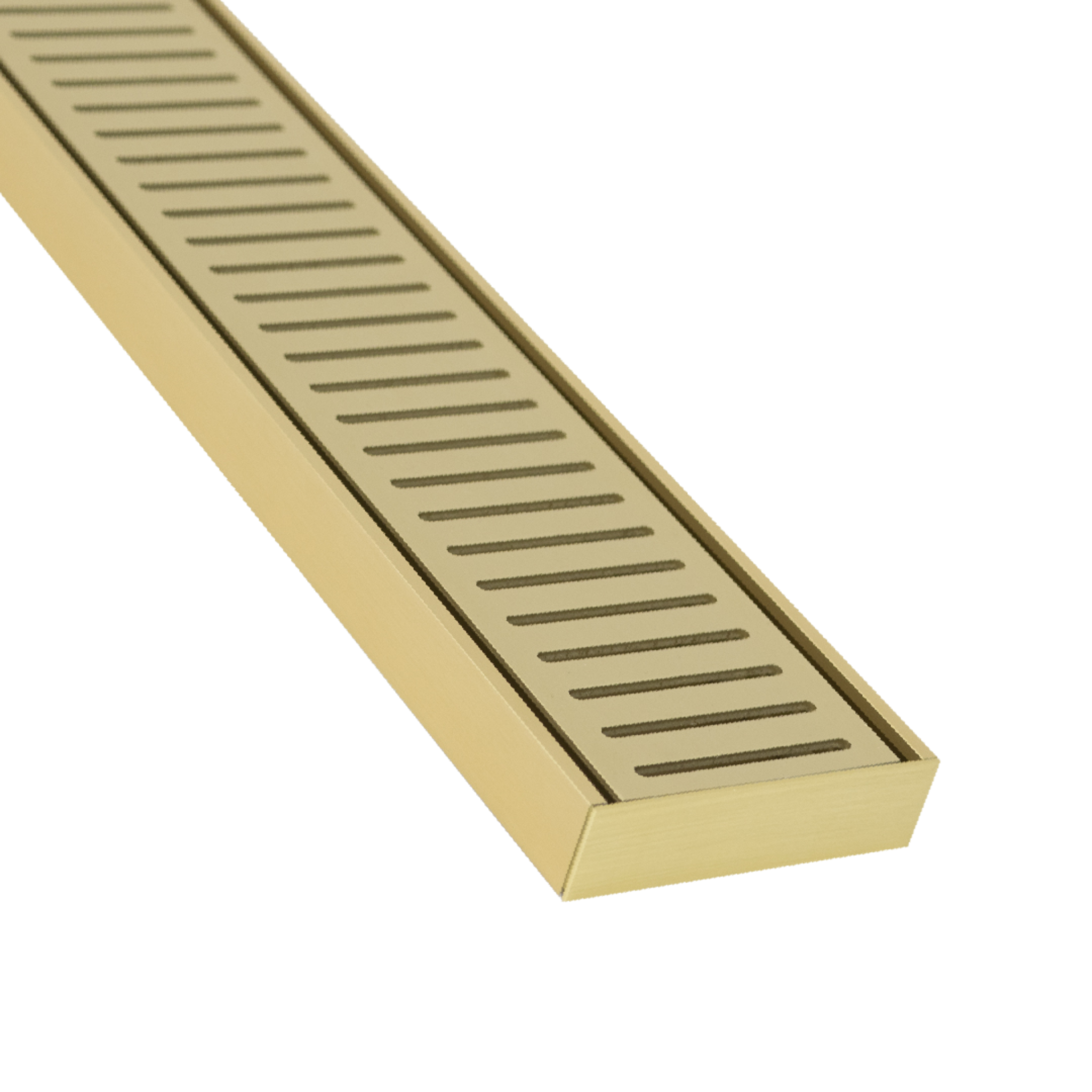

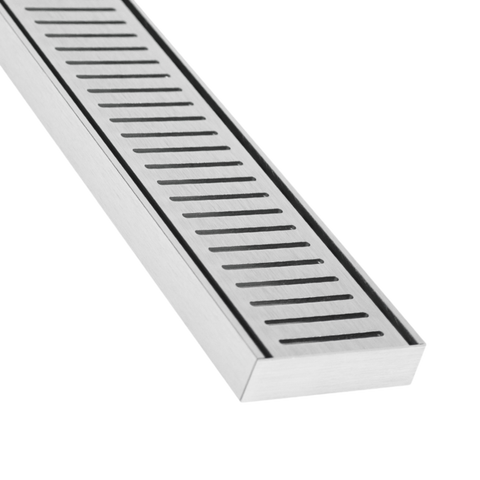

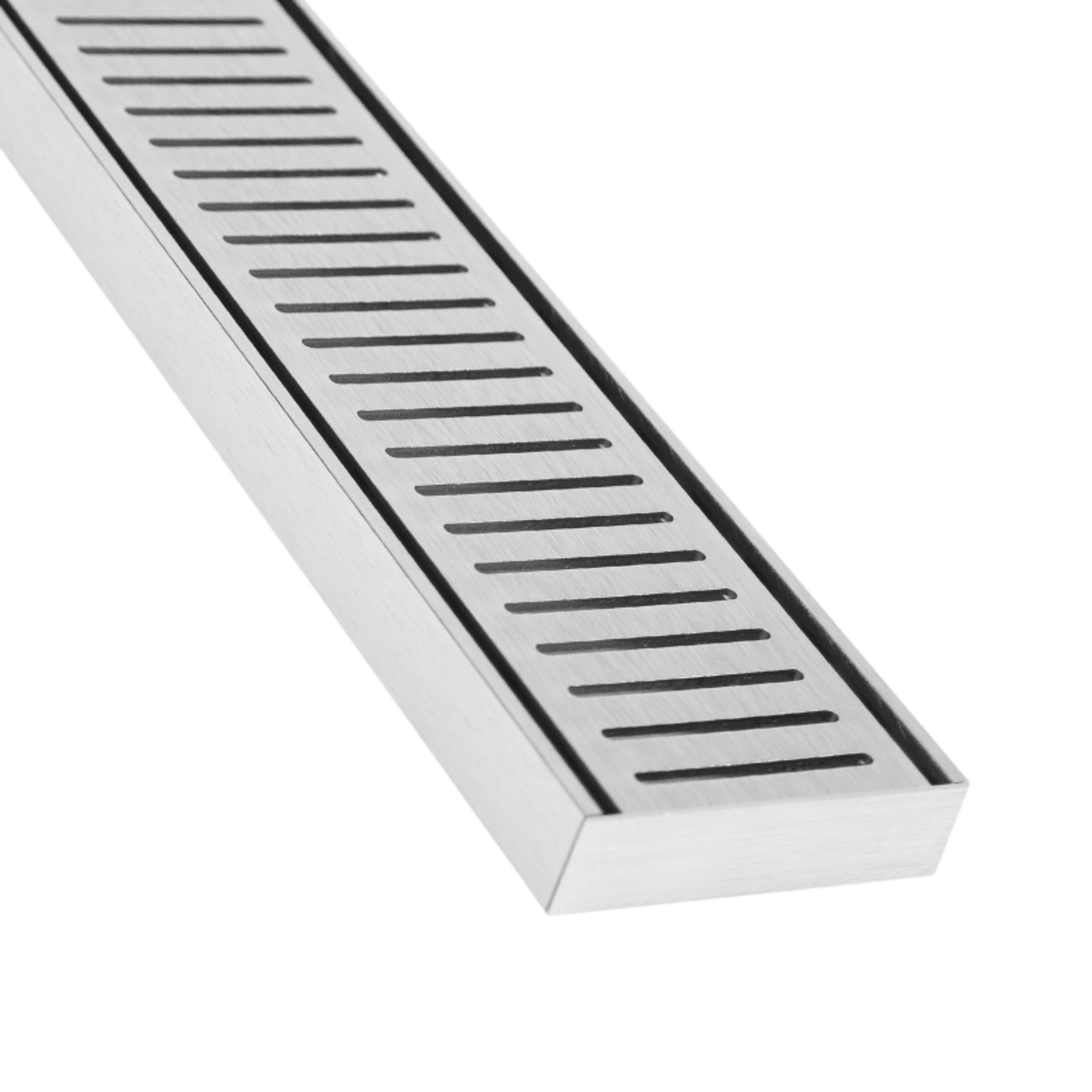

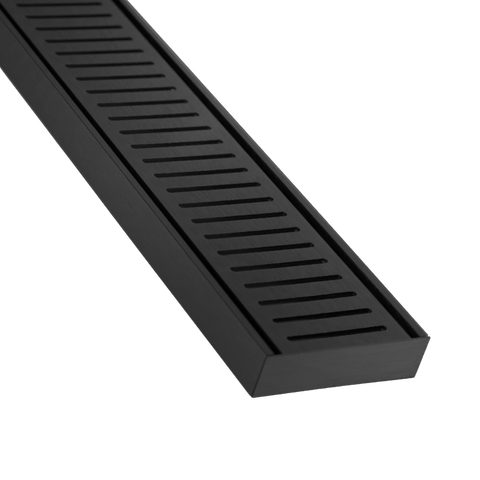

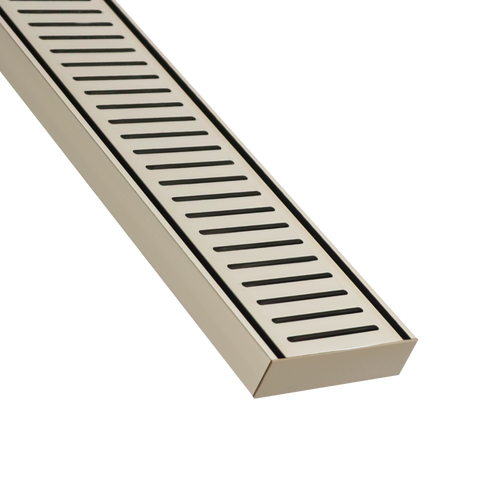

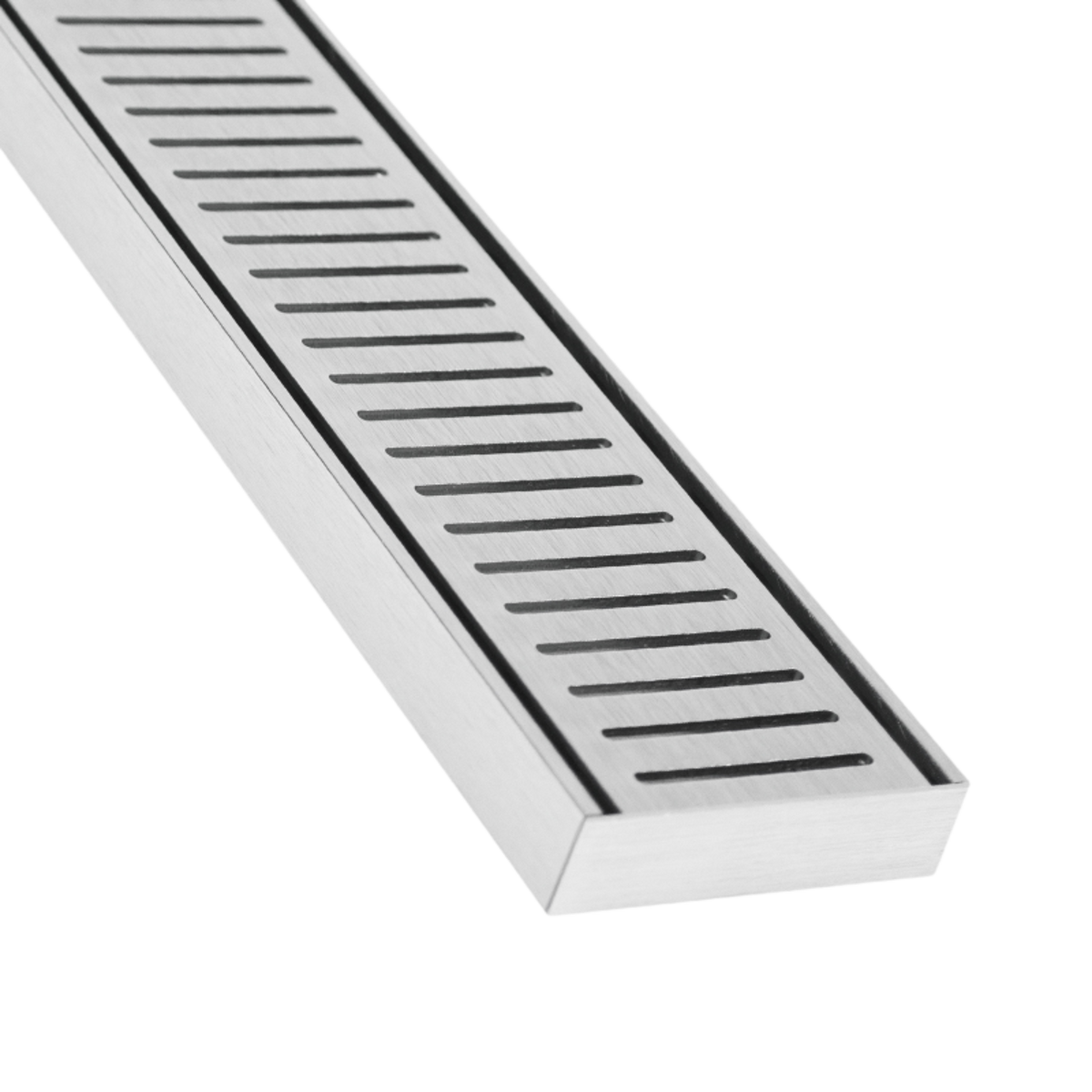

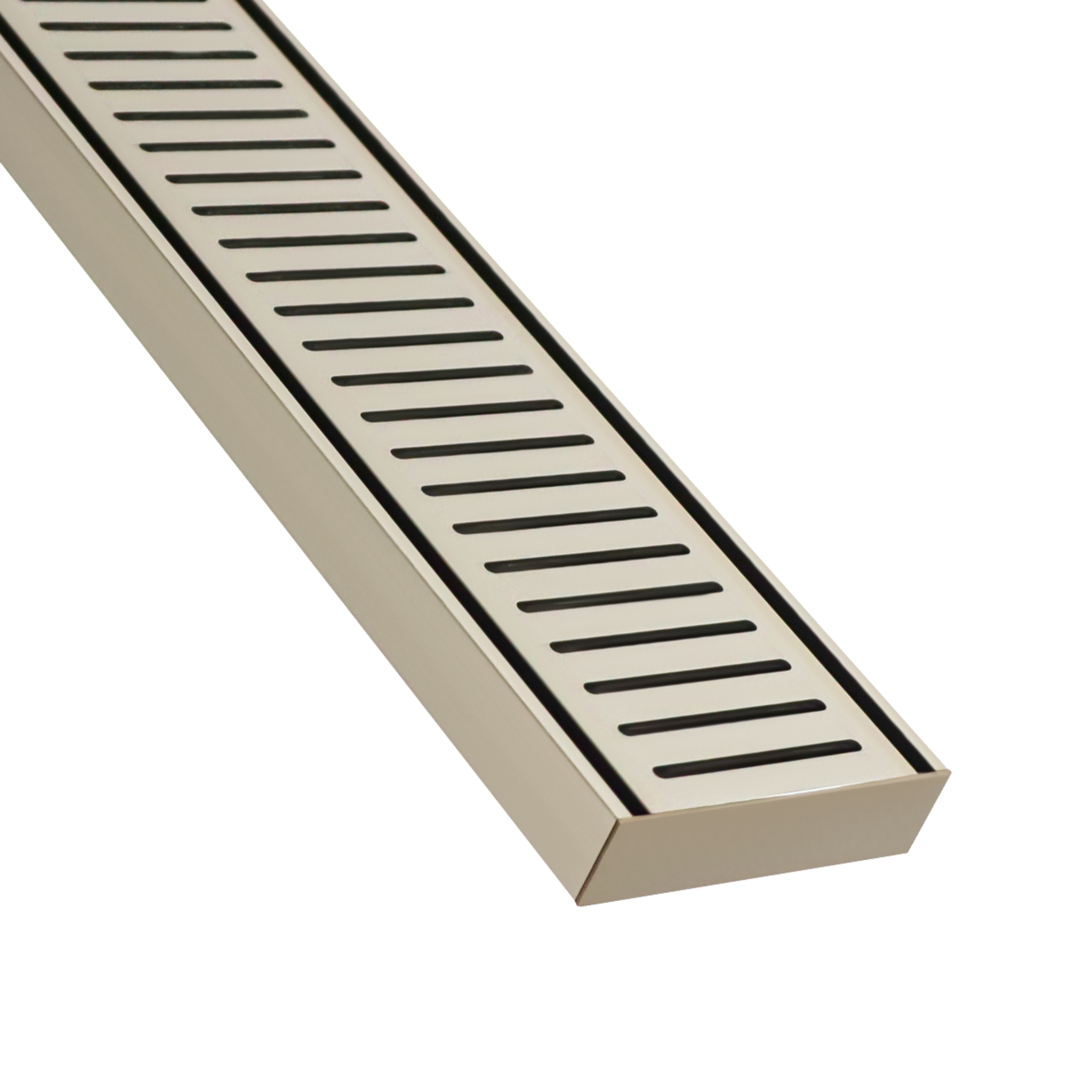

- Available in Silk Silver, Matte Gold, Midnight Black, and Brushed Nickel
- UV Stable and backed by a 25-year anti-fade warranty
- Rustproof anodised finish for use in coastal and wet environments
- Tool-free roll-out design enables easy cleaning and maintenance
Why Choose NeXT Generation 26 (NXT26):
- Zero rust maintenance over its lifetime — perfect for coastal areas
- Custom-cut onsite with basic tools — saves time and labour
- Sleek and modern finish — perfect for luxury residential and commercial builds
- Efficient drainage without visual interruption — discreet and functional
Frequently Asked Questions About NeXT Generation 26 (NXT26)
Q: Can the NXT26 be used on balconies or outdoor patios?
A: Yes, it’s fully UV stable and rustproof, making it ideal for any outdoor applications including balconies, alfresco areas, and even pool surrounds.
Q: How do I clean the grate?
A: The roll-out feature allows for easy access to internal drainage. Simply roll the grate up and clean with a soft brush and hose.
Q: Can it be cut on-site?
A: Absolutely. It is designed for easy onsite cutting using a drop saw or hacksaw. Always deburr edges after cutting.
Q: Will it rust over time in coastal areas?
A: No. It carries a Lifetime Rustproof Warranty and is manufactured from anodised aluminium, ideal for salt air environments.
Use NeXT Generation 26 (NXT26) for:
- Indoor linear shower drains
- Outdoor patios and pool edges
- Balcony drainage
- Commercial bathrooms and wet zones
Why Use NeXT Generation 26 (NXT26):
- Rust-free for life – ideal for high-moisture zones
- 25-year fade warranty – great for exposed installations
- Faster onsite adjustments – cut, connect and drain with ease
How to apply NeXT Generation 26 (NXT26):
- Measure and cut the grate to length using a drop saw. Deburr edges for safety and aesthetics.
- Set the tray in place over waterproofed substrate. Ensure even support along the length.
- Position waste outlet anywhere along the tray and connect to compatible drainage.
- Install grate cover by rolling in place. Adjust finish height to align with tile or floor level.
- Clean with soft cloth after installation to remove residue or debris.
NeXT Generation 26 (NXT26) limitations:
- Minimum installation depth is 26mm – unsuitable for ultra-slimline floor designs
- May require tray packing for uneven screeds – always check with a level before installation
Safety precautions when using NeXT Generation 26 (NXT26):
- Personal Protective Equipment: Gloves, safety glasses when cutting aluminium
- Ventilation: Not required for product, but adhesive use may require ventilation
- Handling: Handle with care when cut to avoid sharp aluminium edges
- First Aid: Rinse eyes immediately if debris enters during cutting; seek medical attention if needed
NeXT Generation 26 (NXT26) can be used on the following substrates:
- concrete – for recessed tray installation in wet areas
- tile – suitable for flush finish in indoor bathrooms
- timber – can be mounted with waterproofing underlay
- pavers – ideal for outdoor or landscaping applications
- waterproofing membranes – compatible with bonded waterproofing systems
