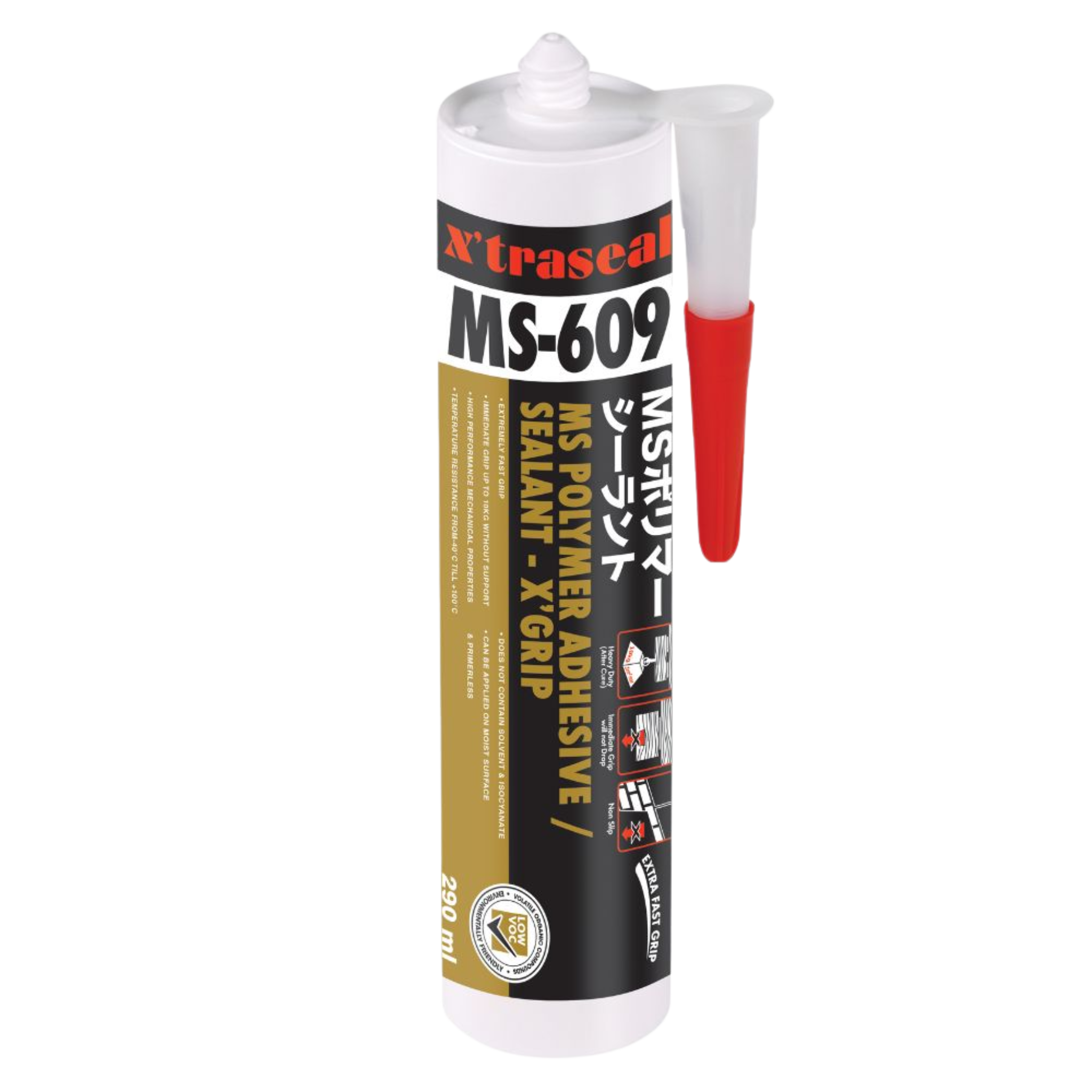

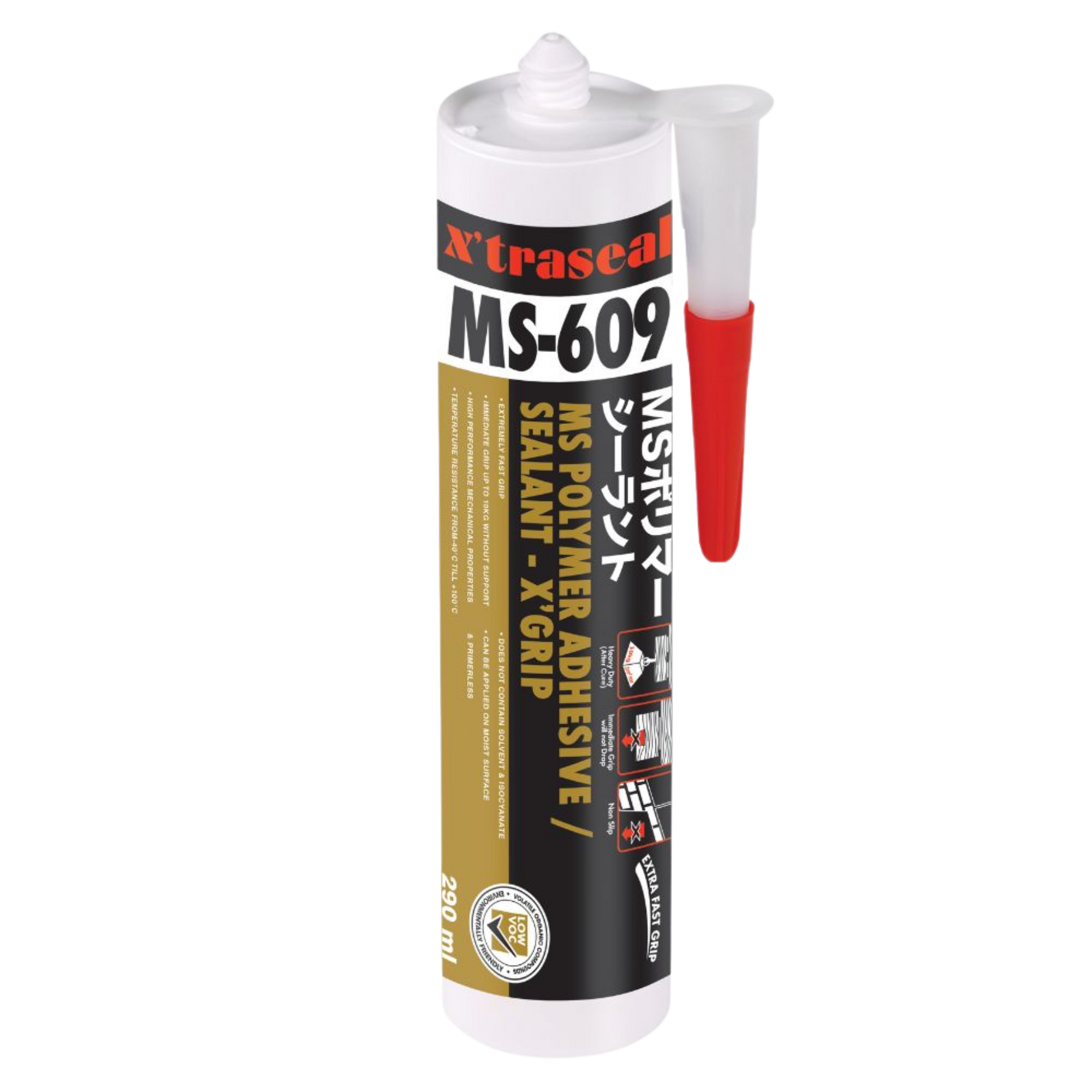

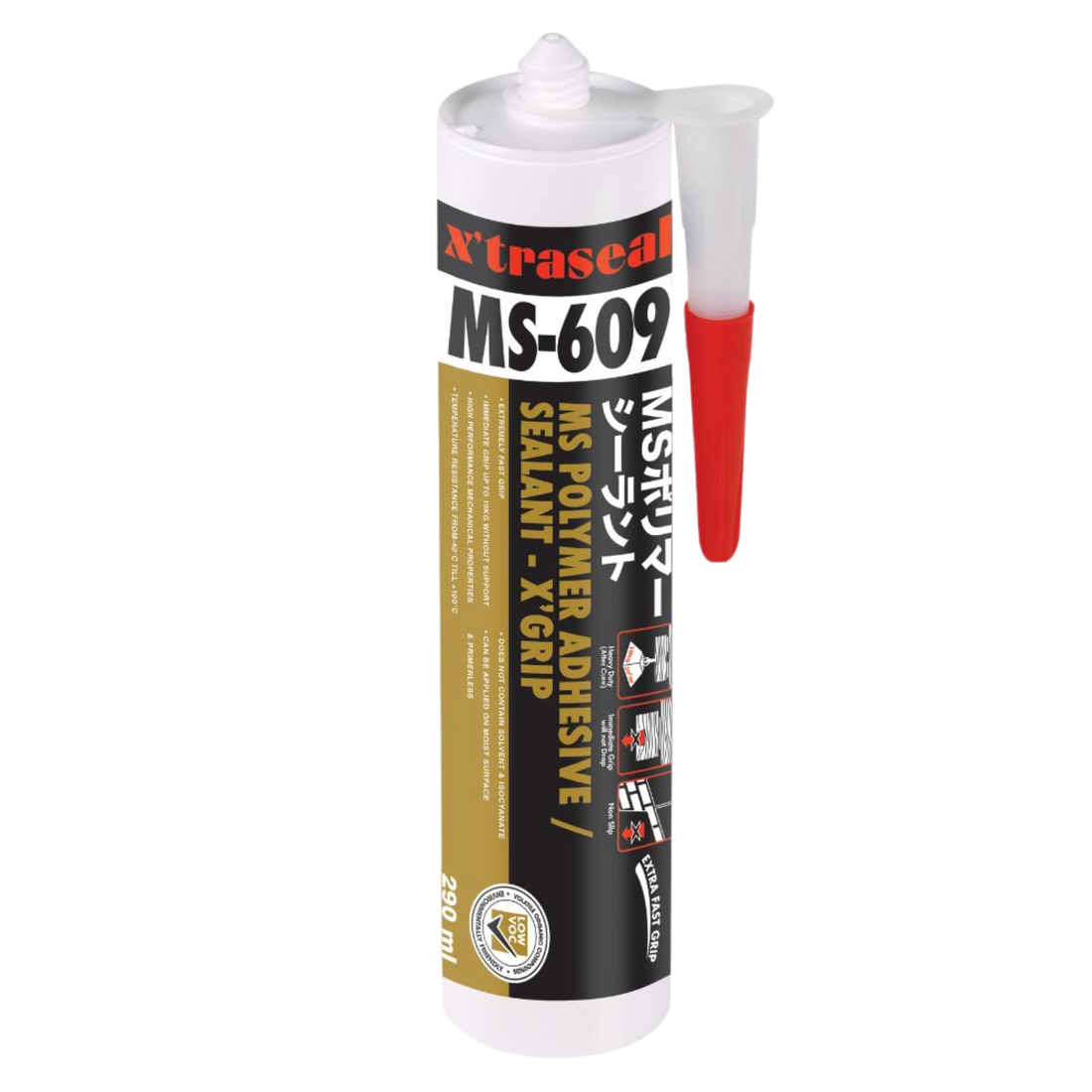

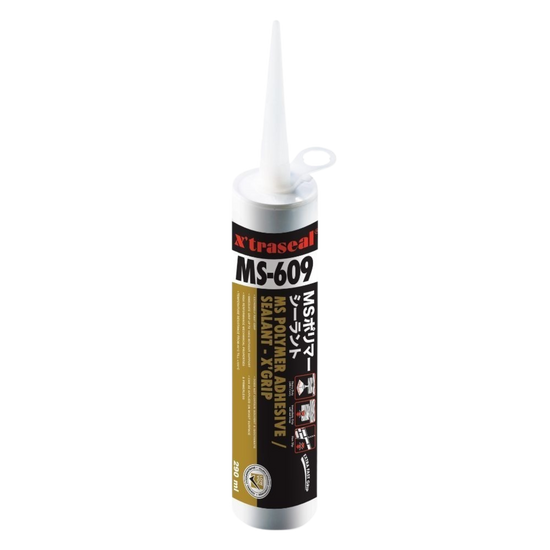

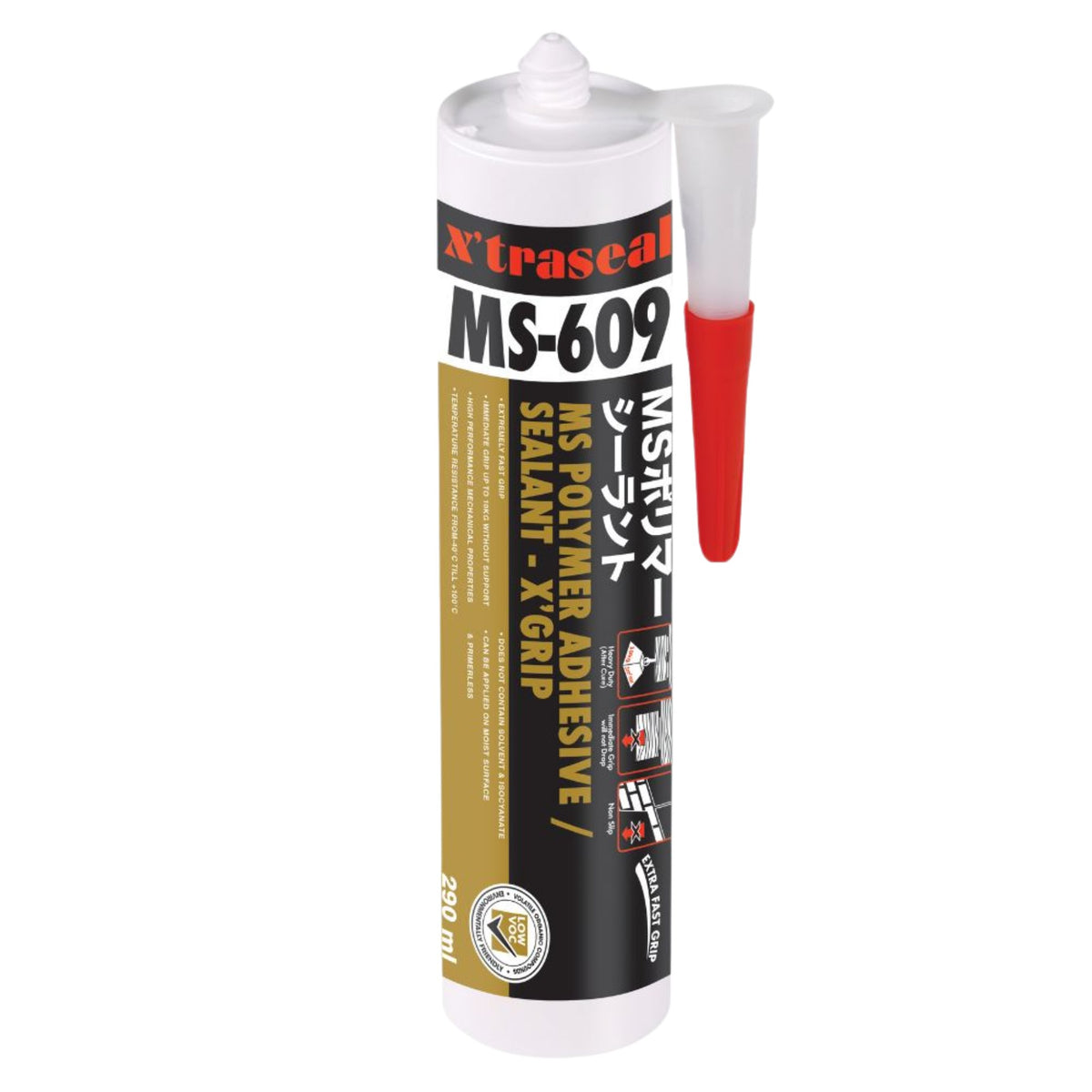

For high-load installations, vertical panels, and joints subject to constant vibration or deformation, Xtraseal MS-609 MS Polymer Adhesive provides an immediate 1-second grab without requiring temporary supports for most lightweight components. This single-part, moisture-curing hybrid polymer remains permanently elastic after curing and adheres reliably to dry and slightly damp substrates alike.
Xtraseal MS-609 functions as both a high-strength structural adhesive and an elastic sealant. Its hybrid MS polymer chemistry delivers high shear and tensile strength without the use of primers on most construction materials. Because it contains no isocyanates or silicones, it will not corrode galvanized or zinc-coated steel, nor will it degrade concrete. The formulation is low-odour, meets "Green Star" environmental criteria with a low VOC content of 38 grams per litre, and is compatible with water-based paint systems once cured.
Xtraseal MS-609 is suitable for internal and external applications across construction, commercial sign installation, transport, and manufacturing industries. It bonds to the following substrates:
Apply the adhesive at temperatures between 5°C and 40°C. For optimal performance, use a triangular nozzle to gun beads spaced 5 cm to 10 cm apart. Apply the adhesive with the caulking gun held at a 90-degree angle to stand a triangular bead twice as high as its width.
Press the components together while the adhesive is wet, ensuring a minimum bond line thickness of 2 mm. This minimum thickness is critical to allow the elastic properties of the polymer to function. Although the adhesive provides an instant grab, heavy or highly stressed elements require mechanical support until the adhesive cures.
For critical high-performance applications, multi-storey facades, or extreme weather exposures, prepare non-porous substrates with Adheseal 50A surface prep (allowing 30 minutes to 2 hours drying time). Prime porous substrates such as concrete, renders, and brick with Everflex Supaprime. Concrete must be cured for at least 28 days before application.
The adhesive has a skin time of 10 to 30 minutes and cures at a rate of 2 mm per 24 hours at 23°C and 50% relative humidity. Clean up wet spills and tools immediately using white spirits. Cured adhesive cannot be dissolved and must be removed by mechanical scraping or cutting.
Yes. MS-609 is ideal for bonding mirrors. It adheres well to mirror backing without causing staining or corrosion, and it provides immediate grip on vertical surfaces.
Yes. MS-609 can be applied to slightly moist surfaces and is moisture-tolerant during curing. However, it should not be used for applications where it will remain permanently submerged.
X'traseal MS-609 adheres to metal, timber, PVC, polystyrene, polycarbonate, mirror backing, glass, and most construction surfaces. It’s not recommended for polyethylene, polypropylene, or PTFE.
Yes. MS-609 is paintable with most water-based paints. For best results, allow the adhesive to fully cure and conduct a spot test before large-scale painting.
MS-609 skins over in approx. 5 minutes, is tack-free in 20 minutes, and reaches full cure in about 24–48 hours depending on joint thickness, humidity, and temperature.
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Mirror Bonding | Non-staining formula with instant grip on vertical surfaces | Glaziers, Fitout Contractors |
| Skirting & Trims | Supports heavy trims without nails, reducing visible fixings | Fitout Carpenters, Builders |
| Decorative Wall Panels | Adheres to a wide range of composite and coated materials | Shopfitters, Interior Designers |
| Coated Metal & Cladding | Strong adhesion to prefinished or powder-coated surfaces | Façade Installers, Signmakers |
| General Construction Assembly | Versatile adhesive for timber, PVC, polycarbonate, and more | General Builders, Renovators |
Ensure bonding surfaces are clean, dry, and free from dust, oil, grease, or release agents. Abrade glossy surfaces lightly if needed. Use lint-free cloth and mild detergent if cleaning is required.
Cut nozzle to desired bead size (typically 5–8mm). Apply MS-609 in vertical beads or dabs spaced 10–20cm apart. Ensure even distribution to allow moisture access during curing.
Bring surfaces together within 5 minutes of application. Apply firm, uniform pressure across the bonded area. No mechanical support is required in most cases due to high initial grab.
MS-609 skins in approx. 5 minutes and becomes tack-free in 20 minutes. Full cure is achieved in 24–48 hours depending on thickness, temperature, and humidity.
After full cure, MS-609 can be painted with most water-based paints. Always test on a small area for compatibility before painting large surfaces.
Wear protective gloves and safety glasses during application. Wash hands after use. Avoid skin and eye contact with uncured product.
Ensure adequate ventilation during use, particularly in confined areas. Avoid inhalation of any vapour, especially during prolonged use in sealed environments.
Product is non-flammable. Store away from heat and direct sunlight. Do not expose to temperatures above 30°C.
Ensure mirror backing is clean and dust-free. Avoid alcohol wipes or aggressive solvents that could damage silvering. Apply MS-609 in vertical beads to allow ventilation and moisture curing.
Ensure paint is sound and fully cured. Lightly abrade glossy coatings to improve grip. Remove dust and residue before application.
Wipe surfaces with a lint-free cloth and mild detergent. Rinse and dry. Avoid oily timbers or contaminated surfaces. No need to sand pre-finished trims unless coated in gloss polyurethane.
Ensure surface is clean and free from protective film, dust, or oxidation. Wipe with alcohol-based cleaner and allow to evaporate before applying adhesive.
Brush away loose particles. Ensure surfaces are dry. MS-609 is non-bleeding and won’t stain natural substrates, making it ideal for architectural stone bonding.
| Property | Value |
|---|---|
| Base Chemistry | X'traseal MS-609 |
| Material Type | MS Polymer Adhesive Sealant |
| Curing System | Moisture cure |
| Appearance | Non-sag thixotropic paste |
| Density | 1.60 ± 0.05 g/mL |
| Tensile Strength | ≥ 1.8 MPa |
| Elongation | ≥ 300% |
| Movement Capability | ±25% |
| Shore Hardness | 45 ± 5 |
| Skin Time | 5 minutes |
| Tooling Time | Within 10 minutes of application |
| Initial Cure | 20 minutes |
| Cure Rate | 3 mm per 24 hours |
| Application Temperature | +5°C to +40°C |
| Service Temperature | -40°C to +90°C |
| UV Resistance | Excellent |
| Substrate Compatibility | Timber, Mirror, PVC, Coated metal, Stone, Polycarbonate, ACP, Concrete |
| Paintability | Yes (test recommended for compatibility) |
| Packaging | 290ml cartridge, Box of 12 |
| Shelf Life | 12 months (unopened at 25°C) |
| Storage Conditions | Cool, dry place below 30°C |
Here are some common examples on where Xtraseal MS-609 MS Polymer Adhesive used by our customers.
