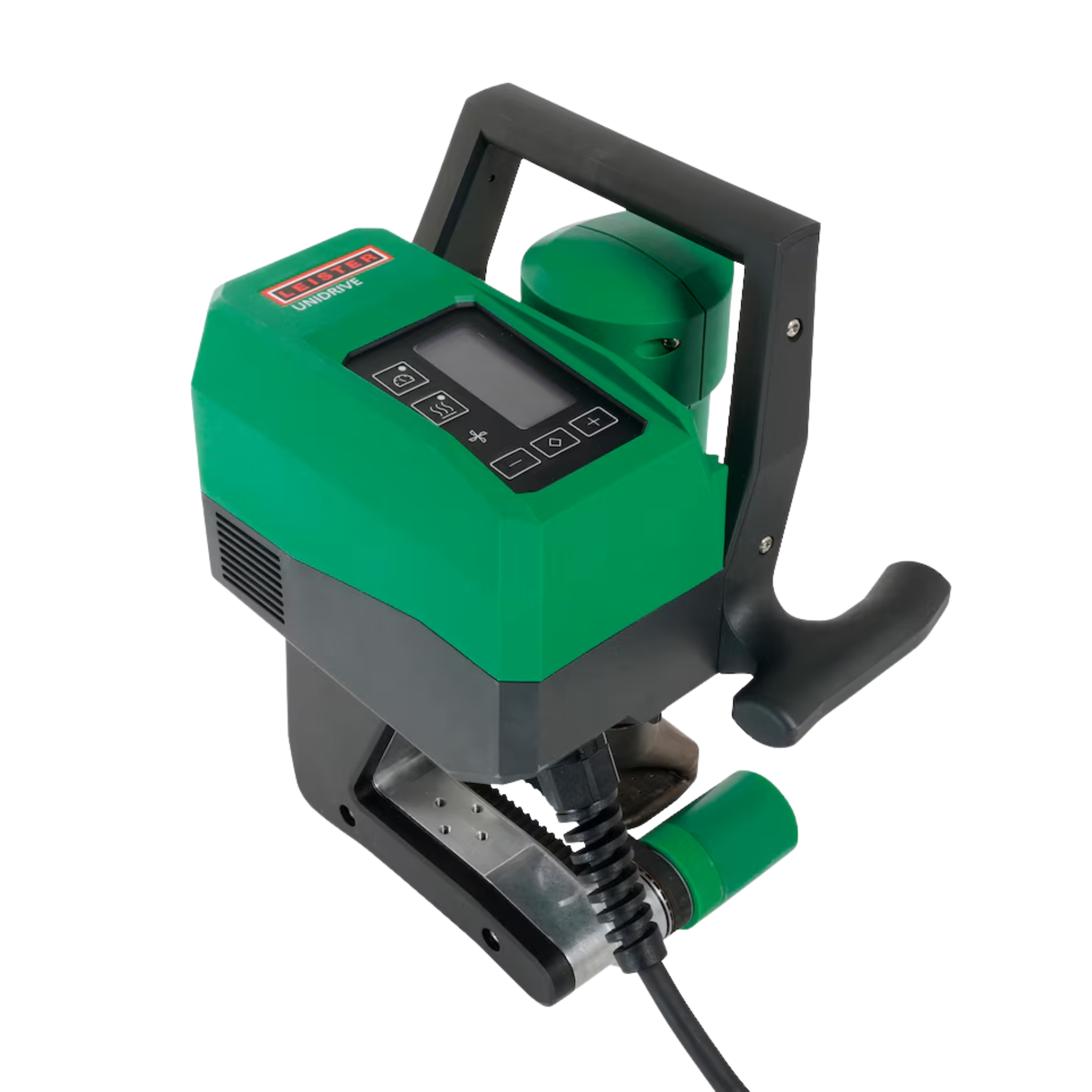

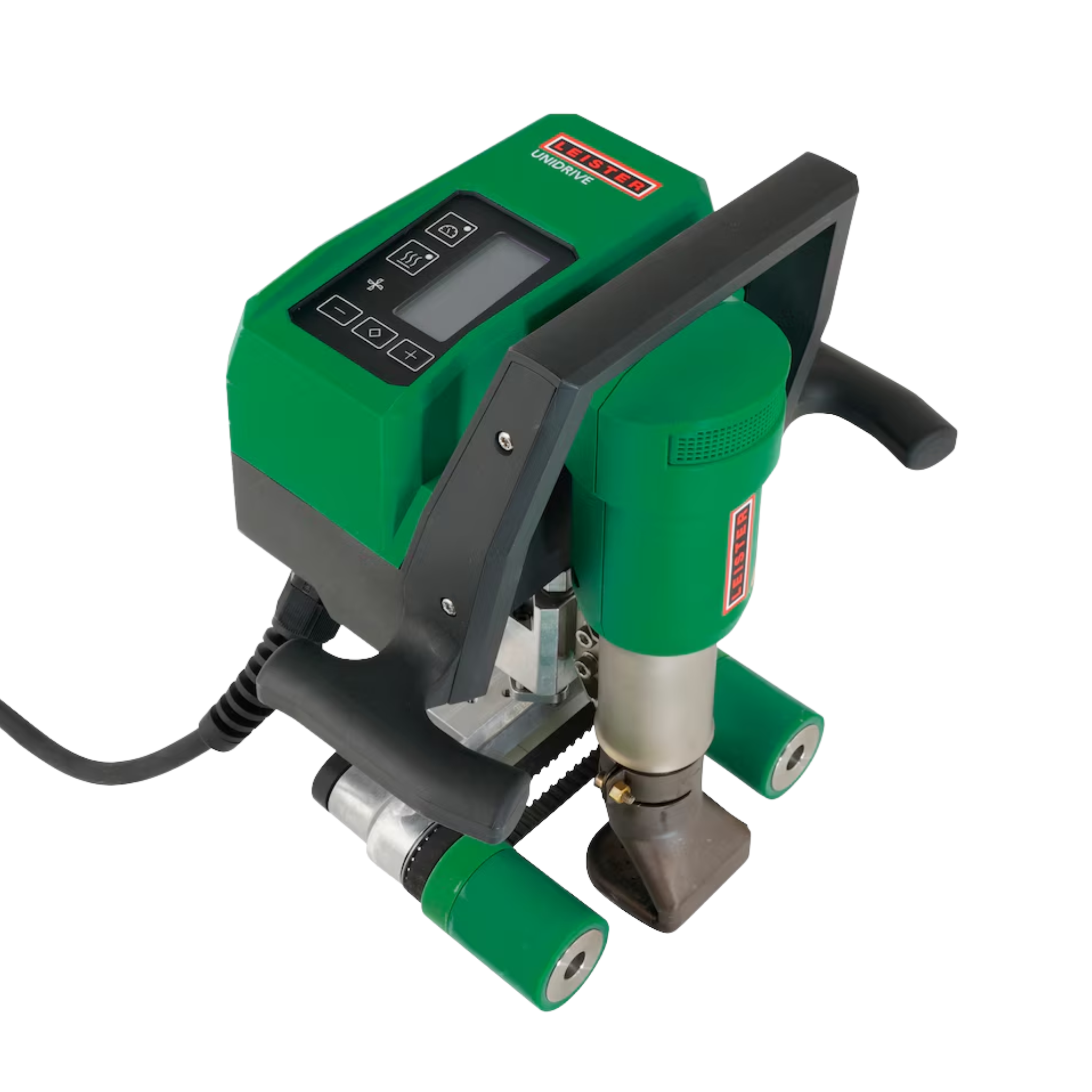

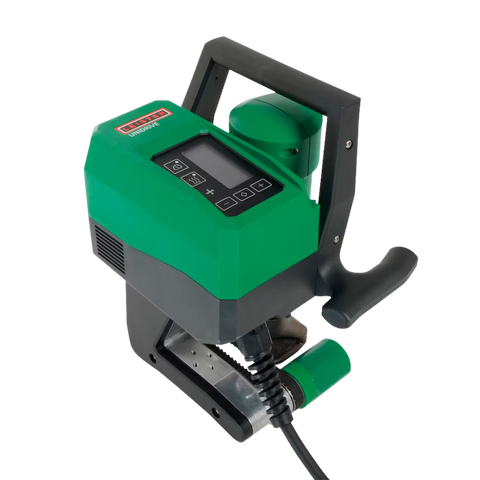

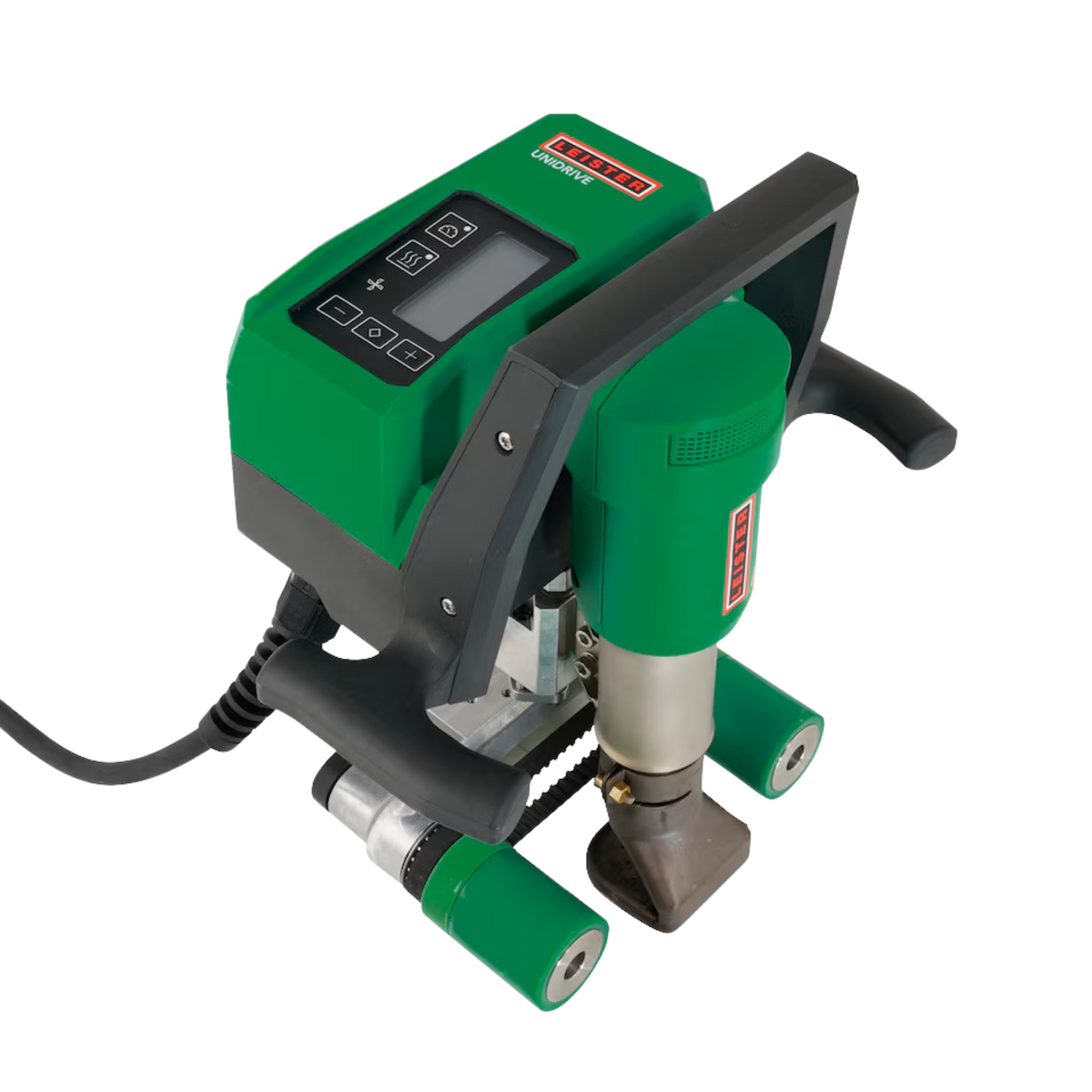

Leister UNIDRIVE 500: A Technical Overview
The Leister UNIDRIVE 500 redefines efficiency in plastic welding by combining the precision of automatic control with the manoeuvrability of manual tools. With its lightweight 4.5 kg frame and ergonomic handle, it delivers consistent weld pressure even on challenging angles and edge details. The adjustable air volume and temperature (100–580 °C) allow tailored settings across membrane types such as TPO, PVC, FPO, and EPDM. Its reversible drive function enables welding in both directions—perfect for confined or intricate areas. Designed with brushless motors for long service life, and supported by a digital display for precise parameter control, it ensures repeatable quality every time.
Core Features & Specifications
- Up to 4.5 m/min welding speed — up to three times faster than manual welding, reducing labour time
- Welding temperature range from 100–580 °C for broad compatibility with roofing membranes

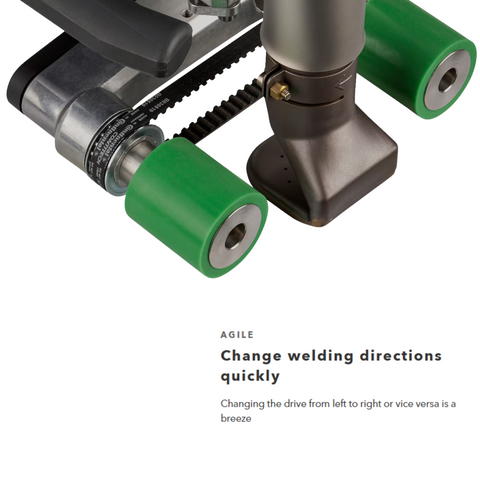

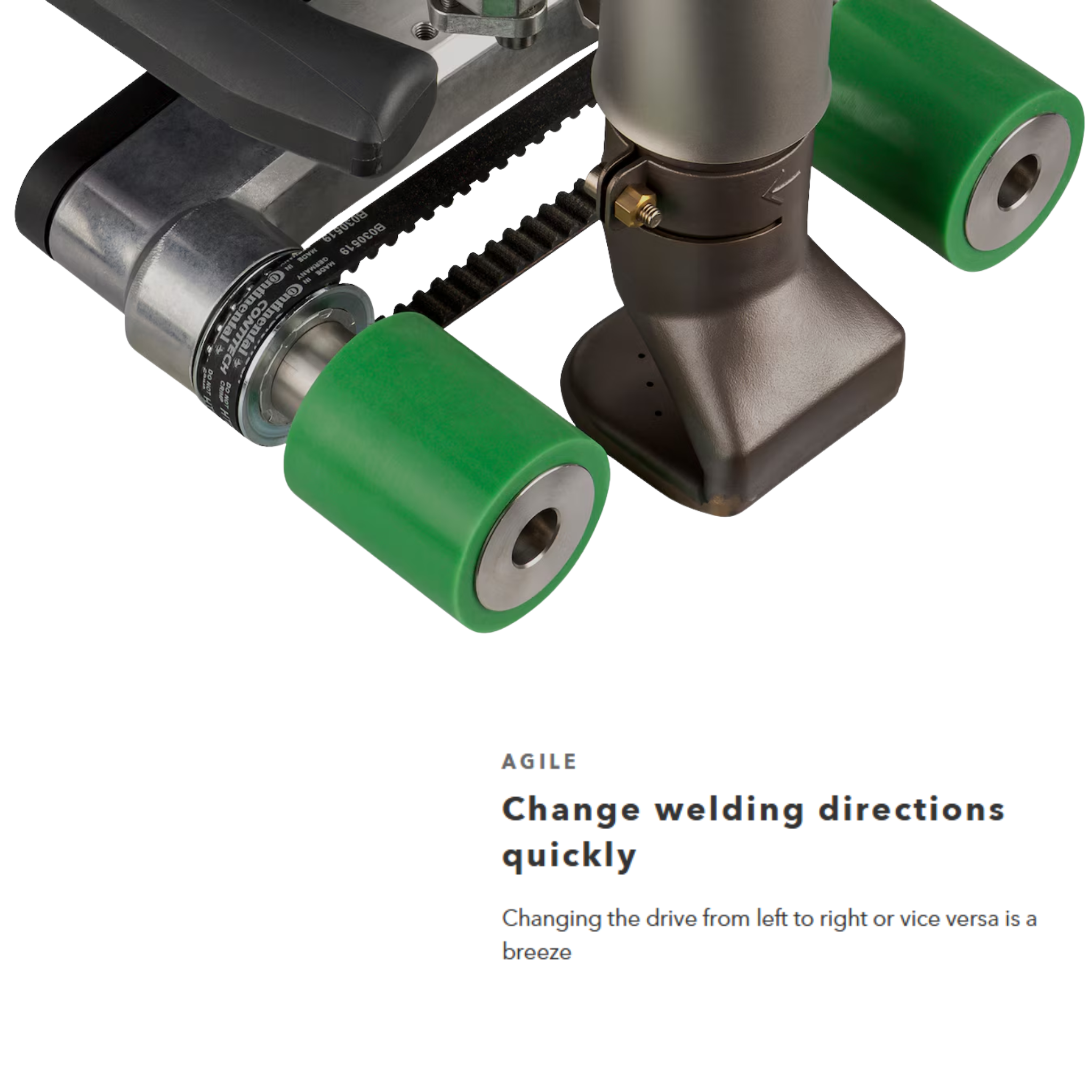

- Reversible drive enables forward and backward operation for tight or mirrored layouts
- 15–40 mm seam width capability using interchangeable nozzles for varied job requirements

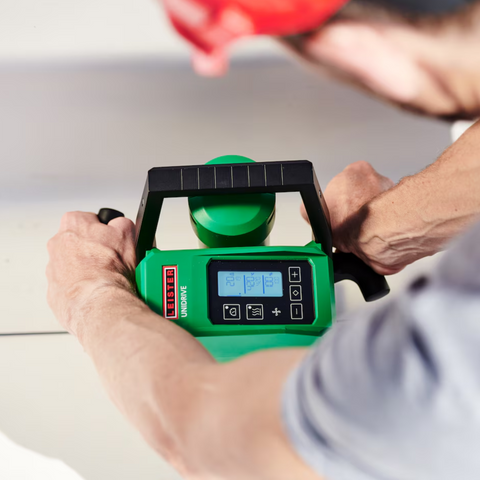

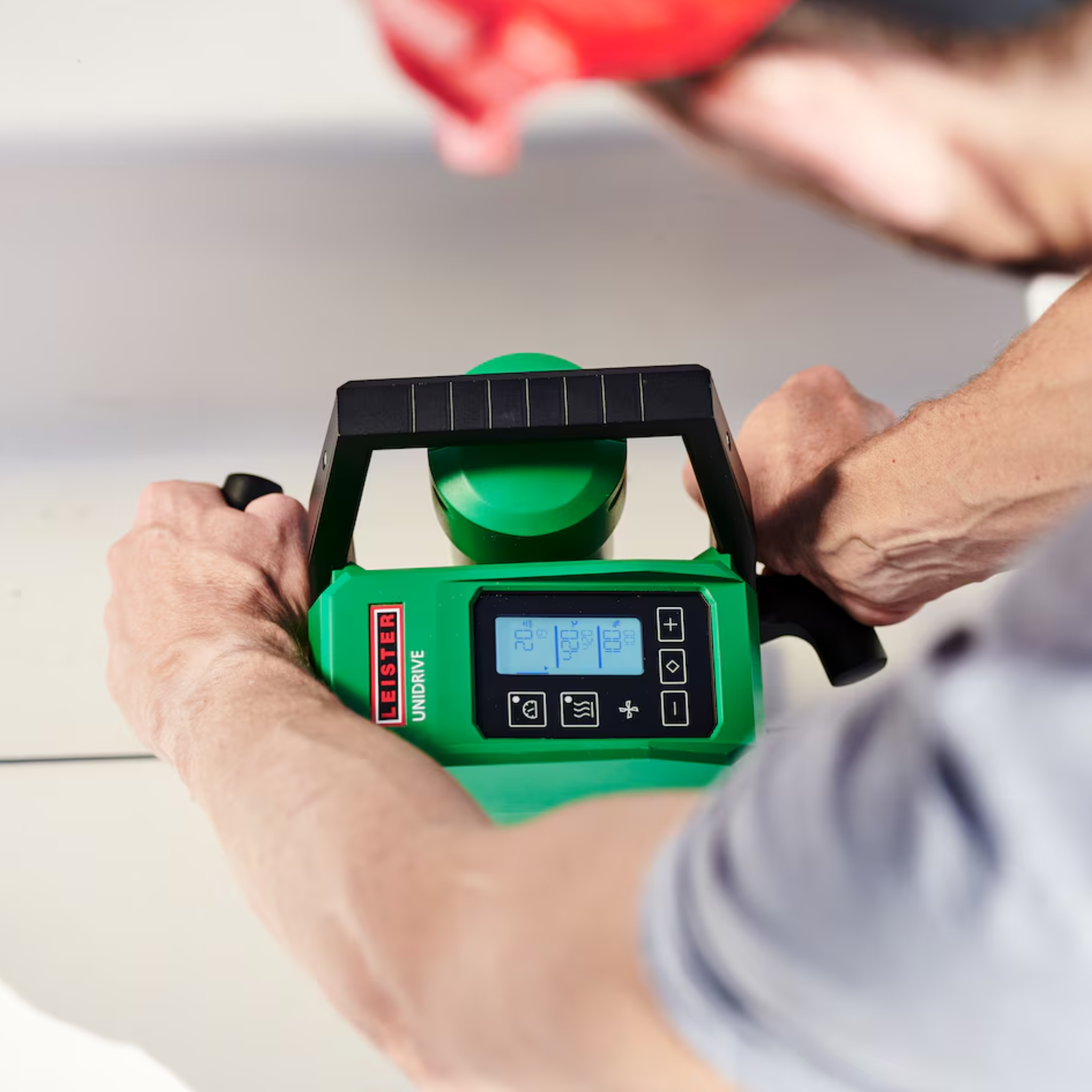

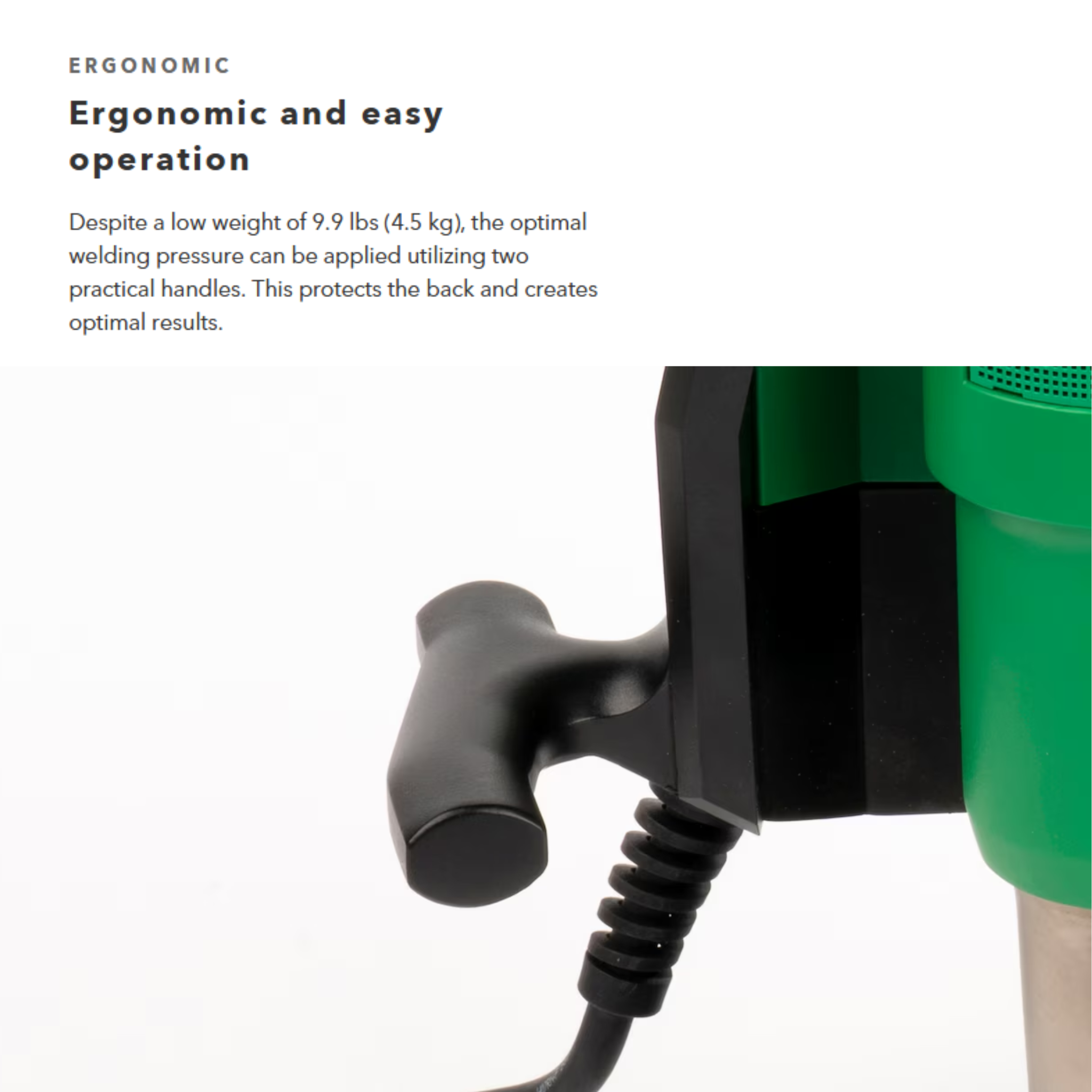

- Ergonomic handle and compact form factor for excellent control in edge or vertical applications
- Brushless blower and drive motors ensure high durability with minimal maintenance

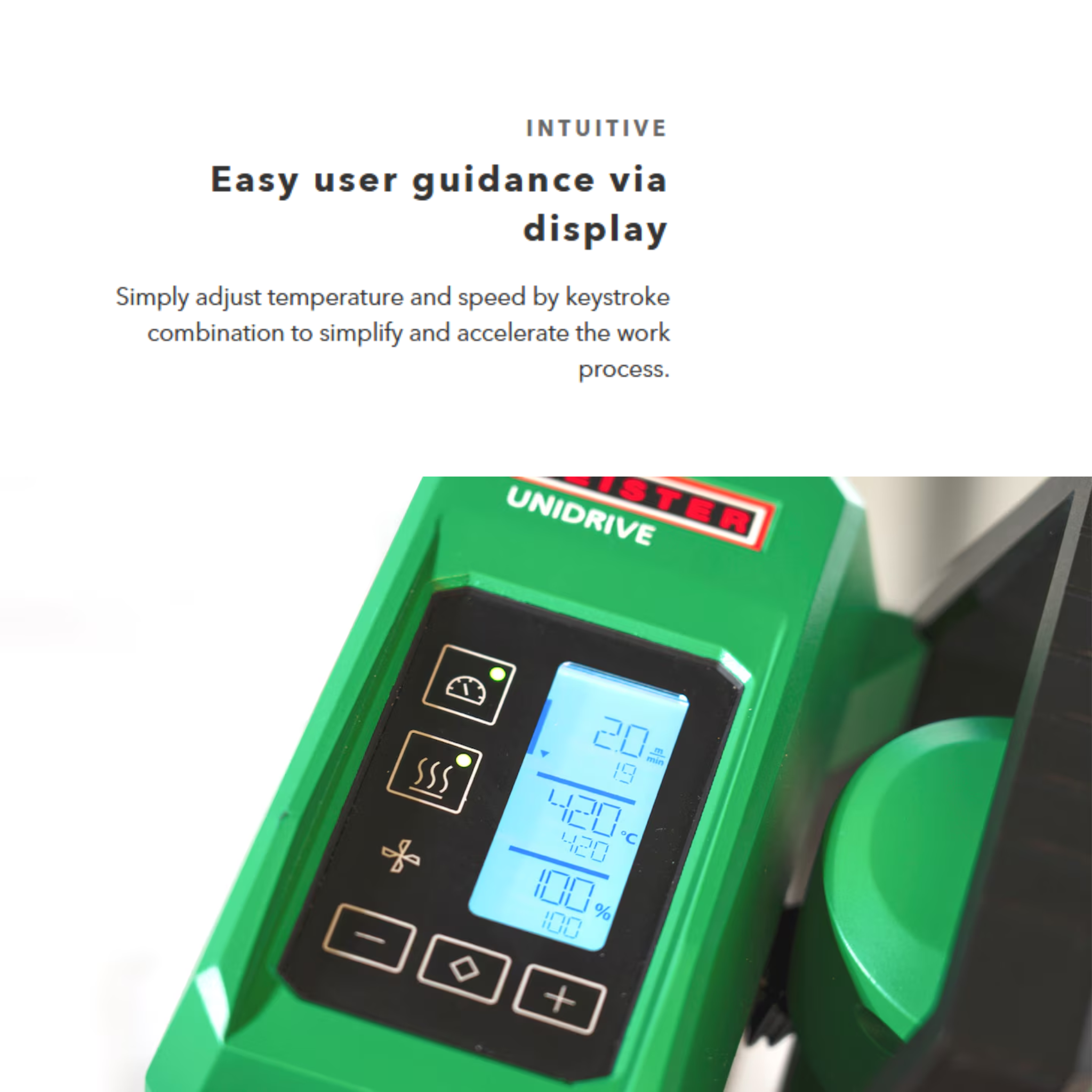

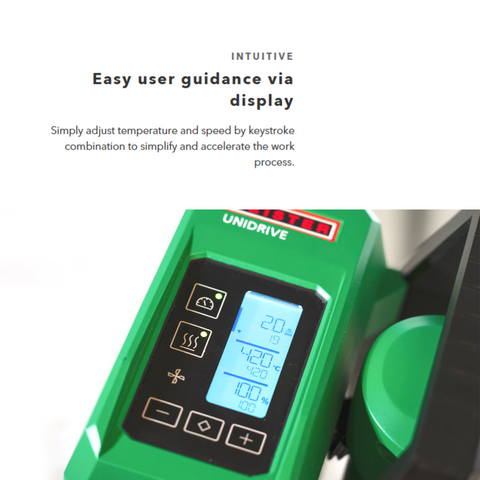

- Digital display for consistent, repeatable settings and real-time quality assurance
- CE, UKCA, and CB certified with Class I protection and Swiss manufacturing quality
The Leister UNIDRIVE 500 Advantage
- Delivers professional consistency across variable substrates and angles
- Minimises fatigue and enhances speed on detailing work and small-scale roofing
- Reduces risk of burn-through or underheating with precision digital control
- Compact and agile — no need for large automatic welders on tight jobs
- Replaces manual welding for up to 70% faster throughput on small flat roofs
Proactive Troubleshooting
Scenario: Inconsistent welds on vertical or edge detailing
Potential Outcome: Weak seals, water ingress or delamination under movement stress
Adheseal Best Practice: Use the UNIDRIVE 500’s ergonomic grip and forward/reverse drive mode to maintain consistent pressure on vertical seams. Monitor digital readouts to avoid overheating thinner materials.
Scenario: Overheating membranes on slower passes
Potential Outcome: Membrane distortion, loss of structural integrity, or unsightly weld beads
Adheseal Best Practice: Calibrate the air temperature based on material type. Start at 400 °C for PVC and adjust with test welds. Avoid remaining stationary during heating.
Applications in Practice: Trade Scenarios

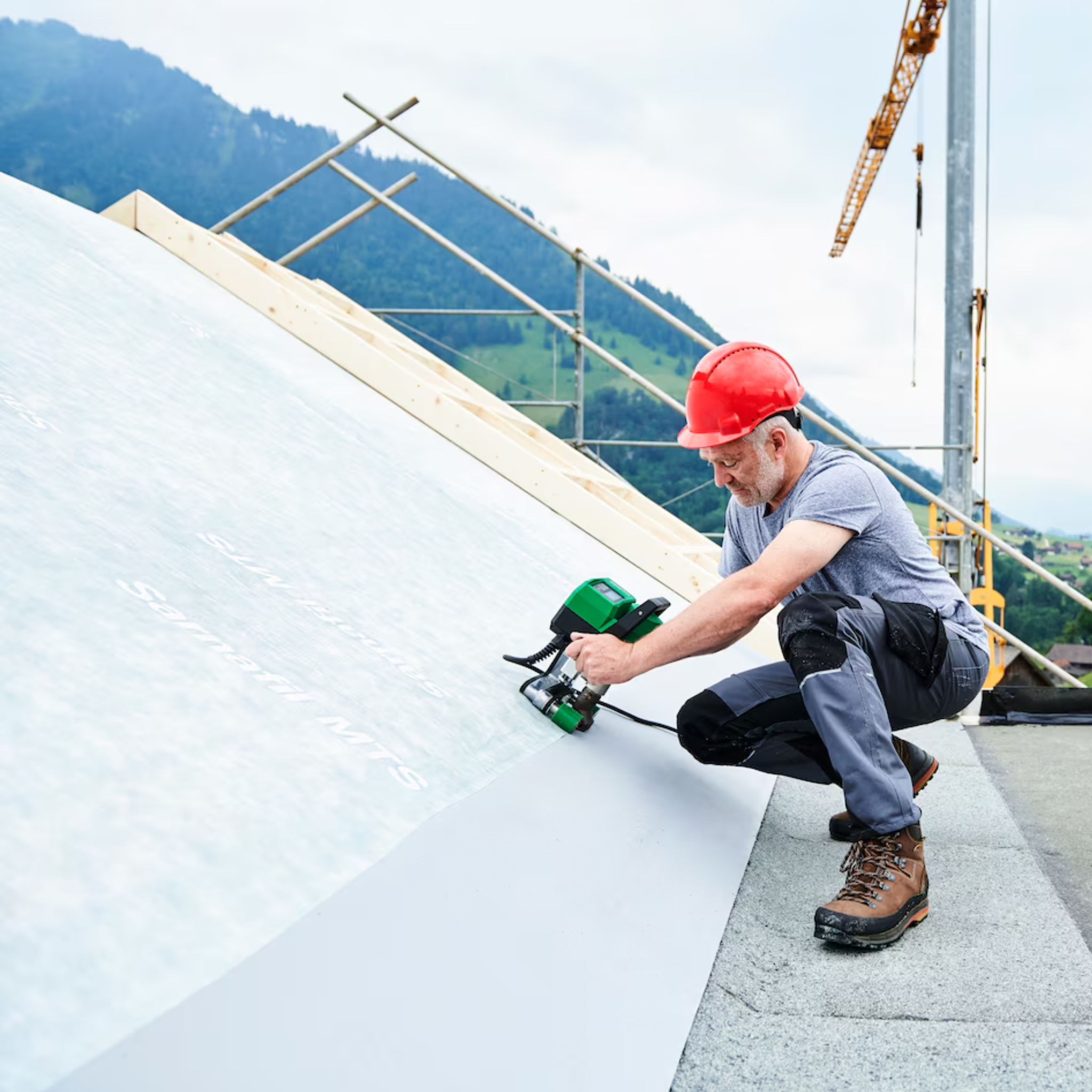

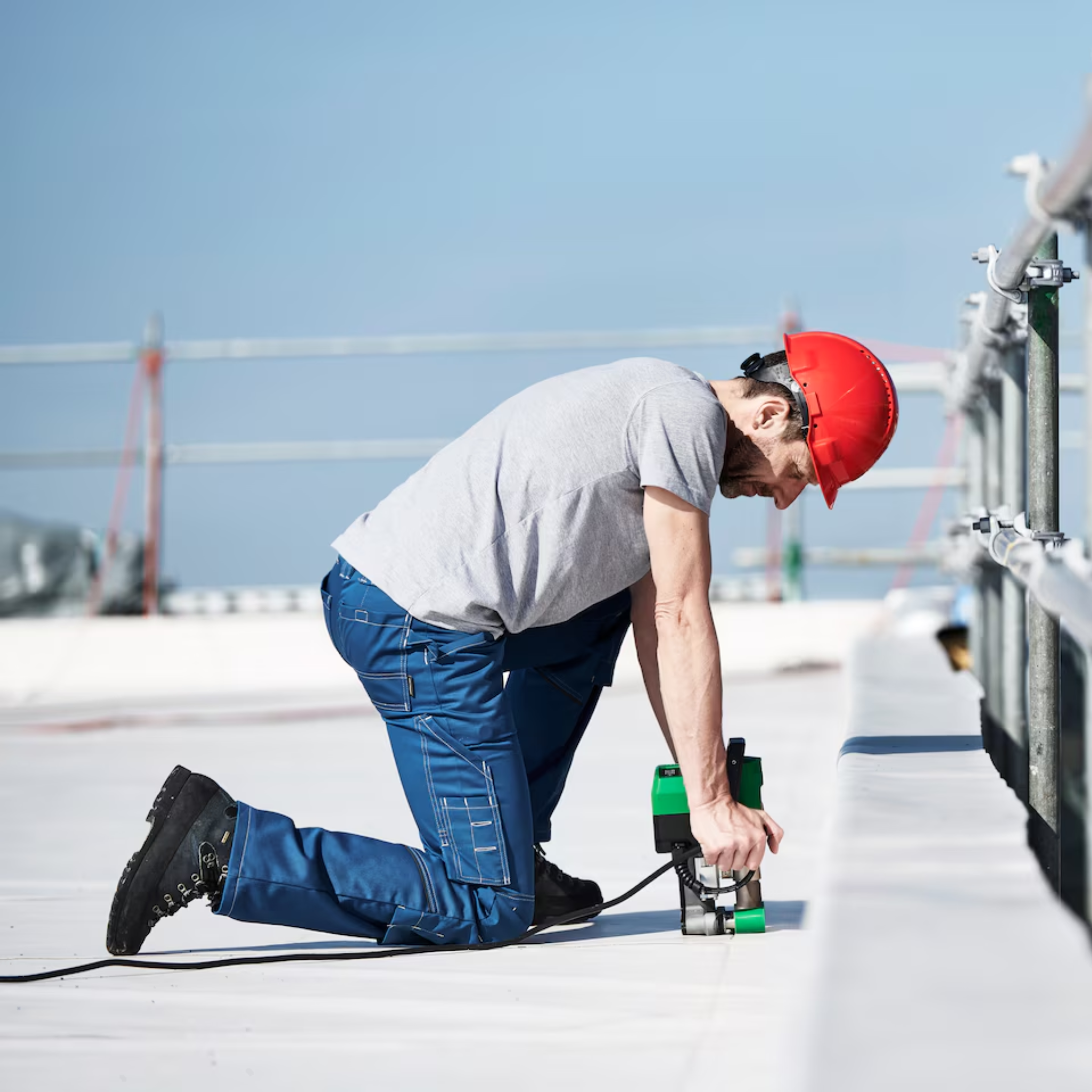

For Roofers (On-site Applicator): Speed and Consistency on Small Flat Roofs
The Professional's Challenge
Small terrace roofs and skylight flashings often require precision detailing and speed. Manual welds are slow and difficult to control evenly—especially in warm Australian climates where membrane softening risks damage.
The Adheseal Solution: Engineered Certainty in Practice
The UNIDRIVE 500 delivers uniform welds up to 4.5 m/min and allows forward or reverse passes for mirrored detailing. The digital display ensures reliable repeat settings for PVC, TPO, or EPDM membranes.
Best Practice Note
Perform a material pre-test on offcuts to confirm air volume and temperature before starting live welds. Use 30 mm or 40 mm nozzle widths depending on membrane overlap.
For Maintenance Contractors (Business Owner): Rapid Detail Repairs Without Sacrificing Quality
The Professional's Challenge
Time is money—especially when responding to leak repairs or detailing work on existing roofs. Bulky hot-air equipment is cumbersome and overkill for small areas.
The Adheseal Solution: Engineered Certainty in Practice
The lightweight UNIDRIVE 500 delivers professional welds with minimal setup. Reversible drive and ergonomic design allow single-tool access even in tight corners, reducing call-backs.
Best Practice Note
Carry both 15 mm and 40 mm nozzle setups in your vehicle to match repair conditions. The 3 m cable provides ample reach for mobile repair use without needing extension leads.
Frequently Asked Questions
Can the UNIDRIVE 500 weld in both directions?
Yes. The reversible drive function allows the UNIDRIVE 500 to weld both left-to-right and right-to-left. This is ideal for mirrored detailing, edge work, and tight spaces where tool reorientation is impractical.
Which materials are compatible with the UNIDRIVE 500?
The UNIDRIVE 500 is suitable for PVC, TPO, FPO, EPDM, EVA, ECB, PU, TPU, TPE, and other thermoplastic roofing membranes. Always confirm compatibility with your membrane supplier’s datasheet.
What nozzle sizes are available?
The UNIDRIVE 500 supports nozzle/seam widths from 15 mm to 40 mm. Use narrower nozzles (e.g., 15 mm) for detailing and wider nozzles (30–40 mm) for main seam runs.
Does the UNIDRIVE 500 require external air supply?
No. The unit includes an integrated brushless blower motor with adjustable airflow. This allows for self-contained operation without external compressors.
What is the advantage of brushless motors?
Brushless motors in both the drive and blower extend service life, reduce maintenance, and ensure more consistent performance, especially under continuous use or in dusty job site environments.
Can it be used in high-humidity or tropical Australian climates?
Yes. With proper setup and technique, the UNIDRIVE 500 performs reliably in humid and hot conditions. Always adjust temperature and speed to suit membrane response, and store the unit in a dry case when not in use.
Applications & Benefits
| Application / Use Case | Key Benefit | Primary Trades |
|---|---|---|
| Welding small flat roof membranes (PVC, TPO, FPO) | Fast, consistent welding with digital control and minimal user fatigue | Roofers, Waterproofers |
| Skylight and parapet detailing | Precise heat delivery and reversible drive for mirrored weld access | Roofers, Maintenance Contractors |
| Edge seams and vertical surface terminations | Ergonomic grip and compact body allow stable welding on complex profiles | Roofers, Facade Installers |
| Repairs and membrane overlays | Brushless motors and lightweight frame enhance portability for reactive jobs | Remedial Contractors, Commercial Builders |
Applying Leister UNIDRIVE 500: Enhanced Protocols & Best Practices
-
Surface Preparation
Ensure all substrates are clean, dry, and free from dust, oils, or membrane chalking. Contaminated or aged membranes may require wiping with a suitable cleaner and mechanical scrubbing.
Manual Wipe-Down
Use lint-free cloths and compatible surface prep agents such as Adheseal Surface Prep or IPA (isopropyl alcohol). Always allow solvent to evaporate before proceeding.
Mechanical Prep
On weathered substrates, lightly abrade the surface using a Scotch-Brite pad to improve fusion. Wipe clean after abrasion.
Timing: Perform surface prep immediately before welding. Avoid leaving cleaned surfaces exposed for long periods.Pro Tip: Always conduct a test weld on membrane offcuts after surface prep to confirm performance. -
Machine Setup
Connect the unit to power and configure settings based on membrane type and job conditions. Use the digital display to set the temperature, speed, and airflow volume.
TPO/PVC Setup
Start with 480–520 °C temperature, 3.0 m/min speed, and 60–80% airflow. Adjust after observing test weld quality.
EPDM & EVA Setup
Use higher temperatures up to 550 °C and slower speeds (1.5–2.0 m/min) depending on membrane thickness and substrate.
Timing: Let the unit preheat for 1–2 minutes before initiating welding.Pro Tip: Save successful parameter combinations for reuse to ensure repeatable quality across jobs. -
Welding Process
Insert the welding nozzle into the overlap and start the drive motor in the selected direction. Maintain steady pace and let the tool do the work. Do not push or tilt the machine during operation.
Forward Welding
For standard runs from left to right. Align nozzle with seam overlap and engage drive smoothly.
Reverse Welding
For mirrored edge runs or right-to-left detailing. Toggle direction via control button on handle.
Timing: Welding duration varies based on speed and seam length. A 2 m seam typically takes under 1 minute.Pro Tip: Use a silicone roller to quickly consolidate seams during cooling for extra bond strength on curved sections.
Limitations & Safety
Product Limitations
Not suitable for welding non-thermoplastic membranes such as bitumen or modified bitumen-based materials.
Use Adheseal Torch-Flex System for these substrates.
Requires experienced operation for consistent welds on high-angle or vertical substrates — not recommended for DIY users or untrained labourers.
Indoor use requires proper ventilation due to heat generation and potential fume release from membrane surfaces.
Safety & Handling Requirements
Personal Protective Equipment
Wear heat-resistant gloves and eye protection during operation. Long-sleeve cotton clothing is recommended to protect from radiant heat near the nozzle.
Ventilation Requirements
Operate in well-ventilated environments, especially when working indoors or with PVC/TPO membranes that may release vapours under heat.
Fire & Handling Precautions
Keep away from flammable materials during operation. Allow unit to cool completely before storing. Never rest the hot nozzle on any surface.
Emergency First Aid
Eyes:
Flush with clean water for at least 15 minutes if contact with vapours or particles occurs. Seek medical attention immediately.
Skin:
In case of burn, cool the affected area with running water. Do not apply ointments or creams. Seek medical advice for severe burns.
Inhaled:
Move to fresh air immediately. If breathing is affected, seek medical assistance.
Swallowed:
Not applicable — this is an electrical tool, not a chemical product.
Seek medical attention immediately in all cases of serious exposure.
Leister UNIDRIVE 500 Application Guide
TPO & FPO Membranes
Surface Preparation
Ensure surfaces are dry, free of dust, debris, and membrane chalking. Clean with a manufacturer-recommended cleaner if contaminated. Check for any surface oxidisation on older TPO membranes.
Primer Requirements
No primer typically required
For most new membranes, welding directly is sufficient. Pre-cleaning is essential on weathered surfaces for consistent bonding.
PVC Roofing Membranes
Surface Preparation
Clean seams and overlaps using lint-free cloths and approved PVC membrane cleaner. Avoid aggressive solvents that may soften the membrane prematurely.
No primer typically required
Ensure surfaces are free from rainwater residue and de-glossed where necessary to improve fusion.
EPDM & PIB Membranes
Surface Preparation
Clean thoroughly to remove talc, dust, or carbonised material. Use EPDM-approved cleaner and allow to fully evaporate before welding.
Primer required for critical applications
Where the membrane is not thermoplastic or is non-homogeneous, apply a hot-bonding primer designed for EPDM edge detailing.
Adheseal EPDM PrimerEVA, TPU & PU Membranes
Surface Preparation
Wipe surfaces with isopropyl alcohol to remove any surface oils. Allow full drying time before welding. Test weld on sample offcuts.
Primer recommended for optimal adhesion
On aged or high-mobility substrates, a polyurethane-compatible primer may improve long-term bond integrity.
Adheseal Primer 2001
