Use Lauxes Tile Insert 26 Grate Kit for: Seamless water drainage in tiled areas without compromising design or durability.

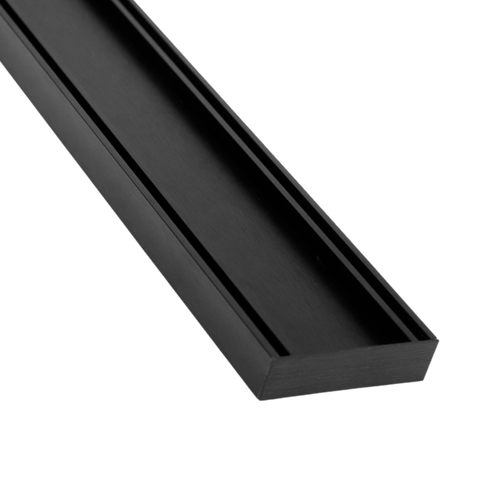

The Lauxes Tile Insert Grate 26 Grate Kit is the top choice for trade professionals seeking a sleek, customisable, and highly durable drainage solution. Designed with Australian conditions in mind, this tile insert grate combines aesthetic appeal with practical performance. Ideal for use in bathrooms, balconies, patios, or pool areas, it features rustproof construction, UV stability, and a convenient roll-out cleaning system. With flexible waste outlet placement and the ability to be cut onsite, this grate reduces labour and maximises installation efficiency.
Primer Information: No primer required for physical installation. For surrounding tile adhesion or waterproofing membranes, consult membrane or adhesive supplier for compatibility with aluminium substrates.
Cure Time: Not applicable—mechanical installation only. Use of sealants around edges should follow the sealant manufacturer's guidelines for wet area curing (typically 24-48 hours).
Coverage Rate: Supplied in standard 1 metre and 5.6 metre lengths. For longer runs, sections can be seamlessly joined using Lauxes joiners. We also offer custom-cut lengths to suit your project specifications—just contact us before ordering. Alternatively, units can be easily cut onsite to fit exact dimensions with minimal wastage.
Application Temperature Range: -20°C to 80°C (-4°F to 176°F); safe for installation in all Australian climates.
Chemical Properties: UV-stable aluminium body with corrosion-resistant coating. Backed by a lifetime rustproof warranty and 25-year fade guarantee for reliable performance in coastal and tropical regions.
Key Features of Lauxes Tile Insert 26 Grate Kit
- Extendable design for long drainage runs without breaks—ideal for pools, balconies, or large bathrooms
- Onsite cut capability reduces downtime and allows perfect customisation
- Rustproof and fade-resistant finish backed by long-term warranties
- Easy roll-out cleaning mechanism ensures quick maintenance access
Why Choose Lauxes Tile Insert 26 Grate Kit :
- Excellent for indoor and outdoor use thanks to UV stability and corrosion resistance

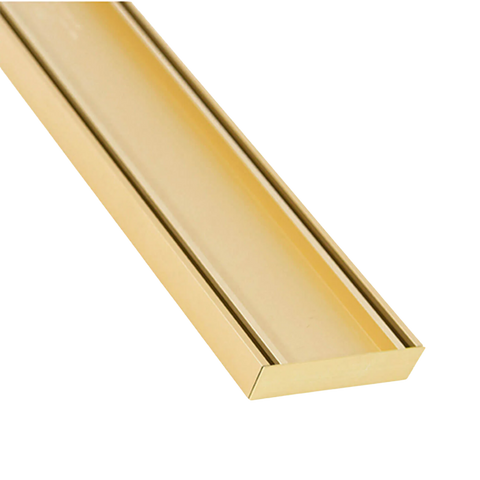

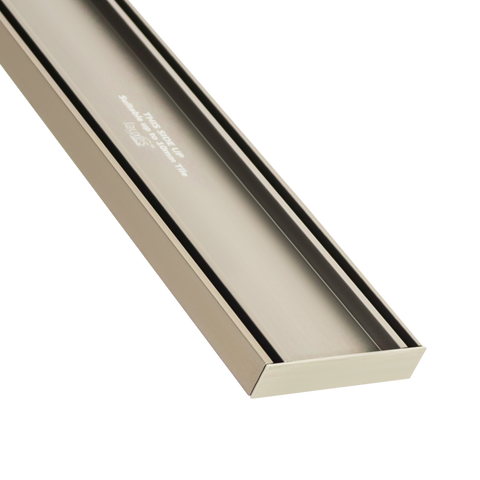

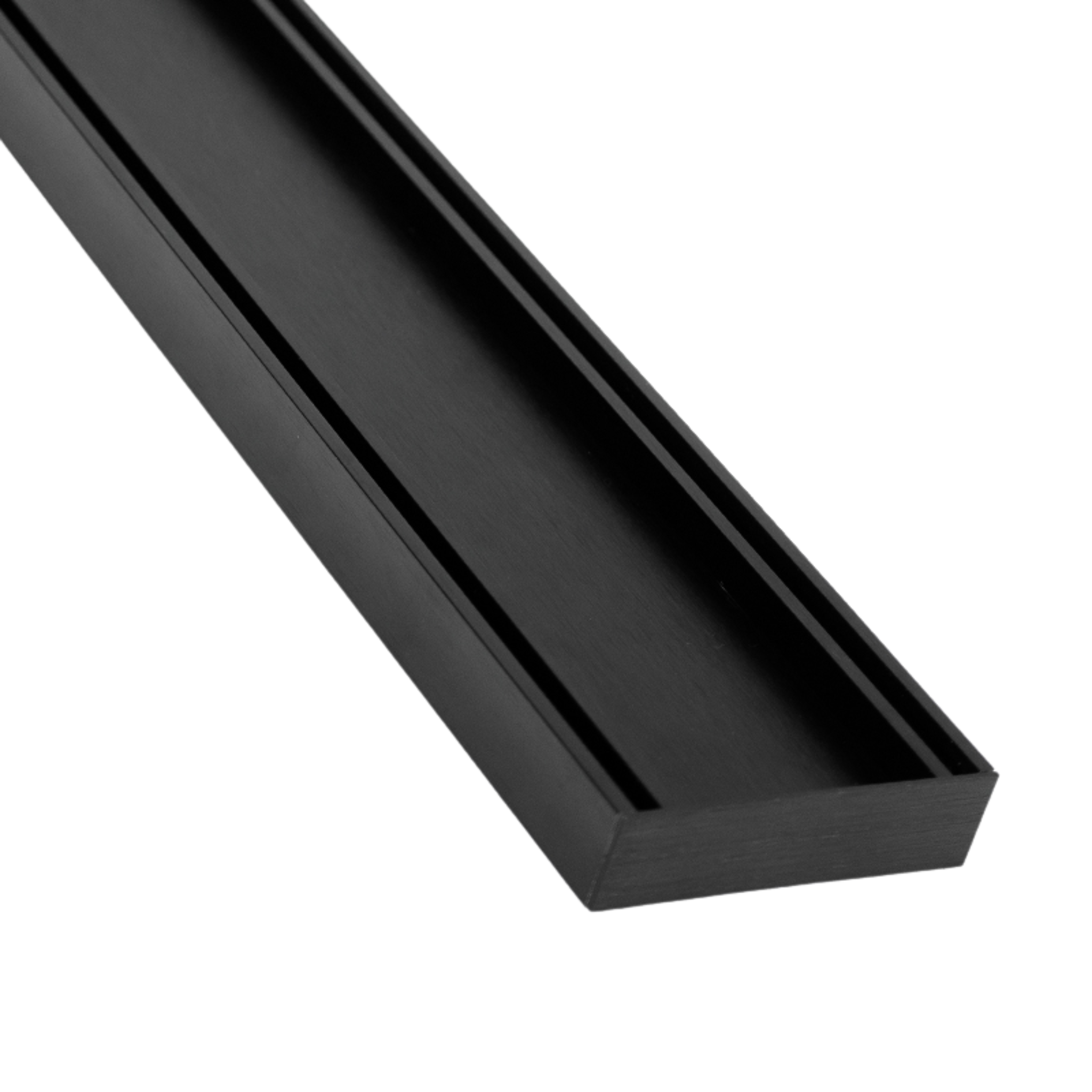

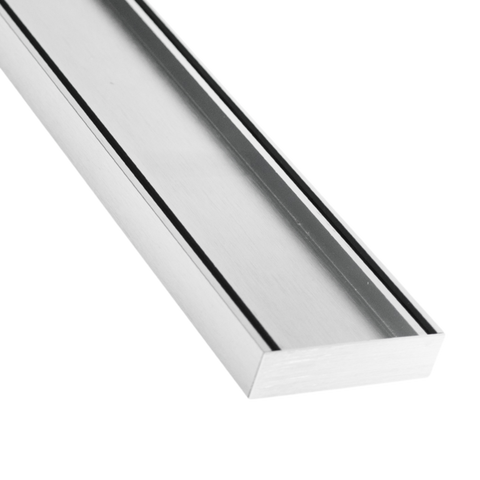

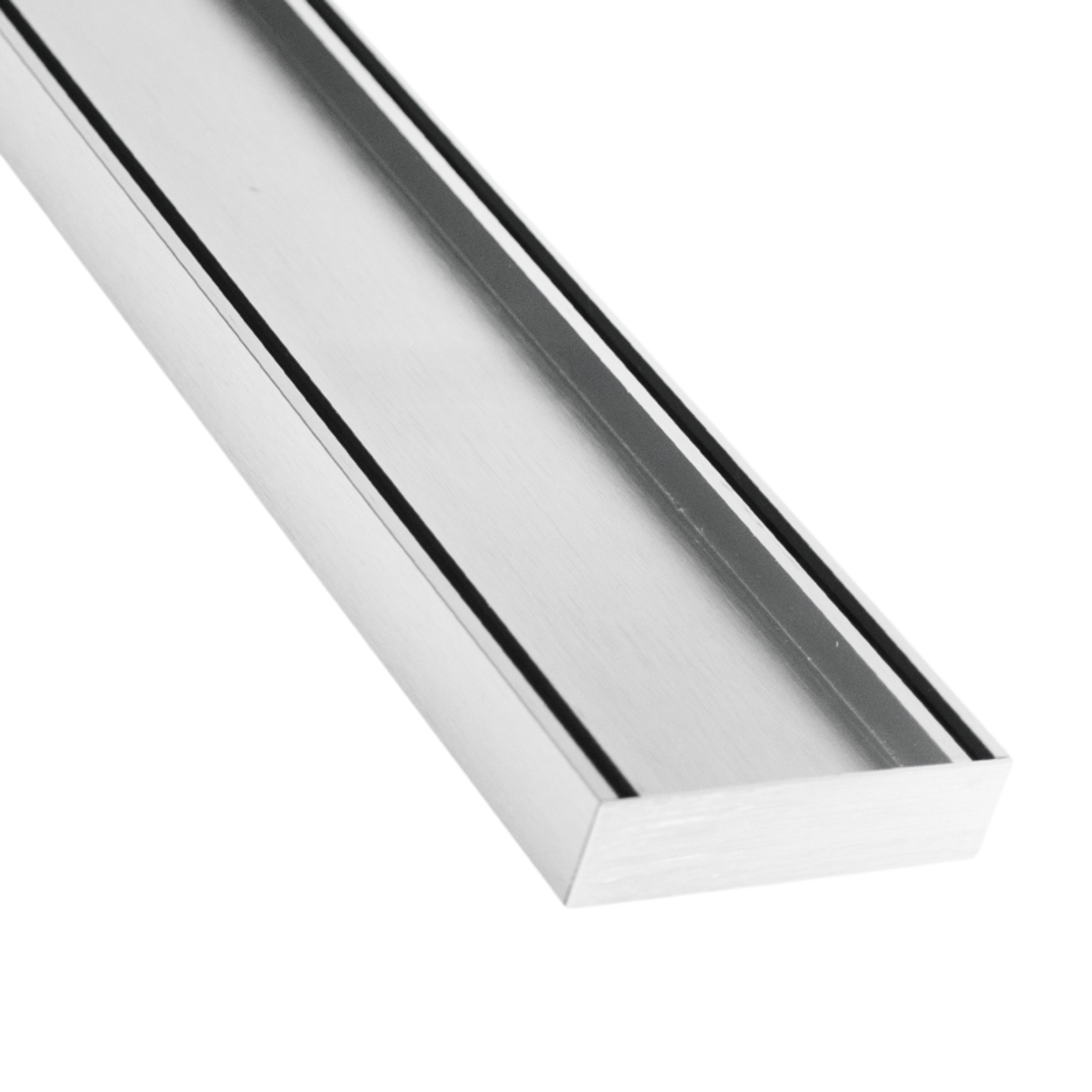

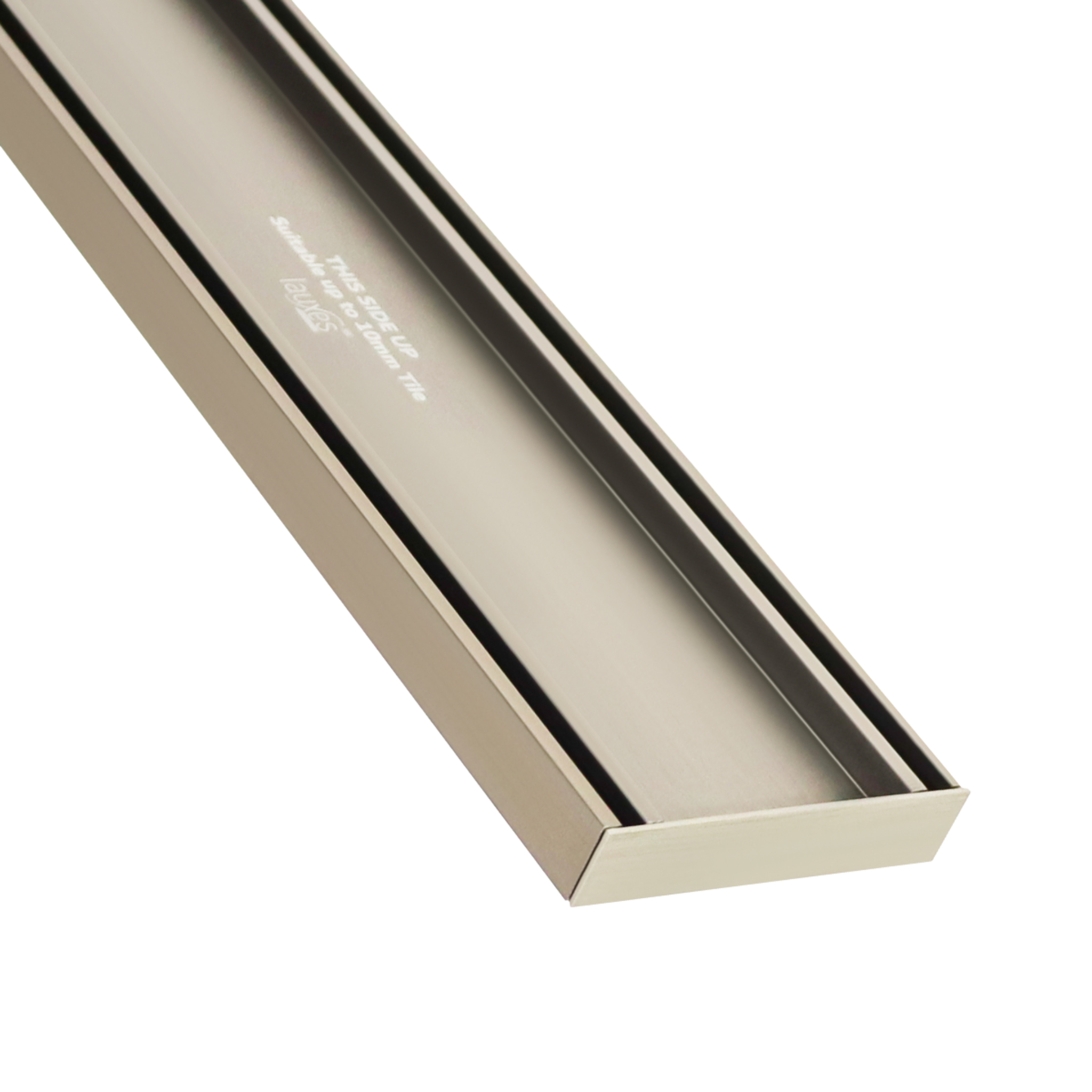

- Multiple colour finishes available to match project aesthetics
- Accommodates tile thickness up to 11mm for design continuity
- Effortless integration into new builds or renovations
When to Choose Lauxes Tile Insert 26 Grate Kit versus Alternatives:
- Choose this product over plastic or steel grates when: design finish, longevity, and corrosion resistance are essential
- Consider other options when: non-tiled or vinyl floors are used where tile inserts are not compatible
Trade-Specific Applications for Lauxes Tile Insert 26 Grate Kit:
For Builders and Carpenters:
- Integrate into screeded wet areas or outdoor tiled spaces with minimal effort
- Aluminium body cuts cleanly with a mitre saw or multi-tool onsite
- Provides a streamlined solution for large floor spans with continuous drainage
For Tilers:
- Supports up to 11mm tiles, making it ideal for ceramic, porcelain, or natural stone
- No need for additional brackets or sub-frame—lays directly into tile bed
- Ensures seamless finish and reduced water tracking through grout joints
For Waterproofers:
- Compatible with most waterproofing membranes; consult membrane supplier for sealing edges
- UV resistance makes it ideal for exposed areas in balconies and rooftops
- Design prevents water tracking, protecting membranes long-term
Application Information
- Required Tools: Aluminium cutting saw, measuring tape, silicone or waterproof sealant (if required)
- Trade-Specific Tips: Use masking tape on cut marks to reduce chipping during cuts; test-fit before tile bed installation
- Common Issues and Solutions: For uneven substrate, use packers or tile bed adjustments to maintain level installation
Storage and Shelf Life
- Storage Requirements: Store flat in a dry area, away from sharp impacts or bending
- Shelf Life Information: Indefinite if stored correctly
- Temperature Considerations: Withstands Australian climate extremes; no deformation or warping under heat
Certifications and Compliance
- Complies with NCC guidelines for water drainage
- Tested for UV stability and corrosion resistance to Australian standards
Frequently Asked Questions About Lauxes Grate Slimline Tile Insert 26 Grate Kit - 5600mm
Q: Can I cut the Lauxes Tile Insert Grate to fit a custom shower or balcony length?
A: Yes, the grate can be easily trimmed onsite using standard tools such as a mitre saw or multi-tool with a metal blade. This allows exact customisation to suit unique project dimensions with minimal waste.
Q: Will the grate rust or corrode over time in coastal areas?
A: No, the grate is constructed from anodised aluminium with a rustproof finish and is backed by a lifetime rustproof warranty. It’s suitable for use in salt-laden air environments and marine applications.
Q: How do I clean the grate once it's installed?
A: The Lauxes grate features an easy roll-out design. Simply lift or slide out the insert section for full access to the drainage channel, allowing quick and tool-free cleaning.
Q: Can this grate be used with all types of waterproofing membranes?
A: Yes, the anodised aluminium base tray is compatible with most common waterproofing systems. Always consult your membrane supplier for specific sealing requirements around the perimeter.
Q: Is it suitable for outdoor use in full sun exposure?
A: Absolutely. The UV-stabilised colour finish protects against fading and damage, even in harsh Australian sun conditions. It carries a 25-year fade warranty for peace of mind.
UseLauxes Grates Slimline Tile Insert 26 Grate Kit for:
- Flush-floor drainage in tiled showers and wet rooms
- Outdoor patios, balconies, and alfresco areas with weather exposure
- Poolside or spa areas where corrosion and slip resistance are important
- Commercial bathrooms and hotel fitouts requiring visual consistency and durability
Why Use Lauxes Grates Slimline Tile Insert 26 Grate Kit:
- Eliminates water tracking beneath tiles — protects membranes and prevents failures
- Custom outlet placement reduces plumbing rework — perfect for renovations
- Fade and corrosion resistant — perfect for Australia’s harsh UV and salt conditions
- Tool-free maintenance — fast roll-out access keeps cleaning time low
How to apply Lauxes Grates Slimline Tile Insert 26 Grate Kit:
- Measure and mark the desired length of the grate using a tape measure.
- Cut to size onsite with a mitre saw or oscillating multi-tool fitted with a metal blade. Use masking tape to protect the finish.
- Place grate into tile bed or pre-leveled channel. Ensure it sits flush with tile height for seamless drainage.
- Install waste outlet anywhere along the base tray, aligning with existing plumbing and securing per plumber’s instructions.
- If sealing is required, apply compatible silicone sealant around perimeter edges and allow to cure as per manufacturer’s specs.
- After tiling, lift the insert section to clean any construction debris. Reseat insert when complete.
Lauxes Grates Slimline Tile Insert 26 Grate Kit limitations:
- Not suitable for vinyl, timber, or epoxy-coated floors without tiles
- Requires appropriate support under tiled surfaces to maintain flush installation
- May require plumber coordination for outlet positioning in tight or slab-restricted spaces
Safety precautions when usingLauxes Grates Slimline Tile Insert 26 Grate Kit:
- Personal Protective Equipment: Wear gloves and safety goggles when cutting aluminium components
- Ventilation: Ensure proper ventilation if using adhesives or sealants during installation
- Handling: Avoid dropping or bending the grate—anodised coating can be scratched with sharp impacts
- First Aid: Treat cuts from sharp aluminium edges promptly; rinse with clean water and apply dressing
Lauxes Grates Slimline Tile Insert 26 Grate Kit can be used on the following substrates:
- tiles (ceramic, porcelain, natural stone)
- concrete screeds and preformed shower bases
- waterproofing membranes
- adhesive beds and thinset mortars
- grout and joint fillers
