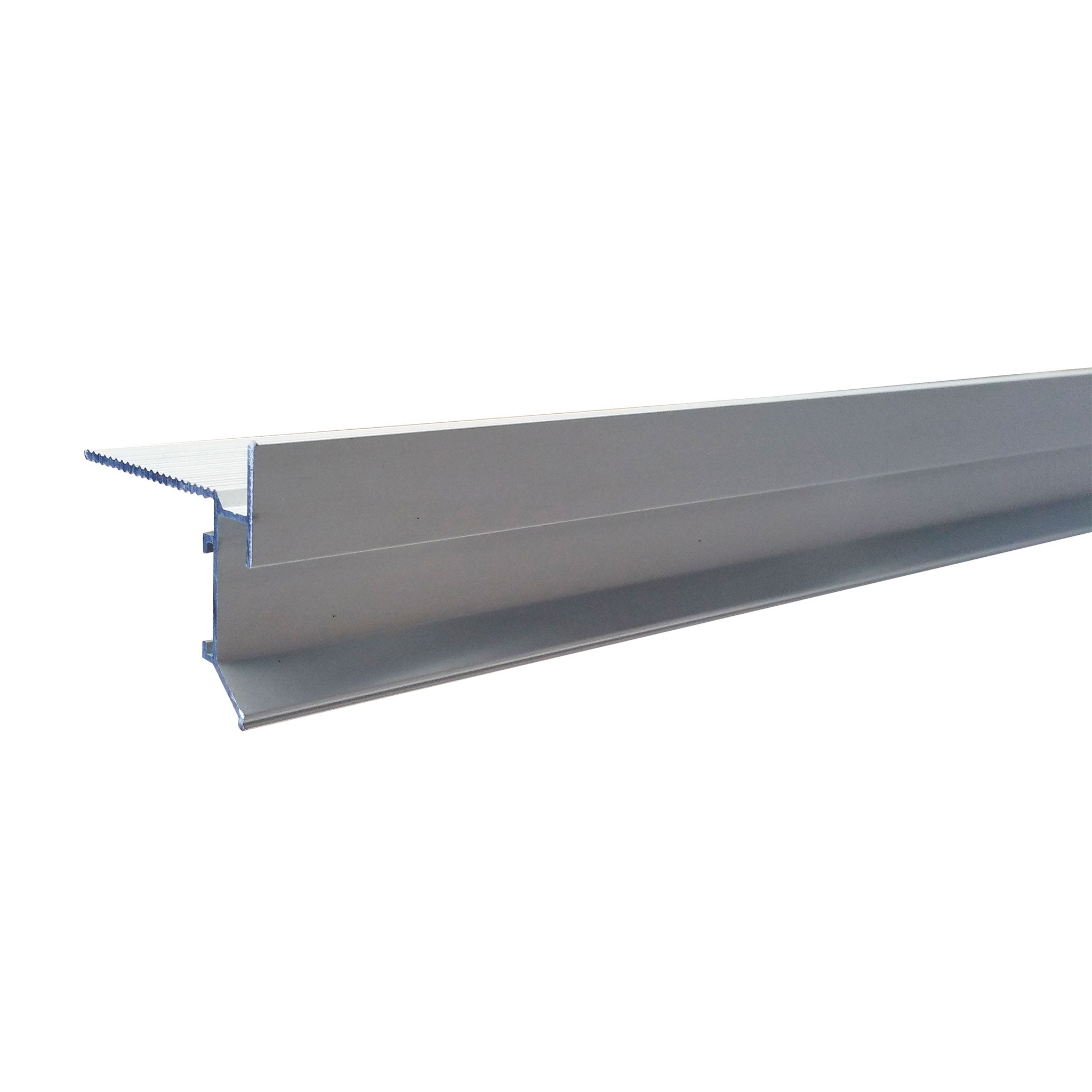

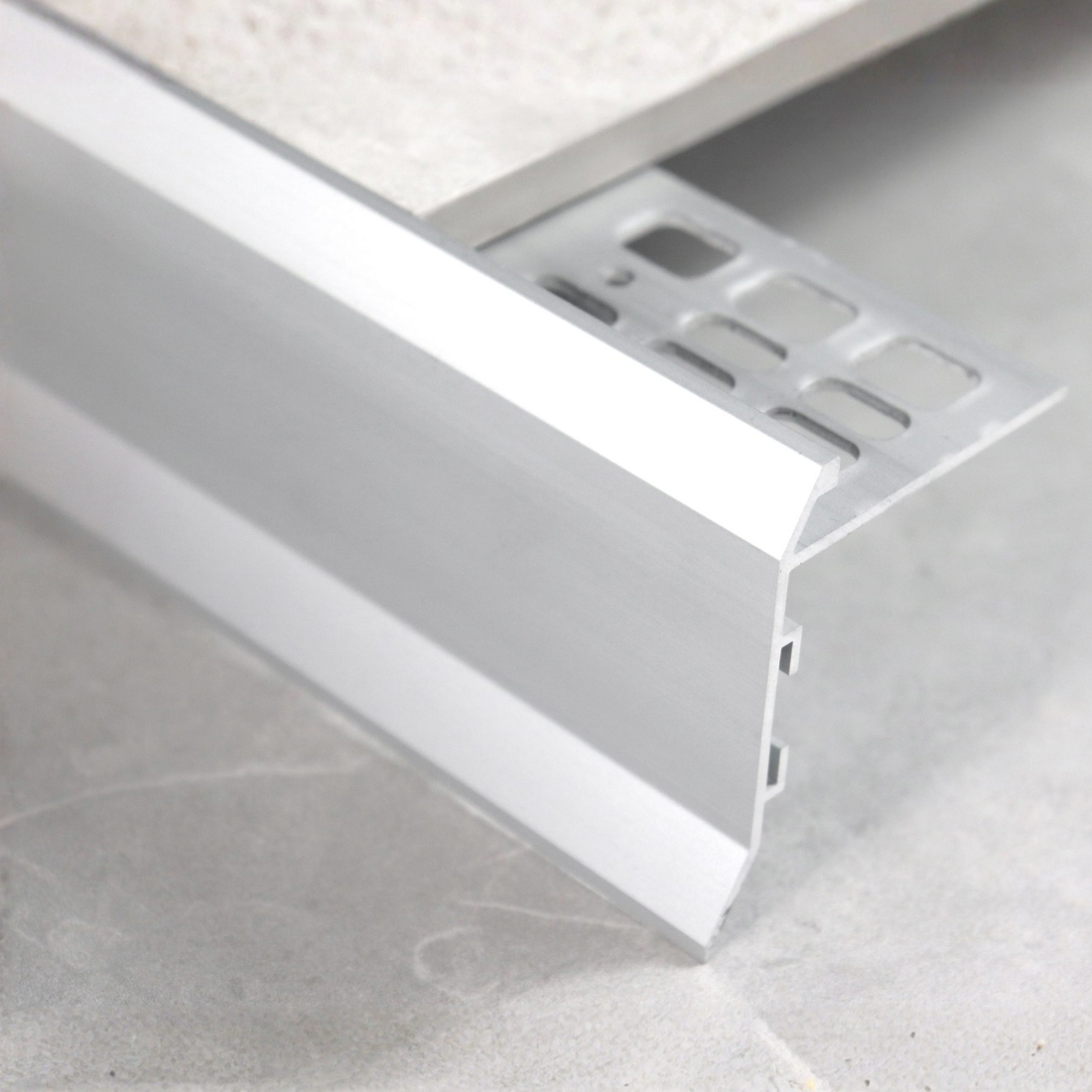

Why Choose Anodized Aluminum Balcony Drip Angle (12mm)
Use Anodized Aluminum Balcony Drip Angle (12mm) to shield balcony fascias from water damage while delivering a clean edge finish and directing runoff away from external cladding or render. This profile is purpose-built for durability in exposed environments, combining anodised aluminium corrosion resistance with a precision-angled drip lip that prevents water from tracking back onto the facade. It is the reliable choice for builders and waterproofers prioritising long-term moisture management and a sharp architectural transition.
Anodized Aluminum Balcony Drip Angle (12mm) Common Uses
Balcony Drip Trim is selected to protect balcony fascias, deliver a clean edge finish, and direct runoff away from external cladding or render. Its design integrates seamlessly with tiled or rendered balcony systems where moisture control and aesthetic continuity are critical.
- Protecting balcony fascias from water penetration and staining.
- Delivering a clean, continuous edge finish on tiled or rendered balconies.
- Directing runoff away from external cladding to preserve surface integrity.
- Reducing long-term maintenance by preventing grout washout and substrate deterioration.
Where Anodized Aluminum Balcony Drip Angle (12mm) Performs Best
This profile performs best on concrete screed and waterproofed substrates in outdoor balcony environments where corrosion resistance and precise water diversion are required. It is suited to residential, commercial, and multi-storey construction projects where membrane integrity at the slab edge must be preserved.
Coverage, Skin Time & Cure
The 12mm profile is sized for 12mm tile and adhesive assemblies, with lengths available in 3.0m and 5.0m units that should be stored flat to prevent kinking. Anodised aluminium provides inherent corrosion resistance, and the system supports long-term aesthetic integrity in exposed conditions.

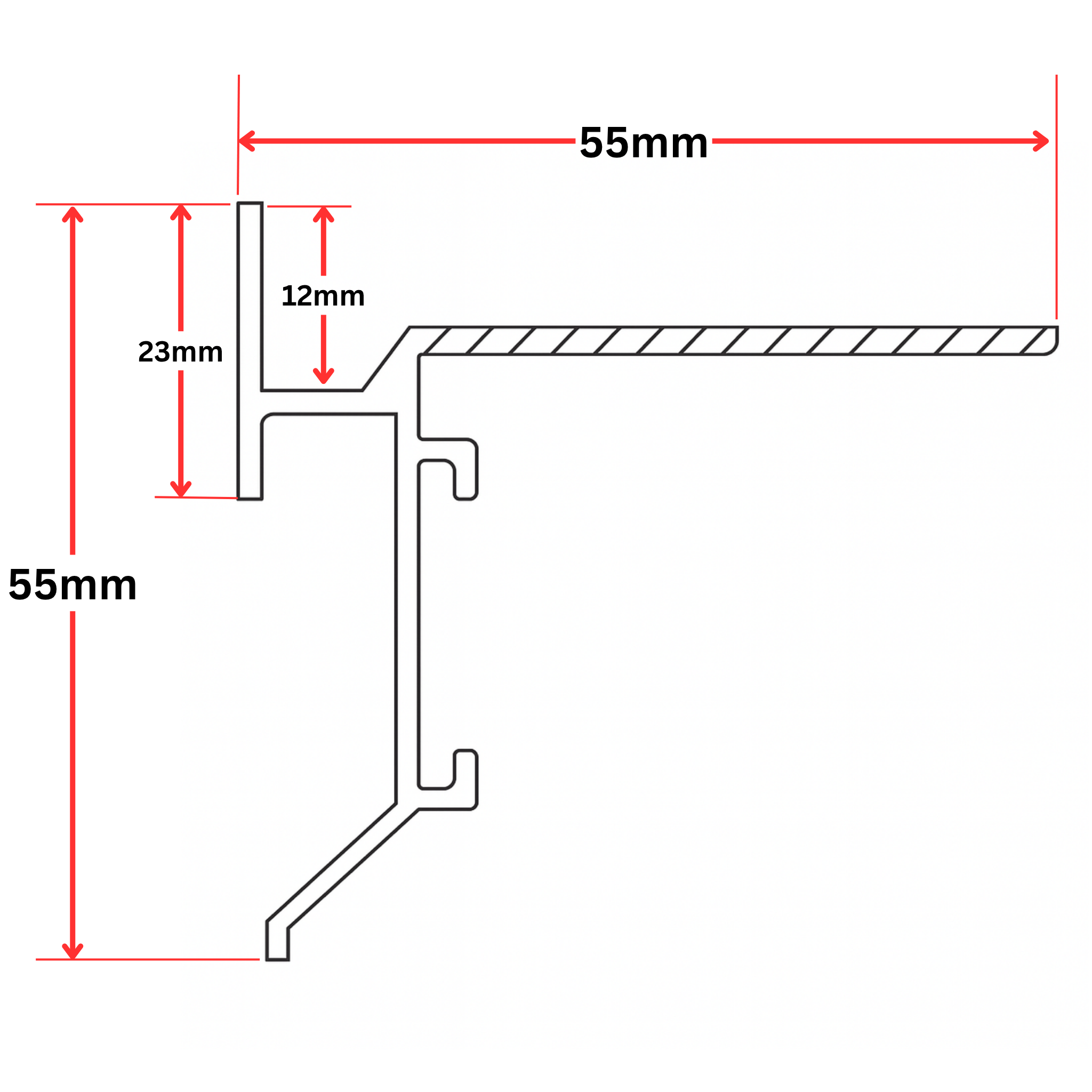

- Profile height: 12mm, matched to 12mm tile and adhesive assemblies.
- Available lengths: 3.0m and 5.0m; store flat to avoid kinking.
- Material: Anodised aluminium for corrosion resistance.
- Shelf life: Indefinite when stored in dry, non-corrosive conditions.
Surface Prep & Application
Substrate preparation is essential to ensure durable adhesion and membrane continuity. The surface must be dust-free and dry for adhesive-fixed applications, and the waterproof membrane should be fully cured before mechanical fixing of the trim. Proper alignment of internal and external corner profiles maintains a seamless edge detail.
- Ensure substrate is dust-free and dry before installing the trim edge.
- Allow waterproof membrane to fully cure before mechanical fixing.
- Cut trim to required length and secure with compatible adhesive or mechanical fixings.
- Position the drip lip facing outward and verify alignment with perimeter edges.
- When possible, lap the membrane over internal upturns to maintain continuity.
Best Practices for Using Anodized Aluminum Balcony Drip Angle (12mm)
Integrate the system with compatible adhesive or mechanical fixings and ensure membrane curing to avoid bond failure. Consider additional marine-grade coating in extreme coastal or high-salinity zones to preserve the anodised finish and long-term performance.
- Use only with fully cured waterproof membranes to prevent chemical interference.
- Select internal or external corner profiles for consistent perimeter detailing.
- In extreme coastal conditions, evaluate the need for supplementary marine-grade coating.
- Maintain a clean, dust-free substrate to ensure reliable adhesion.
Handling & Storage
Handle with attention to prevent kinking or bending, particularly with longer 5.0m lengths that must retain a clean architectural edge line. Appropriate storage preserves the anodised surface and dimensional stability of the profile.
- Wear appropriate PPE and ensure ventilation when cutting or modifying profiles.
- Store materials flat in a dry, non-corrosive environment to avoid deformation.
- Transport and handle 5.0m lengths carefully to prevent kinking.
- Dispose of offcuts in accordance with local regulations and site waste management protocols.
Frequently asked questions
How does the drip lip stop fascia staining?
The angled drip lip redirects water runoff away from the balcony edge. This prevents water from tracking along the underside of the slab, which stops staining and reduces long-term damage to fascias or cladding.
Can this trim be used with tiled balcony systems?
Yes, the trim is designed for tiled balconies. It provides a defined edge for screeds and tile systems, managing drainage efficiently, especially when installed with waterproofing membranes beneath.
Is anodised aluminium suitable for all outdoor environments?
Anodised aluminium provides corrosion resistance for standard outdoor applications. For extreme coastal zones, consider specific marine-grade coatings if required by project specifications.
Are corner pieces included with the linear trim?

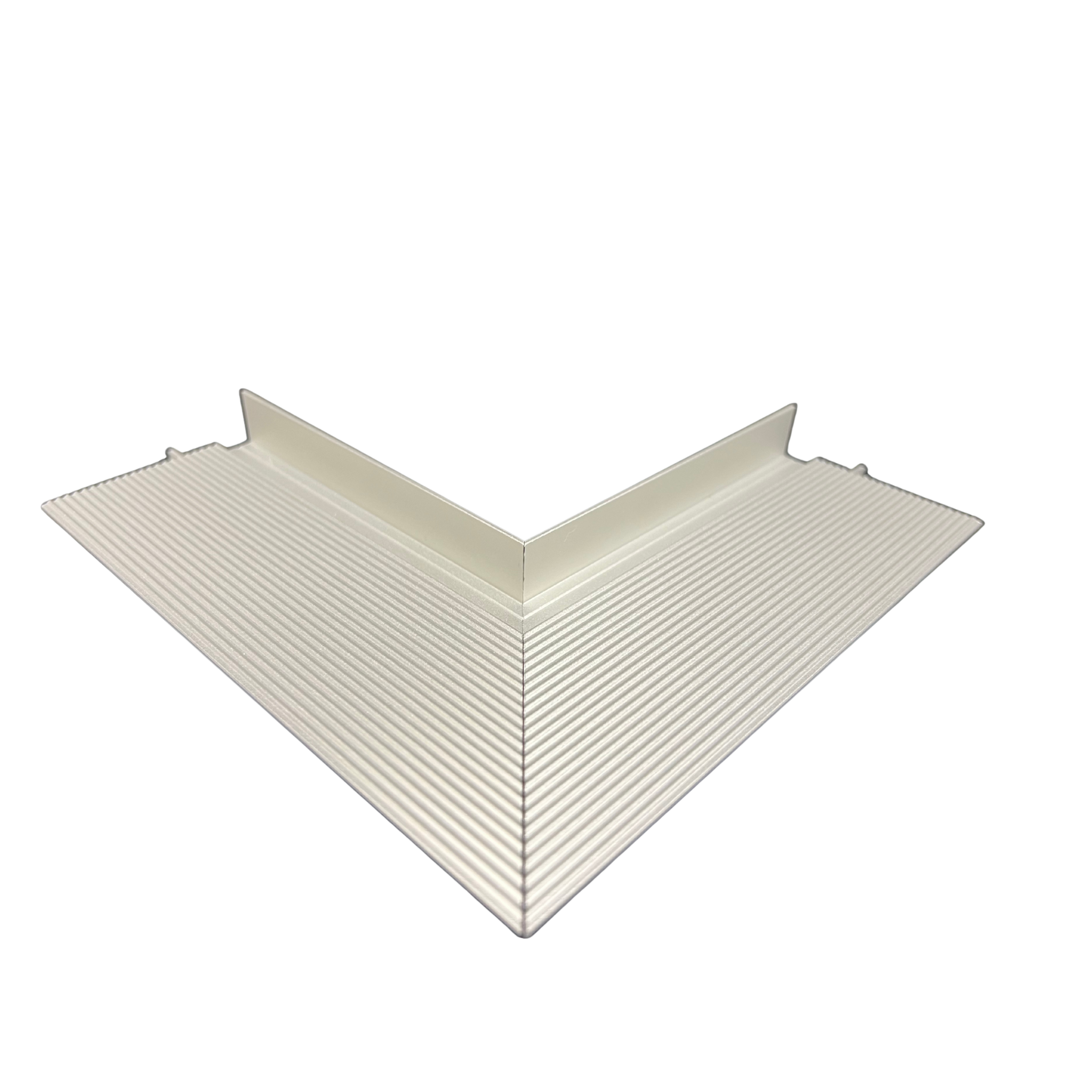

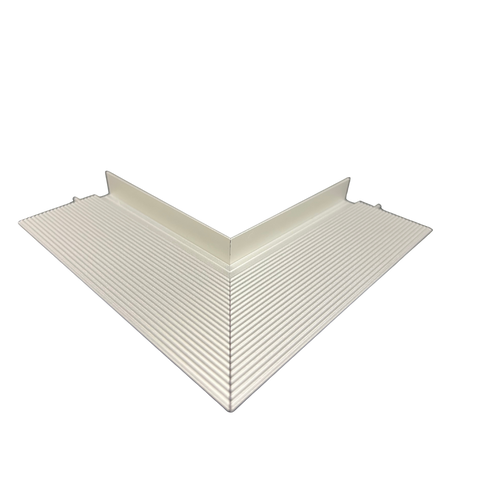

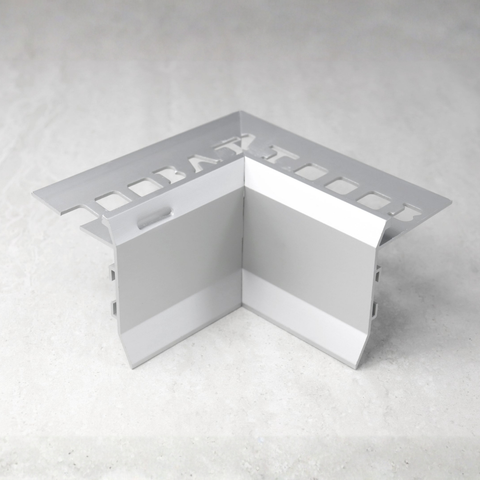

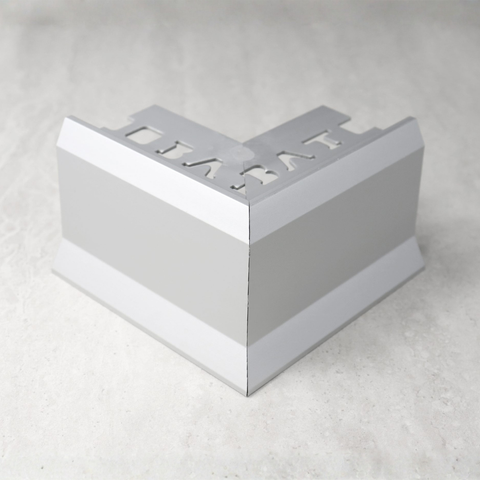

No, internal and external 90° corner pieces are sold separately. They are manufactured to match the linear profile, ensuring seamless changes in direction around balcony perimeters.
Applications and benefits
| Application | Key benefit | Primary trades |
|---|---|---|
| Balcony edge finishing | Prevents water tracking and eliminates fascia staining | Builders, Waterproofers, Tilers |
| Fascia protection | Stops water runoff erosion and keeps external surfaces clean | Waterproofers, Cladding Specialists |
| Tiled balcony drainage | Manages water efficiently from the tiled surface and screed | Tilers, Waterproofers |
| Perimeter detailing | Creates seamless and defined transitions around balcony edges | Tilers, Builders |
Applying Balcony Drip Trim System: Protocols & Best Practices
General Application Steps:- Preparation: Ensure the substrate is clean, dry, and stable. Align the trim with the edge line. For tiled systems, allow space for tile thickness.
- Application: Cut the trim to size. Secure with compatible adhesive or mechanical fixings, depending on substrate. Ensure the drip lip is facing outward and positioned correctly.
- Finishing: Press firmly into tile adhesive or mortar. When corner pieces are used, ensure joints are aligned to maintain continuity.
- Waterproofing: Where used with membranes, ensure the trim does not breach the waterproofing layer. Seal or tape where necessary.
For Waterproofers: Managing Balcony Edge Drainage
The Engineering Challenge: Preventing water ingress and fascia staining in exposed balconies without compromising waterproofing continuity.
The System-Based Solution with Balcony Drip Trim: The integrated lip deflects runoff, while corner trims ensure no weak points. No membrane penetration required when using edge adhesion.
Best Practice Note: Always install the trim after the membrane cures, and lap the membrane over internal upturns where possible.

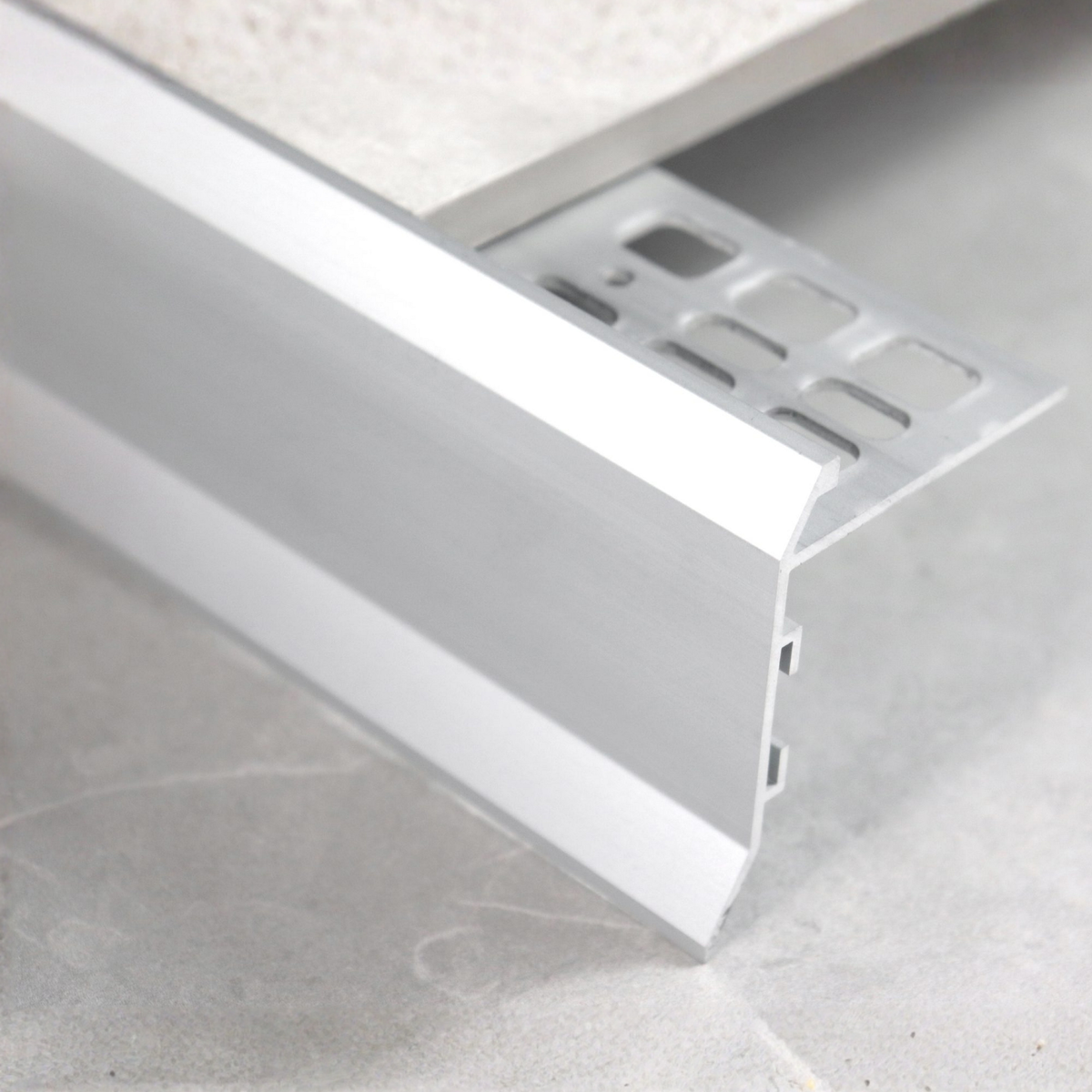

For Tilers: Clean Finishes at Balcony Perimeters
The Engineering Challenge: Exposed tile edges are prone to chipping, misalignment, and inconsistent grout lines.
The System-Based Solution with Balcony Drip Trim: Provides a crisp edge line for tile layout while preventing grout washout at external junctions.
Best Practice Note: Use internal/external corners to simplify layouts and reduce miter cuts.
Product limitations
- Not for: Structural load-bearing applications. This trim is a finishing and water management component only.
- Installation timing: Do not install before waterproofing membranes are fully cured. Premature installation can compromise the membrane system.
- Corner alignment: Ensure corner pieces are installed with correct alignment to prevent water trapping at transitions.
Safety and handling
Personal protective equipment
Wear gloves and eye protection when cutting aluminium trims to prevent injury from sharp edges or swarf.
Ventilation
No specific ventilation is required. This is an inert product during installation and in service.
First aid
- Cuts/Punctures: In case of injury from sharp edges, clean the wound immediately and apply an antiseptic dressing. Seek medical advice if necessary.
Storage and disposal
Store trim lengths flat, dry, and away from corrosive chemicals. This material has an indefinite shelf life under correct storage. Dispose of offcuts and waste according to local council regulations for aluminium recycling.
Substrate guide
Correct surface preparation is essential for mechanical fixing or embedding the drip angle securely.
Concrete screed
Surface prep: Ensure the screed is dust-free and fully dry before installation.
Primer: Not required.
Waterproof membrane
Surface prep: Allow the waterproof membrane to fully cure according to manufacturer specifications before mechanically fixing the trim.
Primer: Not applicable.
Tile adhesive bed
Surface prep: No specific surface preparation beyond ensuring the adhesive bed is fresh and wet.
Primer: Not required. Press the trim firmly into the wet adhesive.

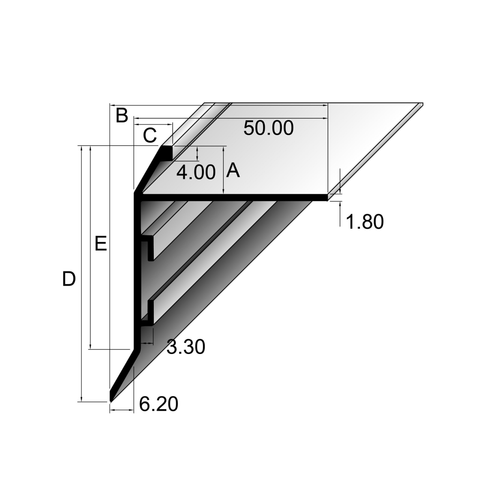

Anodized Aluminum Balcony Drip Angle (12mm) Physical Properties
| Property | Value |
|---|---|
| Material Type | Anodised Aluminium |
| Finish Options | Anodised |
| Dimensions | 12mm profile, 3.0m and 5.0m lengths |

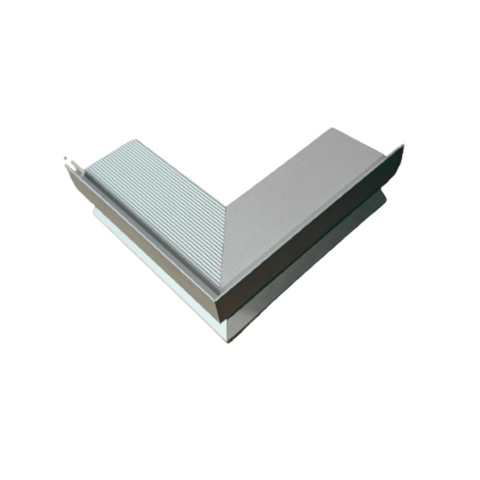

| Corner Profiles | Internal 90° (155mm x 155mm), External 90° (155mm x 155mm) |
| Installation Method | Mechanical fixing, Embedded in tile adhesive |
| Substrate Compatibility | Concrete screeds, Waterproof membranes, Tile beds |
| Shelf Life | Indefinite |
| Storage Conditions | Store flat, dry, away from corrosive chemicals |
