For wet area entries where the floor is bedded or screeded, Waterstop Doorline provides a clean, cohesive transition at the door sill. This door sill extrusion is designed to maintain a consistent look throughout the bathroom, matching the appearance of Waterstop Streamline showers while establishing a secure waterproof barrier at the entry boundary.
How it works

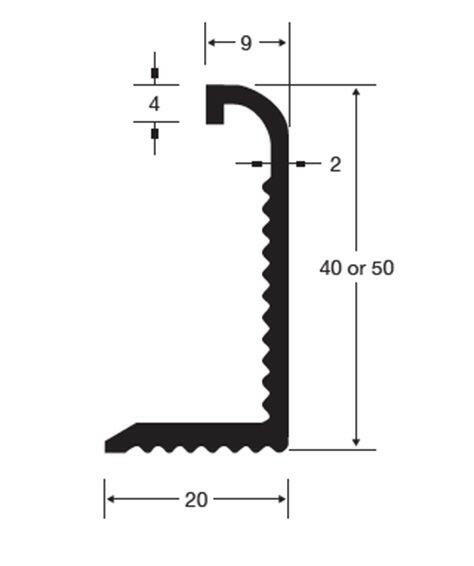

Waterstop Doorline integrates directly with the wet area's waterproofing and substrate layers through a dual-serrated extrusion design:
- Membrane adhesion: The internal vertical leg features a serrated surface, giving waterproofing membranes a high-friction profile to bond securely to the extrusion and prevent water bypass at the sill.
- Substrate bonding: The 20mm horizontal base leg is also serrated, providing a keying surface to securely glue the extrusion down to the floor substrate.
- Sill safety and protection: A 4mm external curve radius creates a safe, rounded bull-nose step-over profile. To prevent damage from trade traffic during construction, the external face of the vertical leg is pre-covered with protective tape.
Numbers that matter
- 40mm or 50mm vertical heights: Accommodates standard screed and bedding depths to ensure the sill barrier matches finished floor levels.
- 20mm horizontal leg width: Provides the correct surface area for adhesive contact with the subfloor.
- 2mm internal leg thickness: Delivers a rigid vertical profile that resists deflection under foot traffic.
- 1 metre or 3 metre lengths: Supplied in standard lengths that can be trimmed on site using a standard hacksaw.

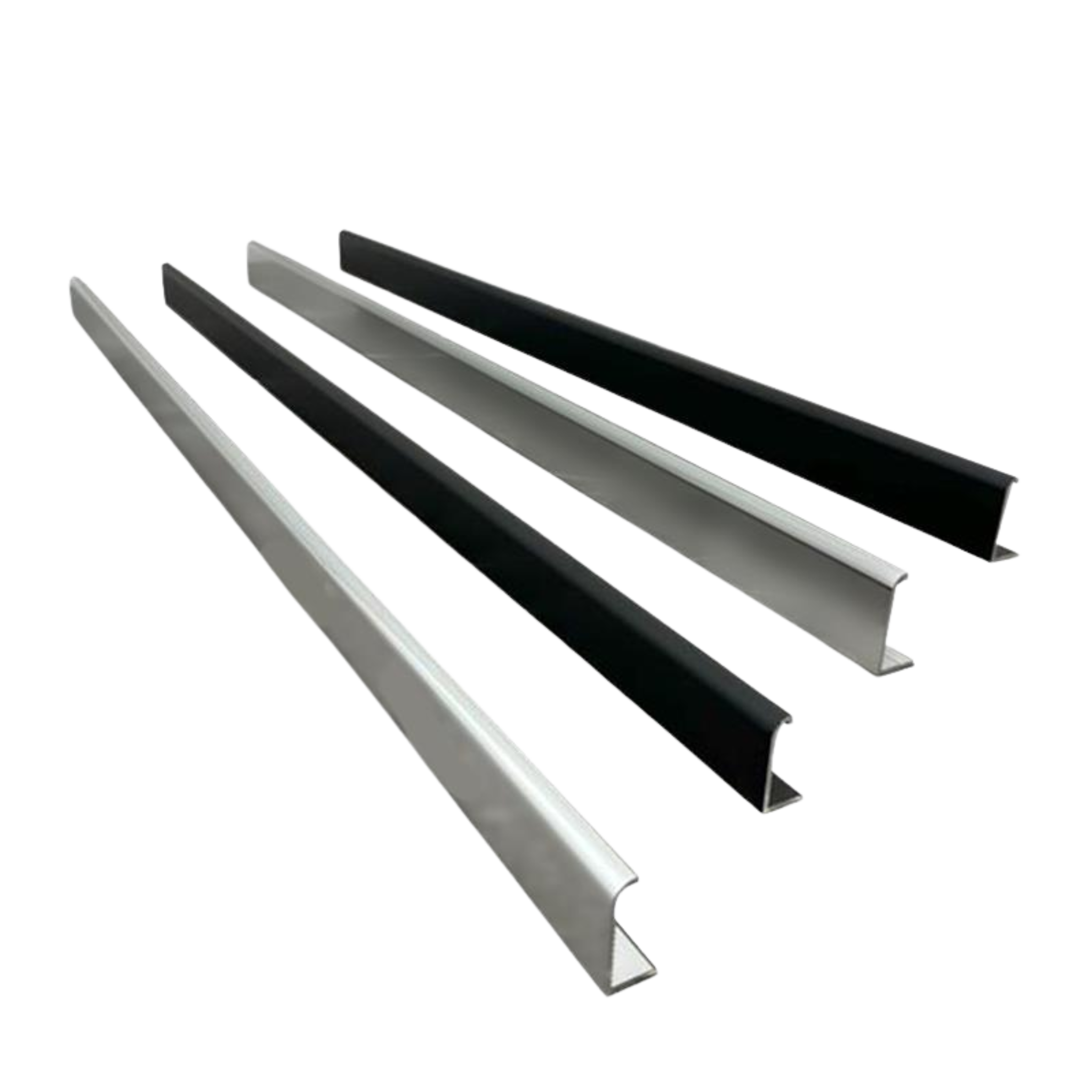

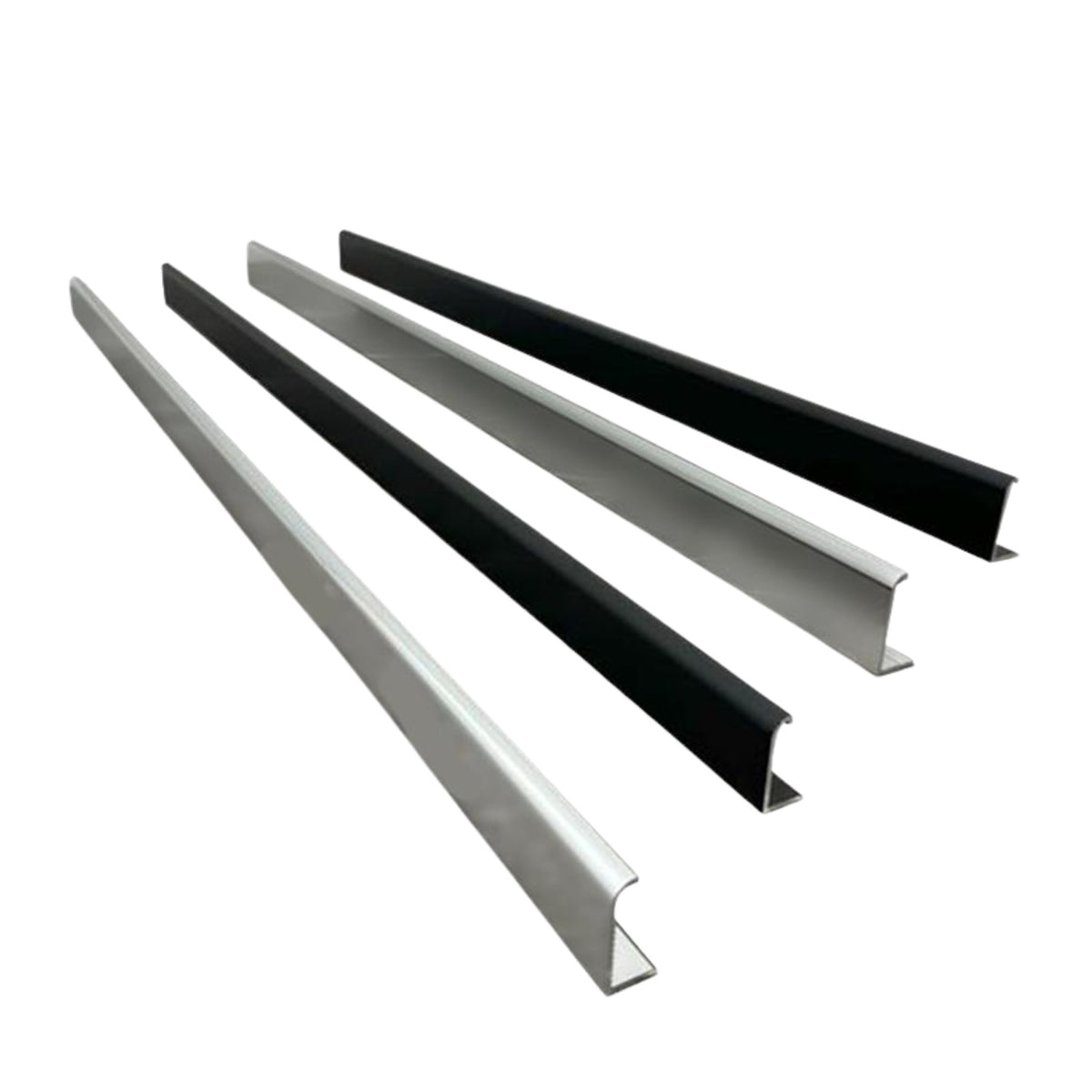

Size and finish options
Waterstop Doorline is supplied in packs of six in the following configurations:
- 40mm height: Available in 1 metre lengths (Code: 1000DL40) or 3 metre lengths (Code: 3000DL40).
- 50mm height: Available in 1 metre lengths (Code: 1000DL50) or 3 metre lengths (Code: 3000DL50).
- Finishes: Bright Silver and Matt Black.
What Doorline sizes are available?
The manufacturer offers 40 mm and 50 mm heights in 1 m and 3 m lengths. Standard lengths can be trimmed on site with a hacksaw.
Aluminium door-sill waterstop extrusion for maintaining the waterproofing boundary at a wet-area doorway where the floor is bedded or screeded.
The internal vertical leg is serrated to give the waterproofing membrane a keyed surface; the 20 mm horizontal leg has a serrated base for bonding to the floor substrate.
Available in 40 mm and 50 mm heights, in 1 m and 3 m lengths, with Bright Silver or Matt Black finishes.
Trim the Doorline to the required doorway length and bond the 20 mm serrated horizontal leg securely to the prepared floor substrate.
Keep the protective tape on the external face during construction.
Carry the waterproofing membrane onto the serrated internal vertical leg so the membrane terminates securely at the doorway waterstop.
Doorline is a wet-area door-sill extrusion, not a PVC concrete expansion-joint waterstop. No expansion-range, joint-width or hydrostatic-pressure rating is published for it.
Select the 40 mm or 50 mm height to suit the floor build-up before installation.
Standard 1 m and 3 m lengths can be trimmed on site with a hacksaw; protect the finished face during cutting and construction.
- Prepared wet-area floor substrates
- Waterproofing membranes bonded to the serrated internal leg
Waterstop Doorline Physical Properties
| Property | Value |
|---|---|
| Material Type | Aluminium |
| Finish Options | Bright Silver, Matt Black |
| Available Heights | 40mm, 50mm |
| Available Lengths | 1 metre, 3 metre |
| Installation Method | Adhesive bonded to substrate |
| Profile Type | Bullnose |
| Surface Detail | Serrated internal legs for membrane and adhesive grip |
| Cutting Method | Hacksaw |
| Application Substrates | Screeded floors, Concrete slabs, Fibre cement sheeting |
